About this plan

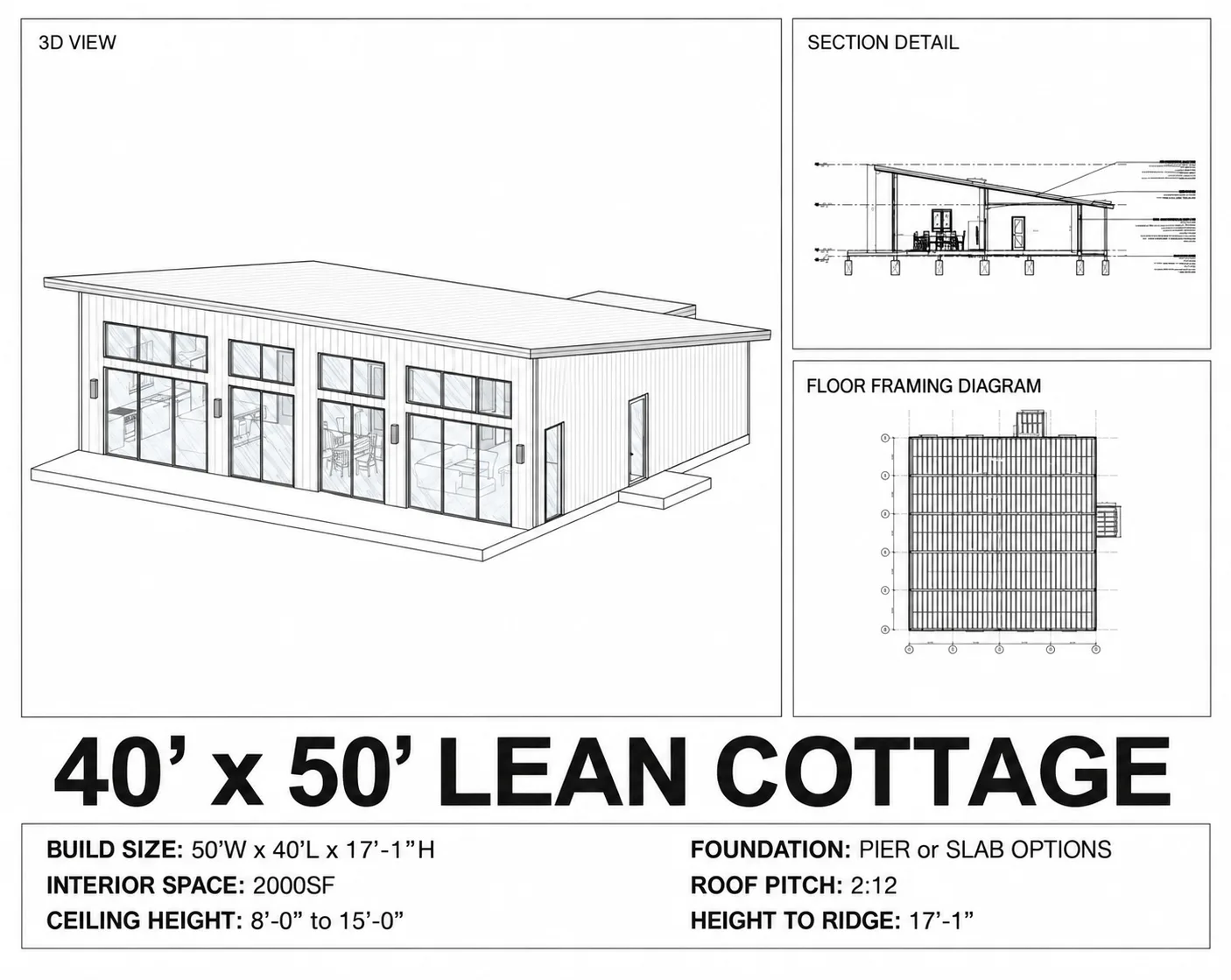

A 40 by 50 foot cabin under a single-slope lean roof, 2,000 square feet entirely on one level, with three bedrooms and two bathrooms. The 40x50 house plans arrive as a PDF plan set.

Rooms drawn to a real size

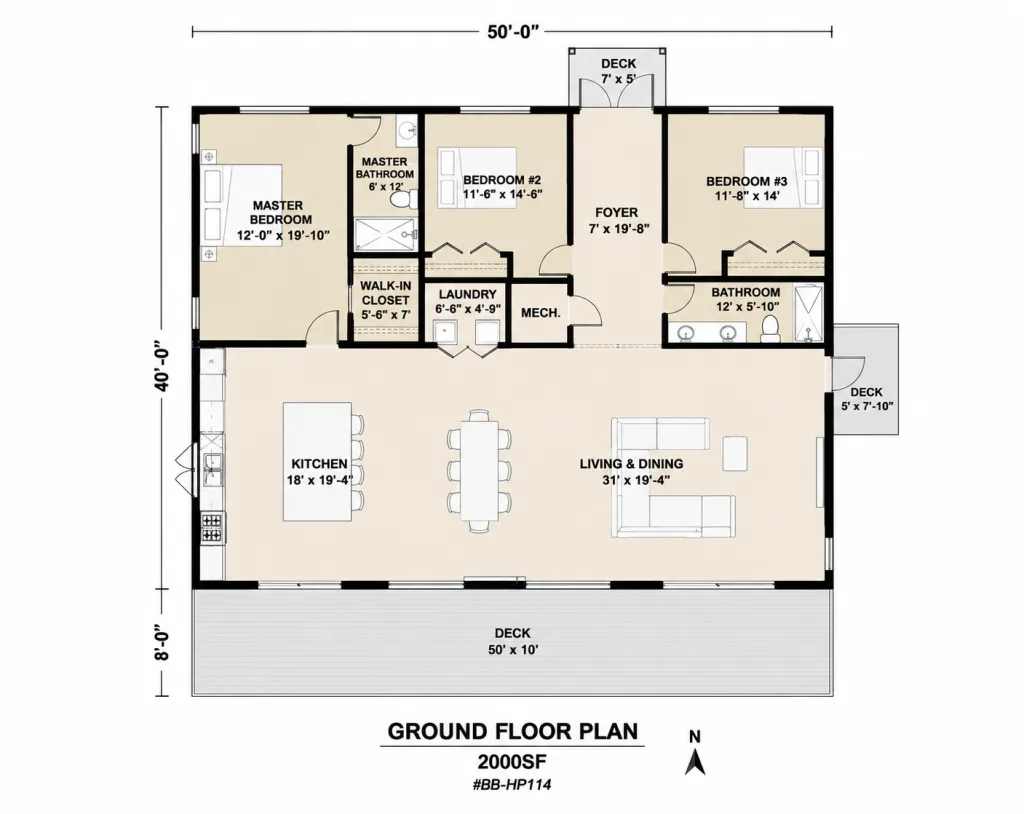

The master bedroom is 12 by 19 feet. The kitchen is 18 by 19. Those are the numbers worth checking against any other plan you are considering, because a room described as a master and a room that takes a king bed with furniture around it are frequently not the same thing.

An 18 by 19 foot kitchen is large enough to be the room the household actually lives in, which in a cabin is usually what happens regardless of how the plan intended it.

Single storey at 2,000 square feet

Putting 2,000 square feet on one floor needs a 40 by 50 footprint, and the payoff is a house with no stairs anywhere in it. The single-slope roof carries ceilings from eight feet up to fifteen across the living space.

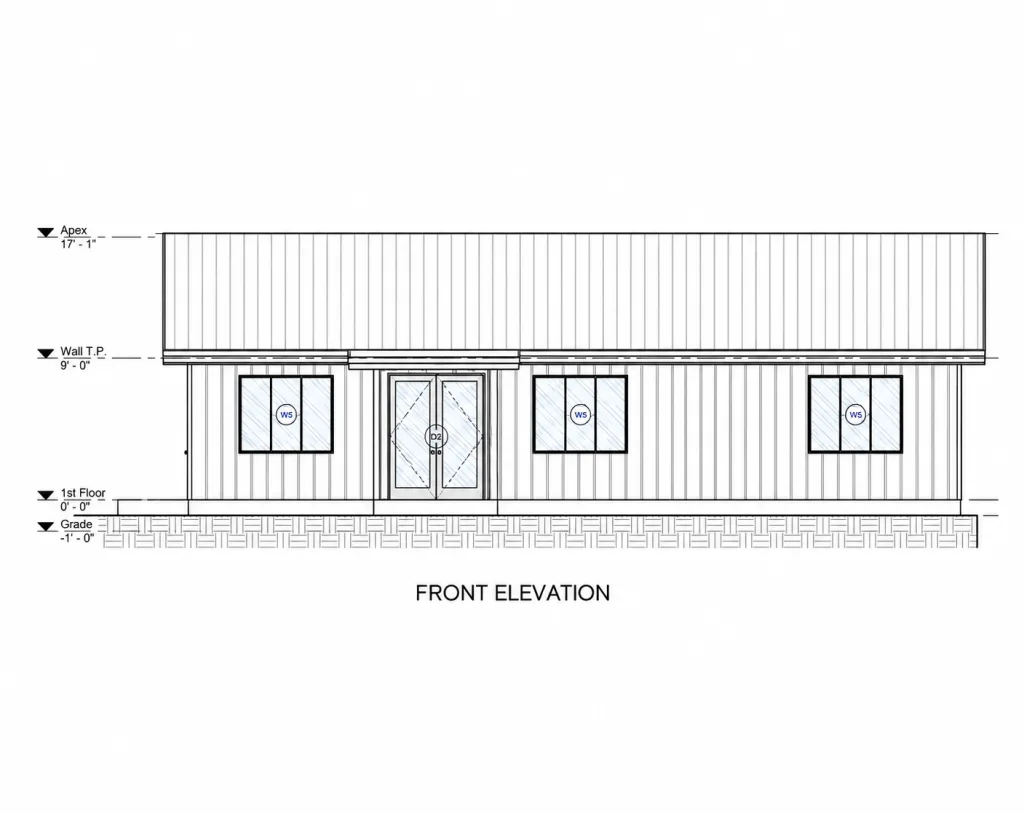

The overall build height is 17 feet 1 inch, which is remarkably low for a house this size and clears height limits that would rule out a two-storey equivalent.

Outside and foundation

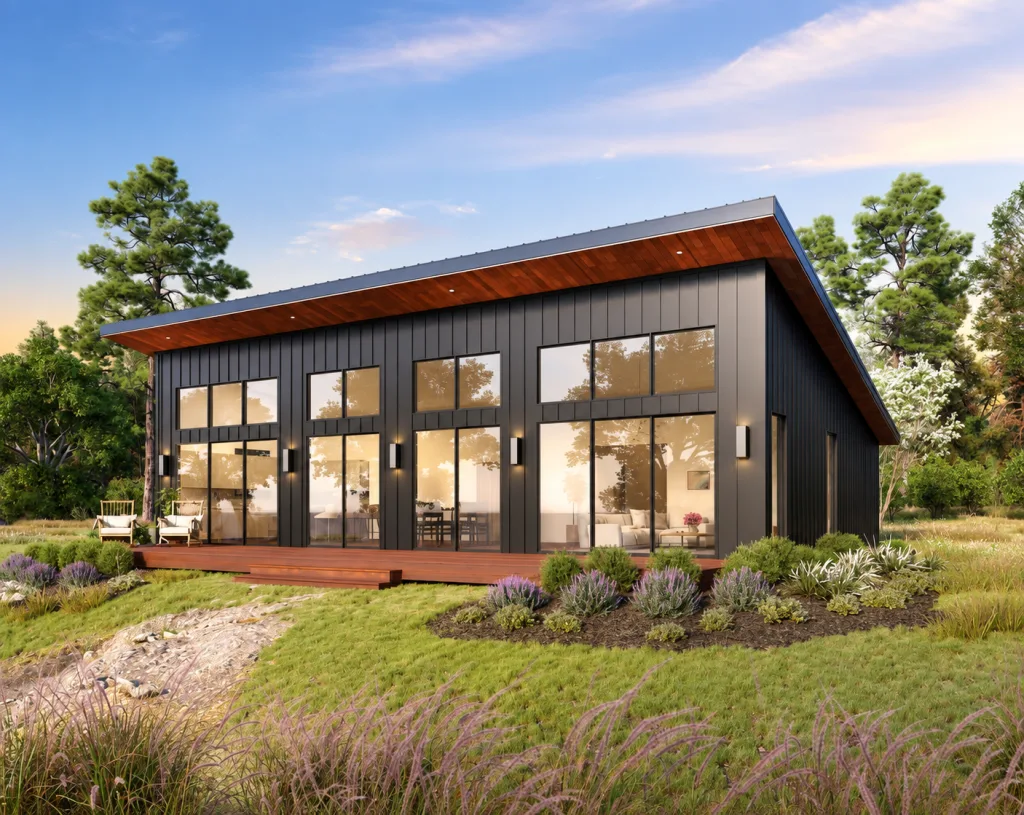

A large front deck runs the tall elevation. Washer and dryer space is drawn in. The foundation is slab or concrete pier.

What you get

The download is a full construction set: dimensioned floor plans for each level, exterior elevations on all four sides, building sections and construction details, a foundation plan with floor, wall and roof framing layouts, an electrical layout, window and door schedules, and a roof plan with pitch and overhang dimensions. It arrives as a PDF once payment is confirmed.

Before you build

Permit requirements depend on your location, site and proposed construction. Your building department determines which drawings, calculations and professional approvals are required, and local review may identify changes needed to the plans. Some departments ask for an engineer’s stamp or a foundation designed around your own soil report; arrange these with a local engineer.

Other plans to compare

If these 40x50 house plans are not quite the right size, browse every design in Cabin, or compare this one with Modern Lean Cabin, 32×38 and Alpine Cottage, 32×32. You may also want to look at Twin Gable Modern Scandinavian Barn.

Common questions

Can I modify these 40x50 house plans?

Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.

How are the drawings supplied?

Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.

Are there limits on printing?

No. Print whatever your builder, your subcontractors and your permit submission need.
