Plan specifications
2,045Sq. ft
4Bedrooms
2.5Bathrooms
2-carGarage
1Story
81' 6"Width
39' 4"Depth
SlabFoundation shown
About this plan
Twin Gable is a single-storey Scandinavian barn of 2,045 square feet on an 81 by 39 foot footprint, four bedrooms and two and a half bathrooms, organised under two vaulted gables rather than one. These scandinavian barn house plans come as a complete PDF set.
Why two gables
Splitting the roof into twin gables gives the building a waist. It breaks up what would otherwise be a very long single ridge, and internally it separates the two living areas without needing a wall between them, because each one sits under its own vault. The result is a house that reads as two connected volumes instead of one long shed.
How the plan works
Between kitchen and dining there is a pantry and a servery. The servery is the detail worth noticing: it is a benchtop you can leave loaded without it being part of the kitchen, which is what keeps an open plan tidy when you are hosting.
A wood-burning fireplace anchors the main living area. There is a study nook, a utility room and a two-car garage.
Structure and foundation
Drawn for a slab foundation with footing details included.
What you get
A complete construction set, supplied as a PDF:
- Dimensioned floor plans for each level, drawn to scale
- Exterior elevations on all four sides
- Building sections and construction details
- Foundation plan with floor, wall and roof framing layouts
- Electrical layout
- Window and door schedules
- Roof plan with pitch and overhang dimensions
Before you build
Permit requirements depend on your location, site and proposed construction. Your building department determines which drawings, calculations and professional approvals are required, and local review may identify changes needed to the plans. Some departments ask for an engineer’s stamp or a foundation designed around your own soil report; arrange these with a local engineer. Print as many copies as your builder and your permit application require.
Other plans to compare
If these scandinavian barn house plans are not quite the right size, browse every design in Modern, or compare this one with Lean Cabin, 24×36 and Modern house plans.
Common questions
Can I modify these scandinavian barn house plans?
Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.
How are the drawings supplied?
Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.
Are there limits on printing?
No. Print whatever your builder, your subcontractors and your permit submission need.
Rough build-cost guide
$306,750 - $409,000

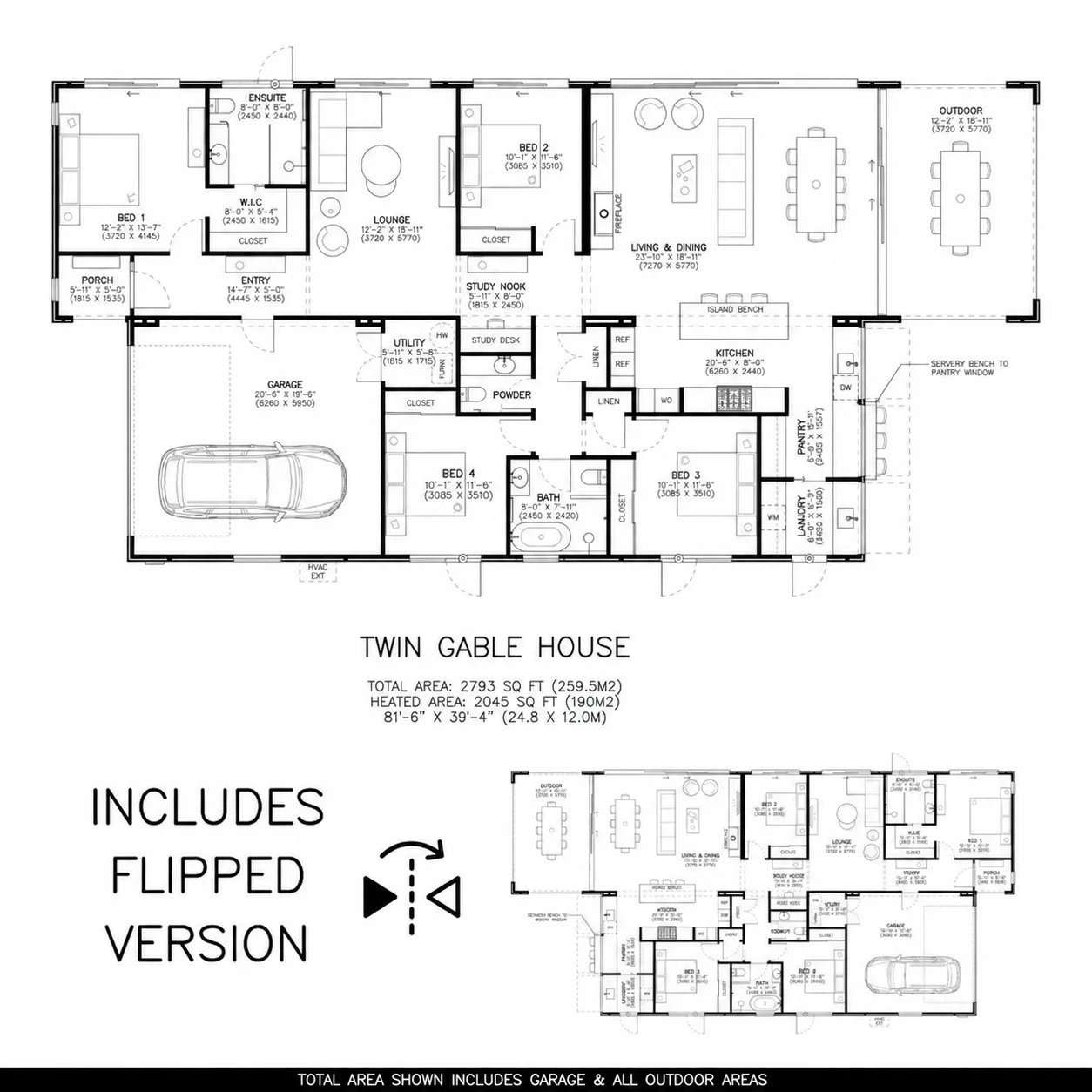

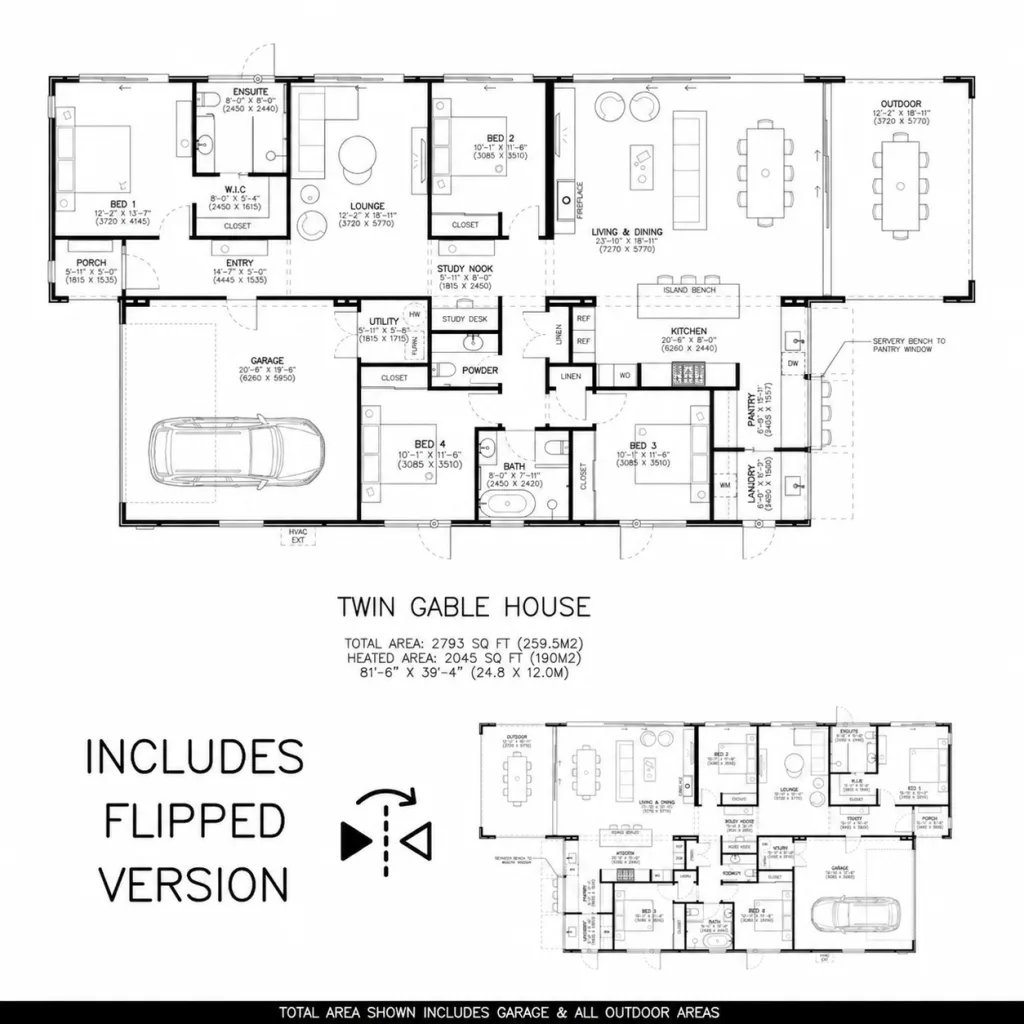

A simple $150-$200 per sq ft × 2,045 sq ft. Real costs depend on your location, site and finishes. Read the cost guideFloor plans
100%
Preview image. Use + and − to zoom, then scroll to move around. The purchased PDF contains the full-size, dimensioned drawings.
What you get with this plan
- Heated area
- 2,045 sq ft
- Overall size
- 81' 6" wide × 39' 4" deep
- Units
- Imperial (feet and inches)
- Foundation shown
- Slab (other foundation types are a modification)
- PDF Set
- Printable PDF construction drawings
- CAD Files package
- Editable DWG drawings of the same set (+$150)
- Paper size
- Not yet listed for this plan
- Licence
- Single build. Licence terms
- Delivery
- Digital PDF plan set. Delivery policy
Sheet list
The sheet list for this plan has not been published yet. Email support@planbarn.com and we will send it before you buy.
Not included
- Site plan, and mechanical (HVAC), plumbing or structural engineering calculations unless listed in the sheet list above
- Engineer or architect stamps. Many areas require local review or a stamp before a permit is issued
- Changes for your site, climate or local code. We quote modifications free of charge
Your building department decides what is needed for a permit. Check local requirements before you build.
Plan features
Twin Vaulted Gables
Pantry & Servery
Two Living Areas
Wood-Burning Fireplace
Study Nook
Utility Room
2-Car Garage
Questions about this plan
What is included?
The specifications, file formats and licence are listed under “What you get with this plan”. Where the sheet list is not yet published, email us and we will send it before you buy.
Can I modify the plan?
Often, yes. Ask for a free quote and we will confirm whether the change can be made for this plan; the written quote gives the price and an estimated completion time before you commit. Plan modifications
How is the plan delivered?
As a digital PDF plan set. Our delivery policy explains how and when files are made available. Delivery policy
Will it meet my local building code?
Codes are set locally. Your building department, and in many areas a local engineer or architect, must review the plans; some areas require a stamp. Budget for this before you build.
Can I get a refund?
Digital files cannot be returned. Where cancellation rights apply you can normally cancel within 14 days, unless you agreed for supply to begin immediately. If a file is faulty, incomplete or does not match this page, we repair or replace it, and refund you where that is not possible. Returns and Refunds Policy
Can I build it more than once?
The standard licence covers one build. Email us for a multi-build licence. Plan licence
Do I need an account?
No. Guest checkout is available; your receipt and download link go to the email address you enter.
Not ready to buy yet?
Three things you can do right now, all free.
Get a modification quoteMove a wall, add a garage, flip the plan. Tell us the change and we will confirm whether it can be made and quote it at no cost.Request a free quote →Check what it costs to buildCurrent per-square-foot construction costs, broken down by region and finish level.Read the cost guide →Ask a real questionNot sure this plan suits your lot, your budget or your local code? Ask before you spend anything.Ask us →
Plan #54524

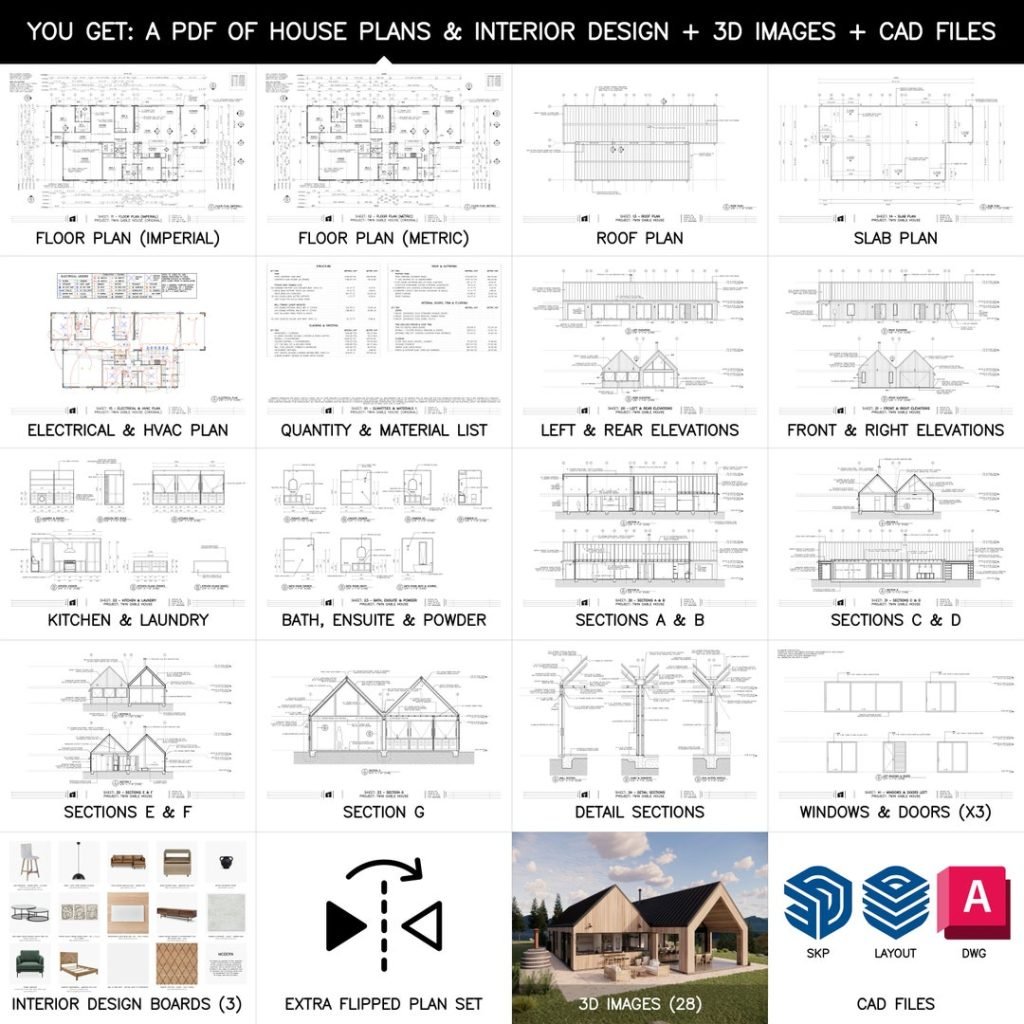

What you actually receive
