Cabin1 / 5
Exterior and interior renderings are illustrative. Furniture, landscaping and finishes are not part of the plan set unless listed.
Plan specifications
1,400Sq. ft
3Bedrooms
2Bathrooms
2Stories
28' 0"Width
46' 0"Depth
Concrete PiersFoundation shown
About this plan
A 28 by 46 foot A-frame, 1,400 square feet with three bedrooms and two bathrooms: 1,025 square feet on the ground floor and a 375 square foot loft above. The roof reaches 29 feet 3 inches. The full set of 28x46 large a-frame cabin plans downloads straight after payment.
An A-frame at full house scale
Twenty-nine feet of roof height is what separates this from a cabin. The gable end is tall enough to glaze as a genuine wall of glass, and the internal volume runs the full height of the building rather than being interrupted by a ceiling.
The ground floor is held at eight feet, so the bedrooms and bathrooms are normal rooms rather than spaces squeezed under a slope. That is the hardest thing to achieve in an A-frame and the reason the footprint is 46 feet deep.
The loft
At 375 square feet, the loft is a floor rather than a platform. It looks down into the double-height space and has room for sleeping and sitting both.
Structure and foundation
The roof is rated to 95 pounds per square foot of snow load, which the steep pitch helps considerably with, since most of it slides off before it can accumulate.
Drawn for concrete piers, which suit sloping or wooded ground and keep excavation to a minimum. There is both a deck and a patio.
What you get

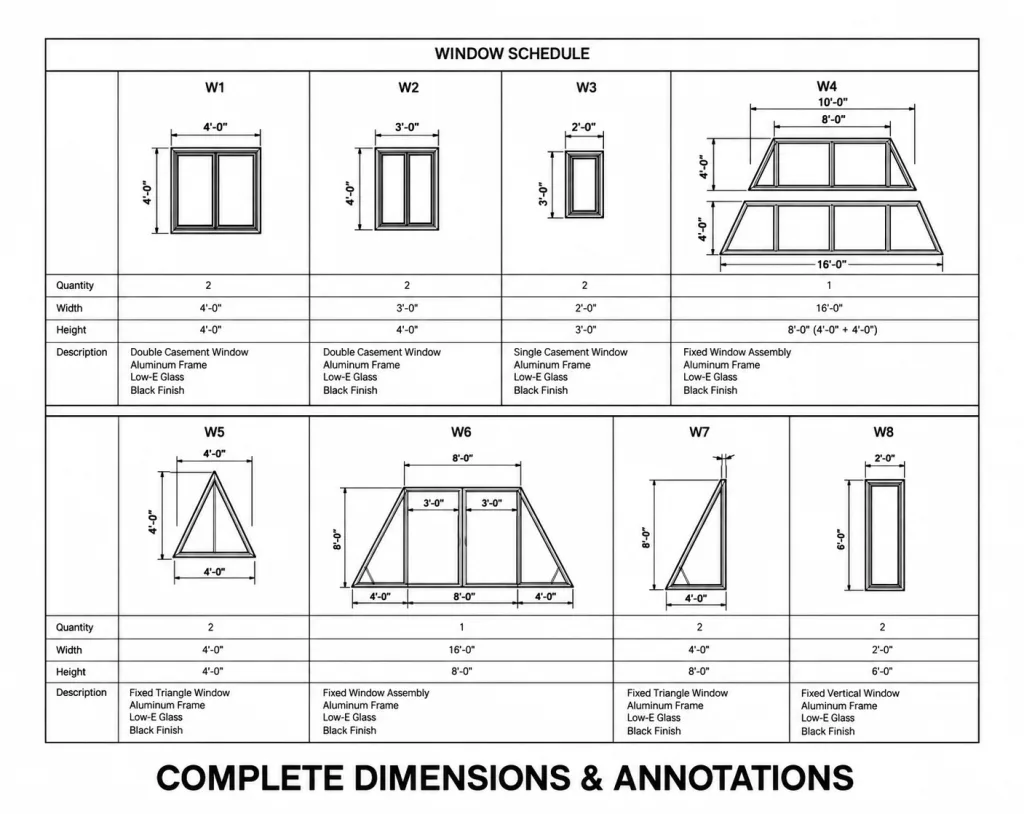

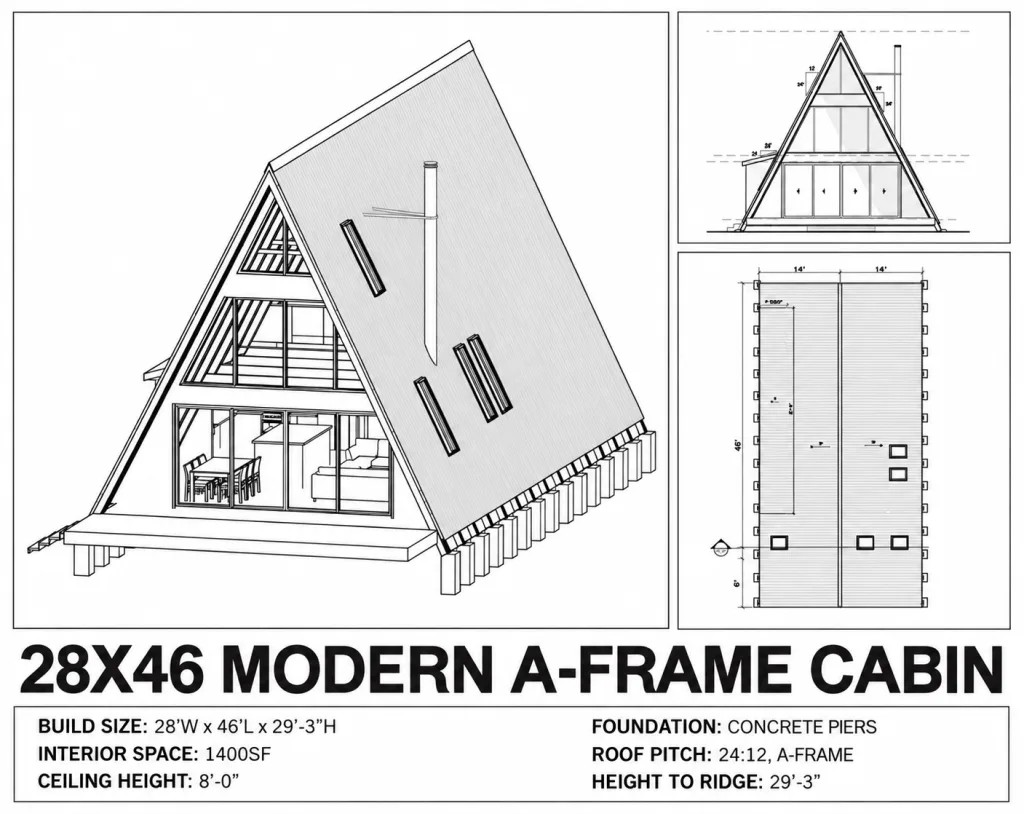

The download is a full construction set: dimensioned floor plans for each level, exterior elevations on all four sides, building sections and construction details, a foundation plan with floor, wall and roof framing layouts, an electrical layout, window and door schedules, and a roof plan with pitch and overhang dimensions. It arrives as a PDF once payment is confirmed.
Before you build
Permit requirements depend on your location, site and proposed construction. Your building department determines which drawings, calculations and professional approvals are required, and local review may identify changes needed to the plans. Some departments ask for an engineer’s stamp or a foundation designed around your own soil report; arrange these with a local engineer.
Other plans to compare
If these 28x46 large a-frame cabin plans are not quite the right size, browse every design in A-Frame, or compare this one with Modern A-Frame Cabin, 24x36 and Modern A-Frame Cabin, 24×36. You may also want to look at Long Creek Lake House, 35×35.
Common questions
Can I modify these 28x46 large a-frame cabin plans?
Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.
How do I receive the drawings?
Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.
How many copies can I print?
As many as the build needs, for your contractor, your subcontractors and your permit application.
Rough build-cost guide
$210,000 - $280,000

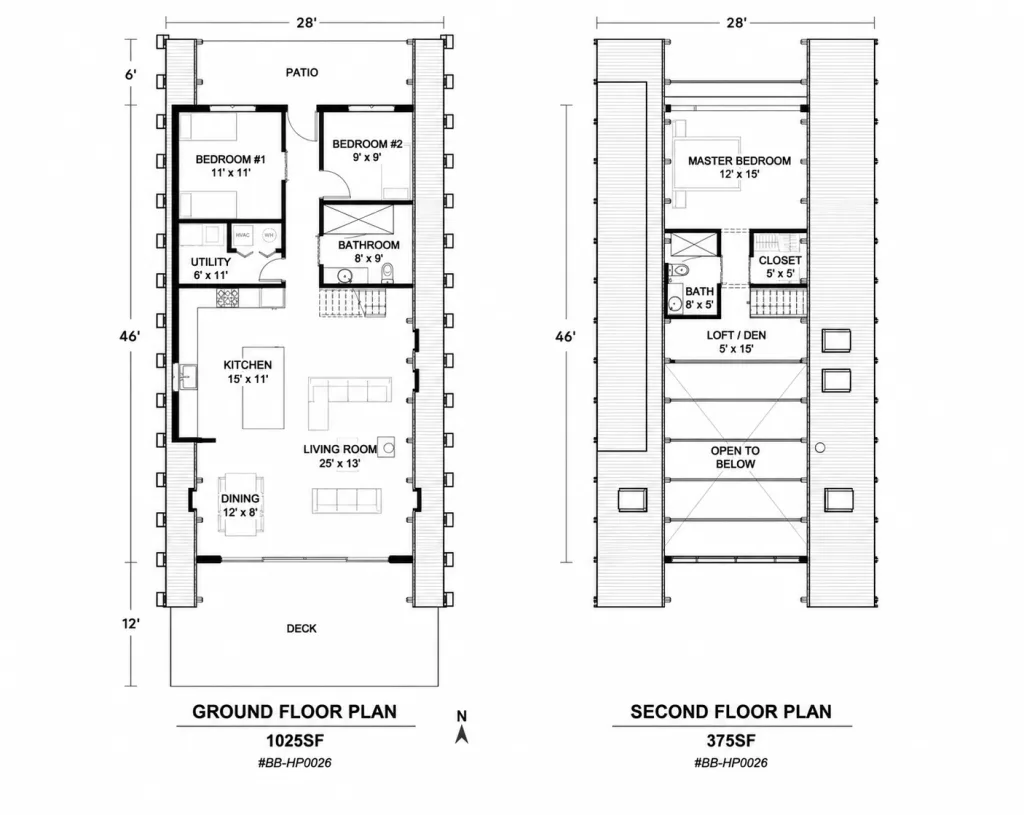

A simple $150-$200 per sq ft × 1,400 sq ft. Real costs depend on your location, site and finishes. Read the cost guideFloor plans
100%
Preview image. Use + and − to zoom, then scroll to move around. The purchased PDF contains the full-size, dimensioned drawings.
What you get with this plan
- Heated area
- 1,400 sq ft
- Overall size
- 28' 0" wide × 46' 0" deep
- Units
- Imperial (feet and inches)
- Foundation shown
- Concrete Piers (other foundation types are a modification)
- PDF Set
- Printable PDF construction drawings
- CAD Files package
- Editable DWG drawings of the same set (+$150)
- Paper size
- Not yet listed for this plan
- Licence
- Single build. Licence terms
- Delivery
- Digital PDF plan set. Delivery policy
Sheet list
The sheet list for this plan has not been published yet. Email support@planbarn.com and we will send it before you buy.
Not included
- Site plan, and mechanical (HVAC), plumbing or structural engineering calculations unless listed in the sheet list above
- Engineer or architect stamps. Many areas require local review or a stamp before a permit is issued
- Changes for your site, climate or local code. We quote modifications free of charge
Your building department decides what is needed for a permit. Check local requirements before you build.
Plan features
29 ft 3 in Roof Height
1,025 sq ft Ground Floor
375 sq ft Upper Loft
8 ft Ground Ceilings
95 PSF Snow Rated
Deck & Patio
Questions about this plan
What is included?
The specifications, file formats and licence are listed under “What you get with this plan”. Where the sheet list is not yet published, email us and we will send it before you buy.
Can I modify the plan?
Often, yes. Ask for a free quote and we will confirm whether the change can be made for this plan; the written quote gives the price and an estimated completion time before you commit. Plan modifications
How is the plan delivered?
As a digital PDF plan set. Our delivery policy explains how and when files are made available. Delivery policy
Will it meet my local building code?
Codes are set locally. Your building department, and in many areas a local engineer or architect, must review the plans; some areas require a stamp. Budget for this before you build.
Can I get a refund?
Digital files cannot be returned. Where cancellation rights apply you can normally cancel within 14 days, unless you agreed for supply to begin immediately. If a file is faulty, incomplete or does not match this page, we repair or replace it, and refund you where that is not possible. Returns and Refunds Policy
Can I build it more than once?
The standard licence covers one build. Email us for a multi-build licence. Plan licence
Do I need an account?
No. Guest checkout is available; your receipt and download link go to the email address you enter.
Not ready to buy yet?
Three things you can do right now, all free.
Get a modification quoteMove a wall, add a garage, flip the plan. Tell us the change and we will confirm whether it can be made and quote it at no cost.Request a free quote →Check what it costs to buildCurrent per-square-foot construction costs, broken down by region and finish level.Read the cost guide →Ask a real questionNot sure this plan suits your lot, your budget or your local code? Ask before you spend anything.Ask us →
Plan #76380
What you actually receive
Inside the Large Modern A-Frame Cabin, 28x46 plan set
A walk-through of the kind of drawings in the set. Your builder can price from the PDF set; your building department decides what else a permit needs.
- Printable PDF construction drawings
- Editable DWG files available as the CAD Files package
- Digital PDF plan set
