About this plan

These craftsman bungalow plans come as a complete PDF set. Tulip Cottage is a craftsman bungalow of 1,224 square feet, single storey, with three bedrooms and two bathrooms. What makes it read far larger than the number suggests is that the vaulting is not confined to the living room.

Vaulted throughout

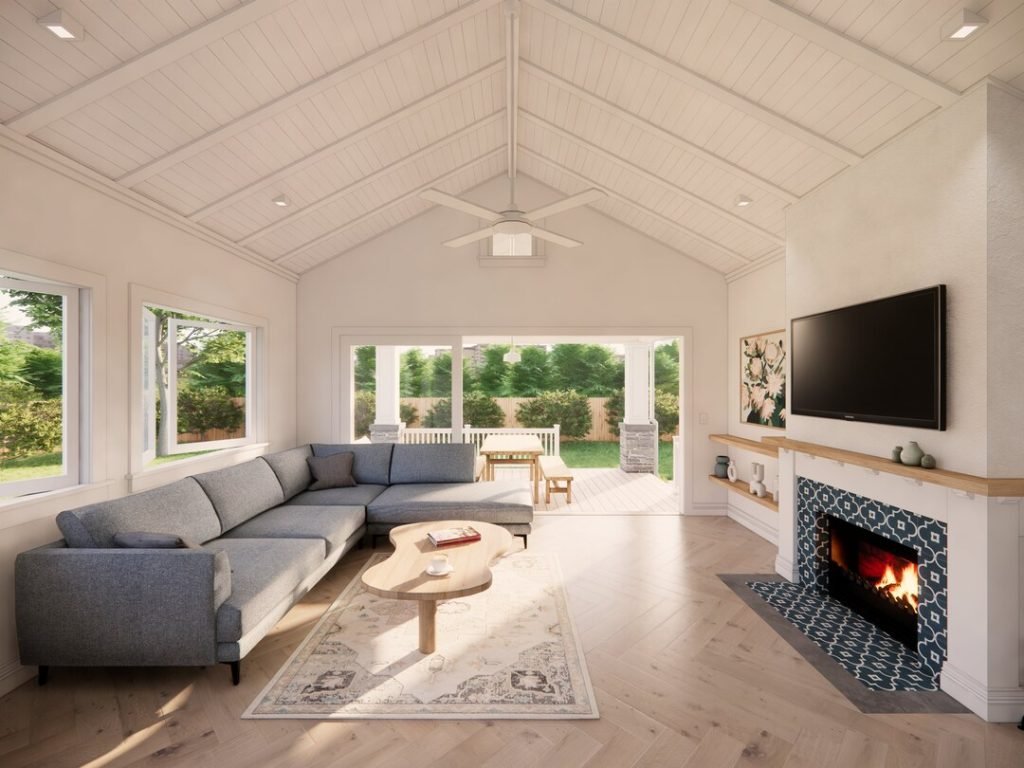

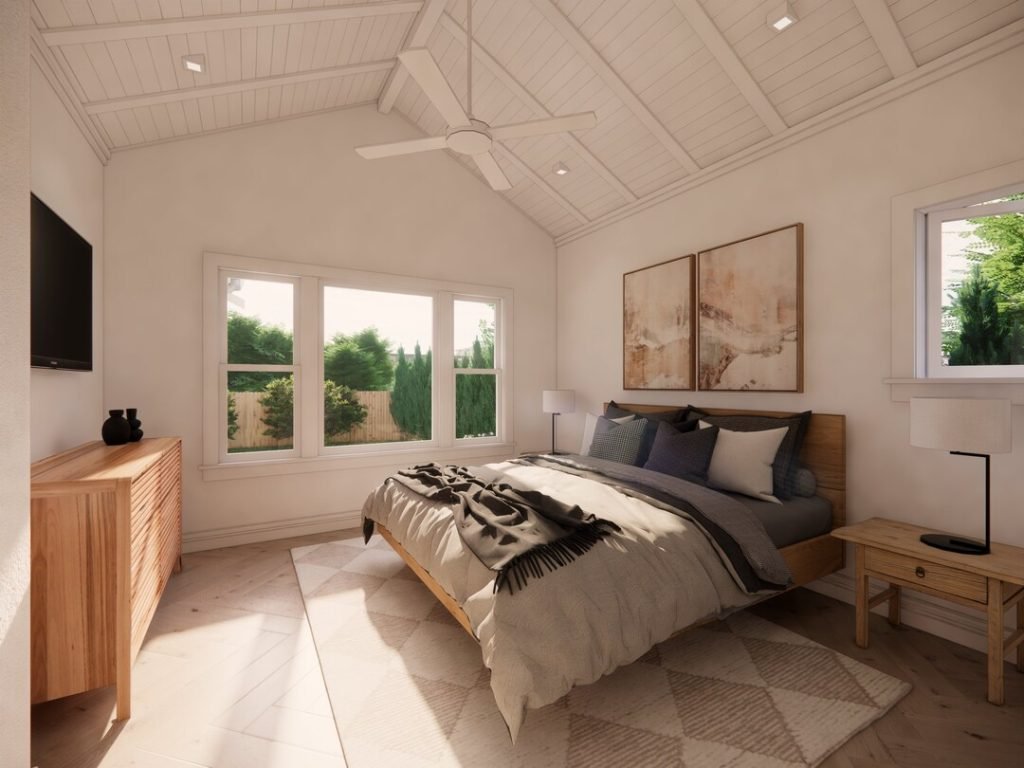

The living room is vaulted, the primary bedroom is vaulted, and the covered outdoor living area is vaulted as well. Most plans at this size vault one room and leave the rest at eight feet, which produces one impressive space and several that feel low by comparison. Carrying the ceiling height through means the house does not have a best room.

How the plan works

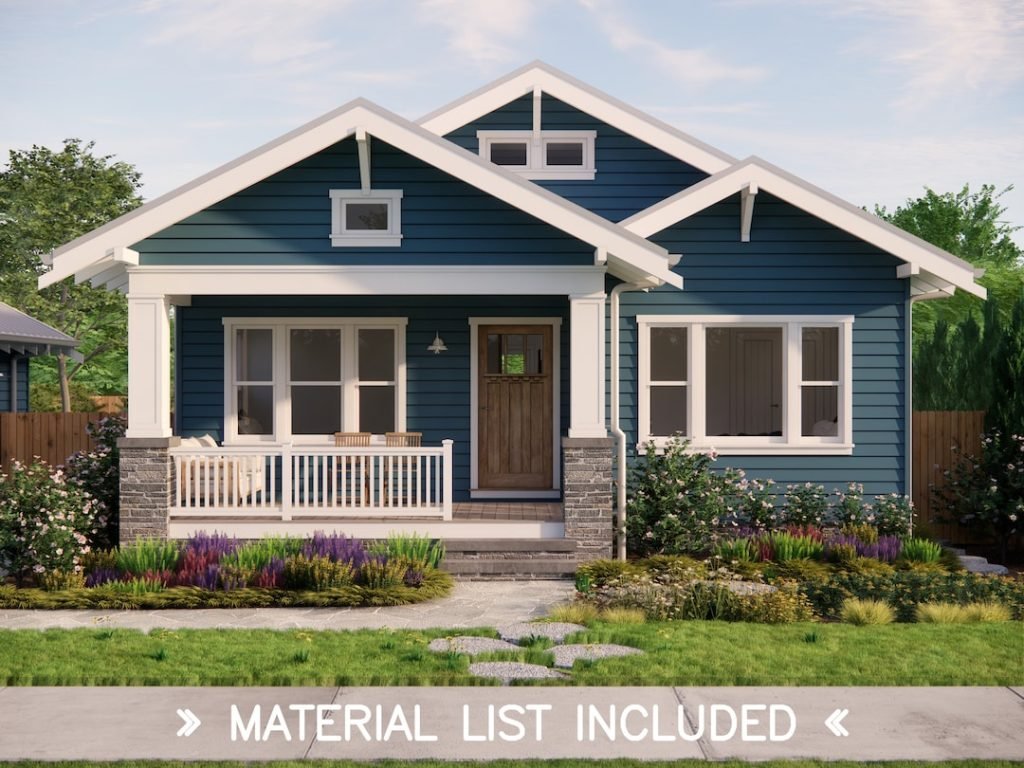

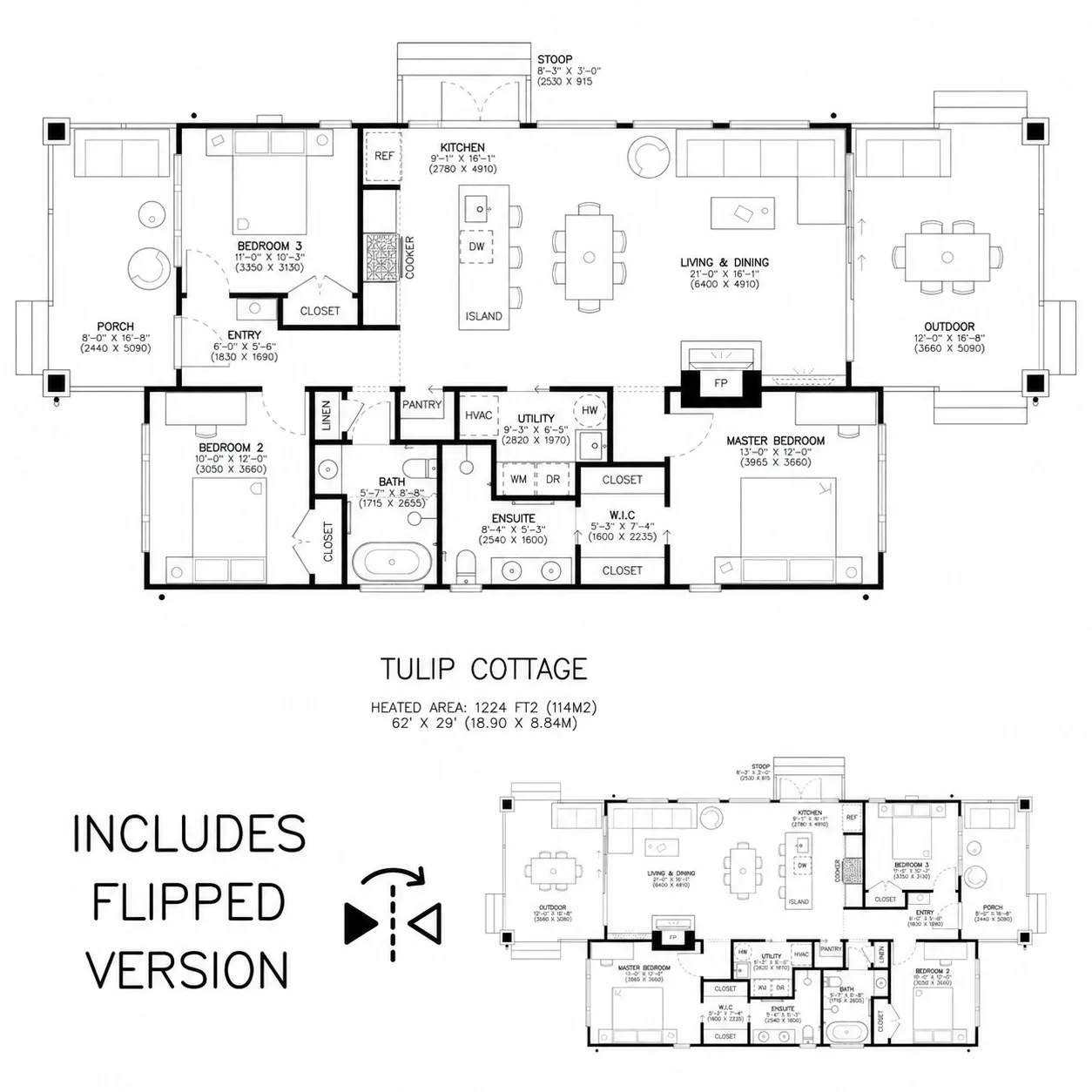

Three bedrooms and two bathrooms on one level, with an ensuite off the primary. A covered front porch handles the street approach in proper craftsman fashion, with the vaulted outdoor living area providing the private side.

The garage is detached and 22 by 22 feet, which keeps the car and its noise away from the bedrooms and leaves the bungalow elevation intact rather than interrupted by a garage door.

Structure and foundation

Drawn for a slab foundation with footing details included.

What you get

The download is a full construction set: dimensioned floor plans for each level, exterior elevations on all four sides, building sections and construction details, a foundation plan with floor, wall and roof framing layouts, an electrical layout, window and door schedules, and a roof plan with pitch and overhang dimensions. It arrives as a PDF once payment is confirmed.

Before you build

Permit requirements depend on your location, site and proposed construction. Your building department determines which drawings, calculations and professional approvals are required, and local review may identify changes needed to the plans. Some departments ask for an engineer’s stamp or a foundation designed around your own soil report; arrange these with a local engineer. Print as many copies as your builder and your permit application require.

Other plans to compare

If these craftsman bungalow plans are not quite the right size, browse every design in Cottage, or compare this one with Small Cottage, 30×30 and Spruce Cabin, 34×36.

Common questions

Can I modify these craftsman bungalow plans?

Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.

How are the drawings supplied?

Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.

Are there limits on printing?

No. Print whatever your builder, your subcontractors and your permit submission need.
