About this plan

North Star runs 98 feet long and just 24 feet deep. That proportion is the entire idea: at 24 feet, no room is more than twelve feet from an exterior wall, so every space in the house takes daylight from two sides. These 98x24 modern barn house plans come as a complete PDF set.

What dual-aspect light does

Rooms lit from one side have a bright end and a dim end, and you feel it without being able to name it. Lit from two, they read evenly all day and the light changes as the sun moves rather than simply switching off. A narrow plan is the only way to get that in a single-storey house, and it is why this one is 98 feet long instead of square.

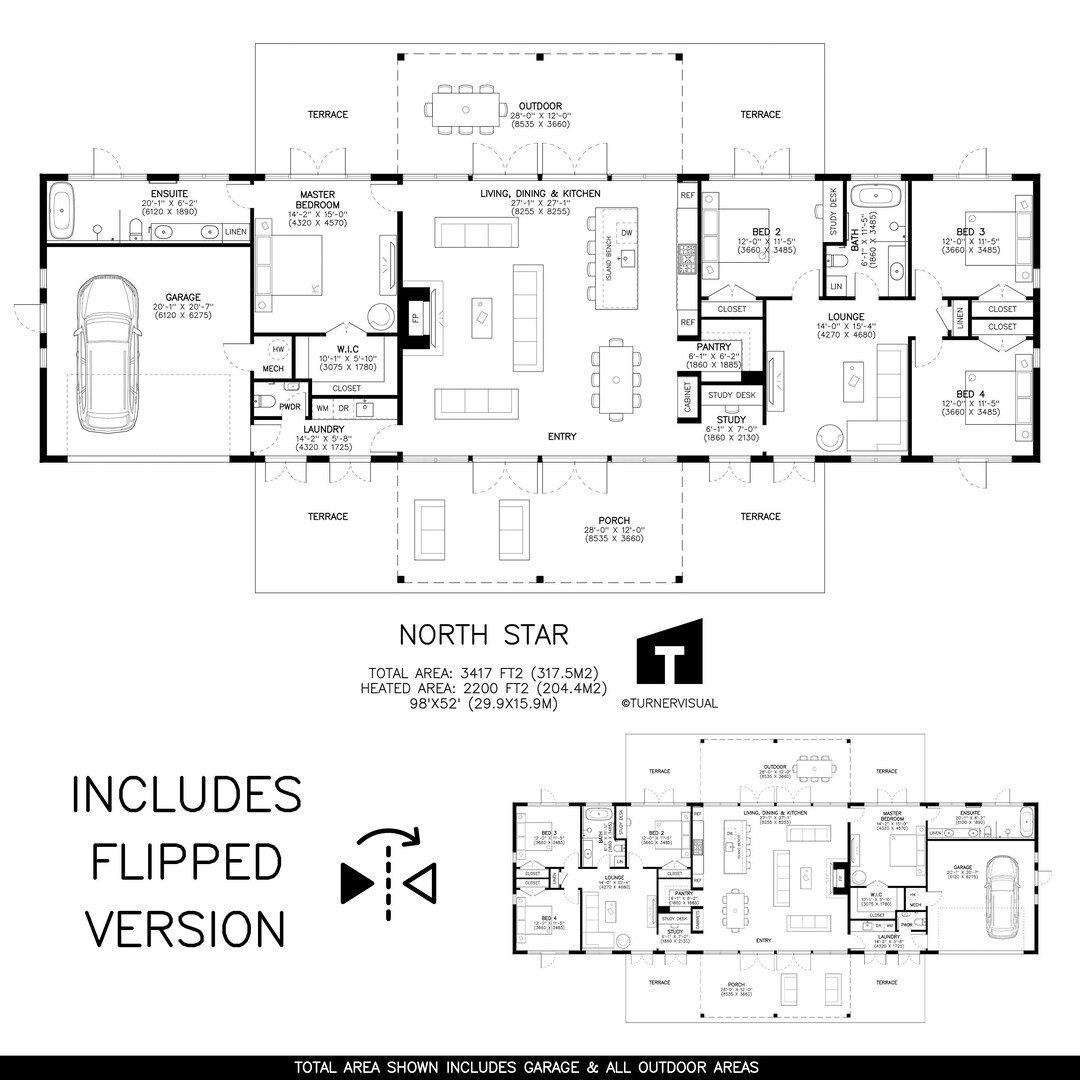

How the plan works

2,200 square feet holds four bedrooms and two and a half bathrooms on one level. The great room is vaulted. The primary bedroom has a freestanding bath and a walk-in closet, and there is a study nook built into the plan rather than improvised later.

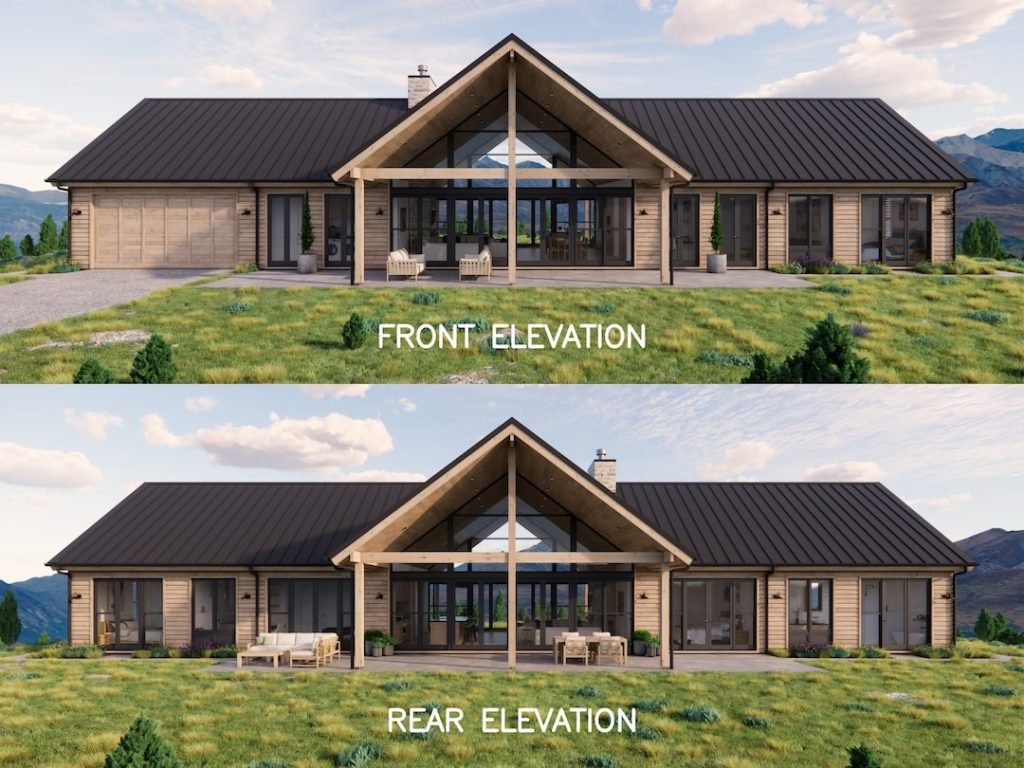

The garage is integrated under the same roofline, so the long elevation stays unbroken instead of ending in a bolted-on box.

Structure and foundation

Drawn for a slab foundation with footing details included. A 24 foot depth also keeps roof and floor spans inside standard lumber lengths.

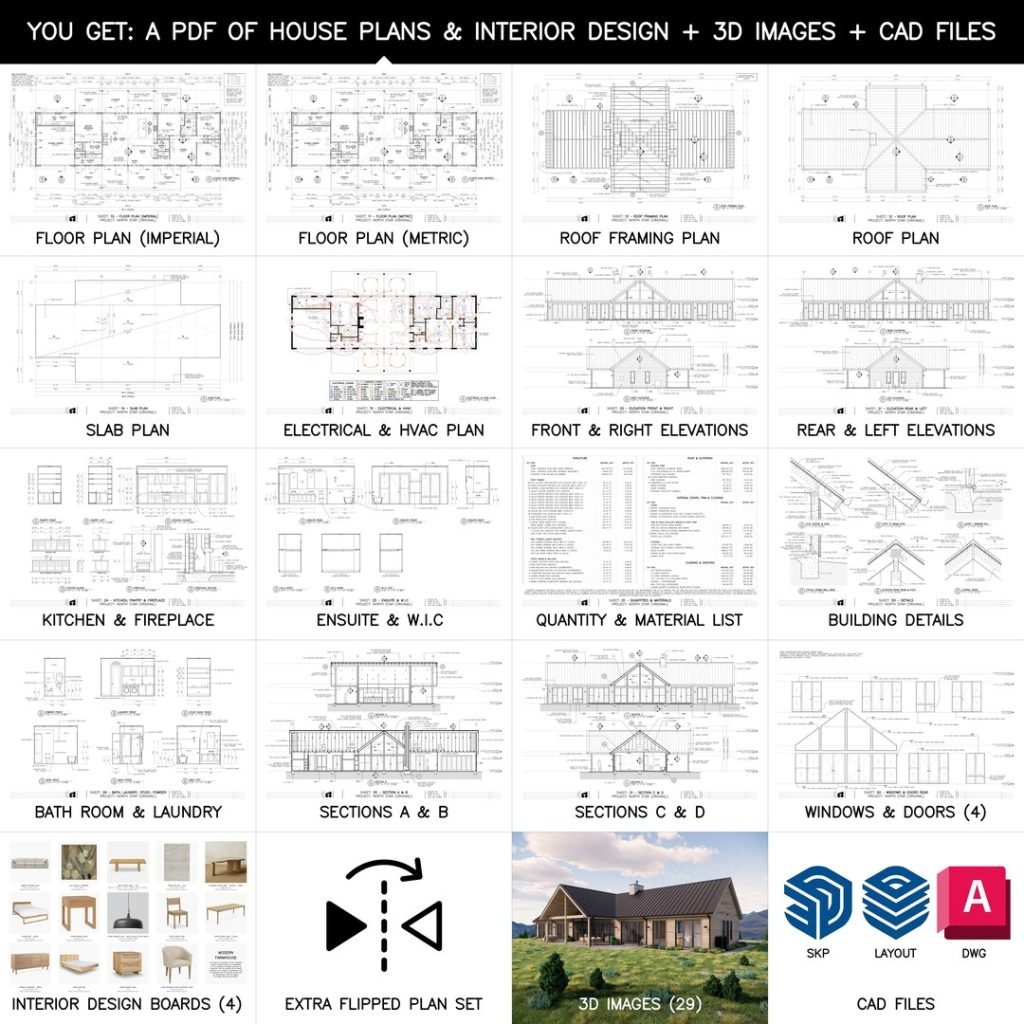

What you get

The download is a full construction set: dimensioned floor plans for each level, exterior elevations on all four sides, building sections and construction details, a foundation plan with floor, wall and roof framing layouts, an electrical layout, window and door schedules, and a roof plan with pitch and overhang dimensions. It arrives as a PDF once payment is confirmed.

Before you build

Permit requirements depend on your location, site and proposed construction. Your building department determines which drawings, calculations and professional approvals are required, and local review may identify changes needed to the plans. Some departments ask for an engineer’s stamp or a foundation designed around your own soil report; arrange these with a local engineer. Print as many copies as your builder and your permit application require.

Other plans to compare

If these 98x24 modern barn house plans are not quite the right size, browse every design in Barndominium, or compare this one with Mighty Maple Modern Barndominium and Tiny Barn House, 16×28.

Common questions

Can I modify these 98x24 modern barn house plans?

Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.

How do I receive the drawings?

Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.

How many copies can I print?

As many as the build needs, for your contractor, your subcontractors and your permit application.
