About this plan

These 60x40 barndominium plans come as a complete PDF set. Ashwood is a two-storey barndominium on a 60 by 40 foot footprint, giving 2,296 square feet with four bedrooms and three bathrooms. The 40 foot depth is the practical limit for clear-span barn framing, which is what allows the open core below.

How the plan works

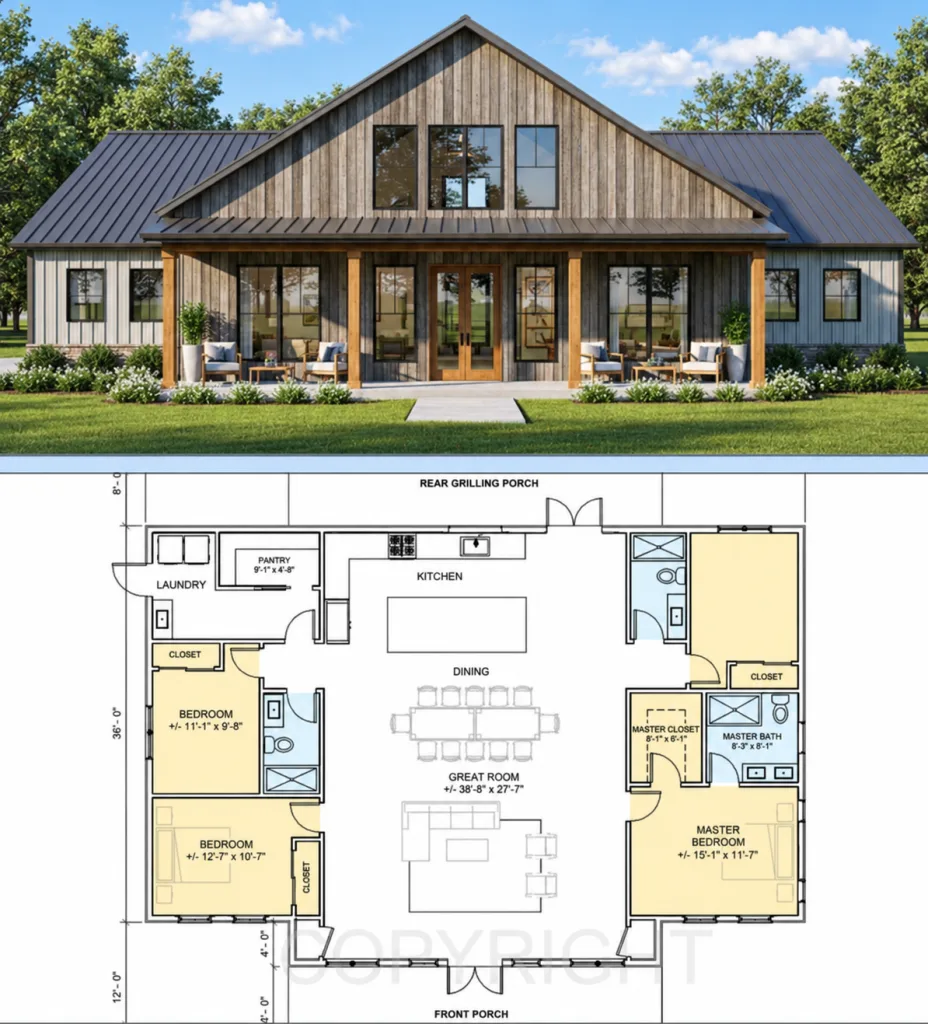

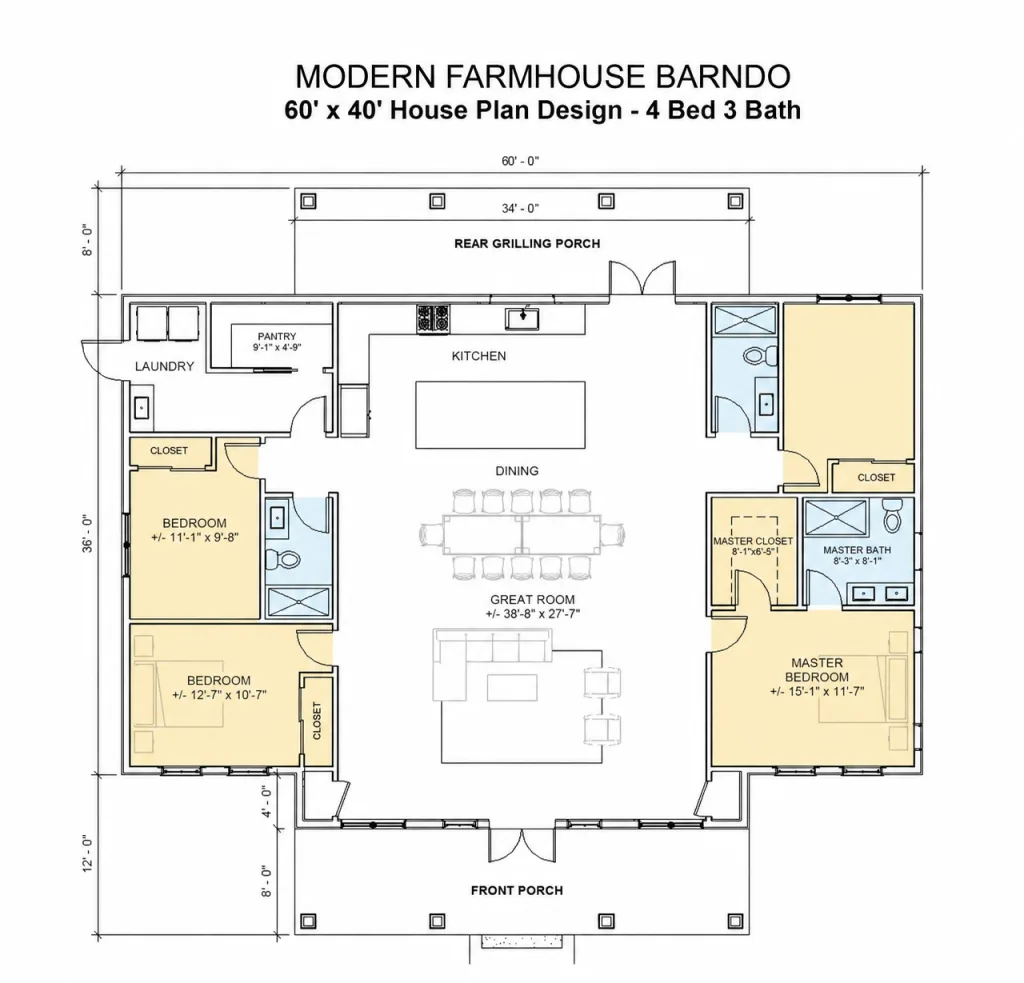

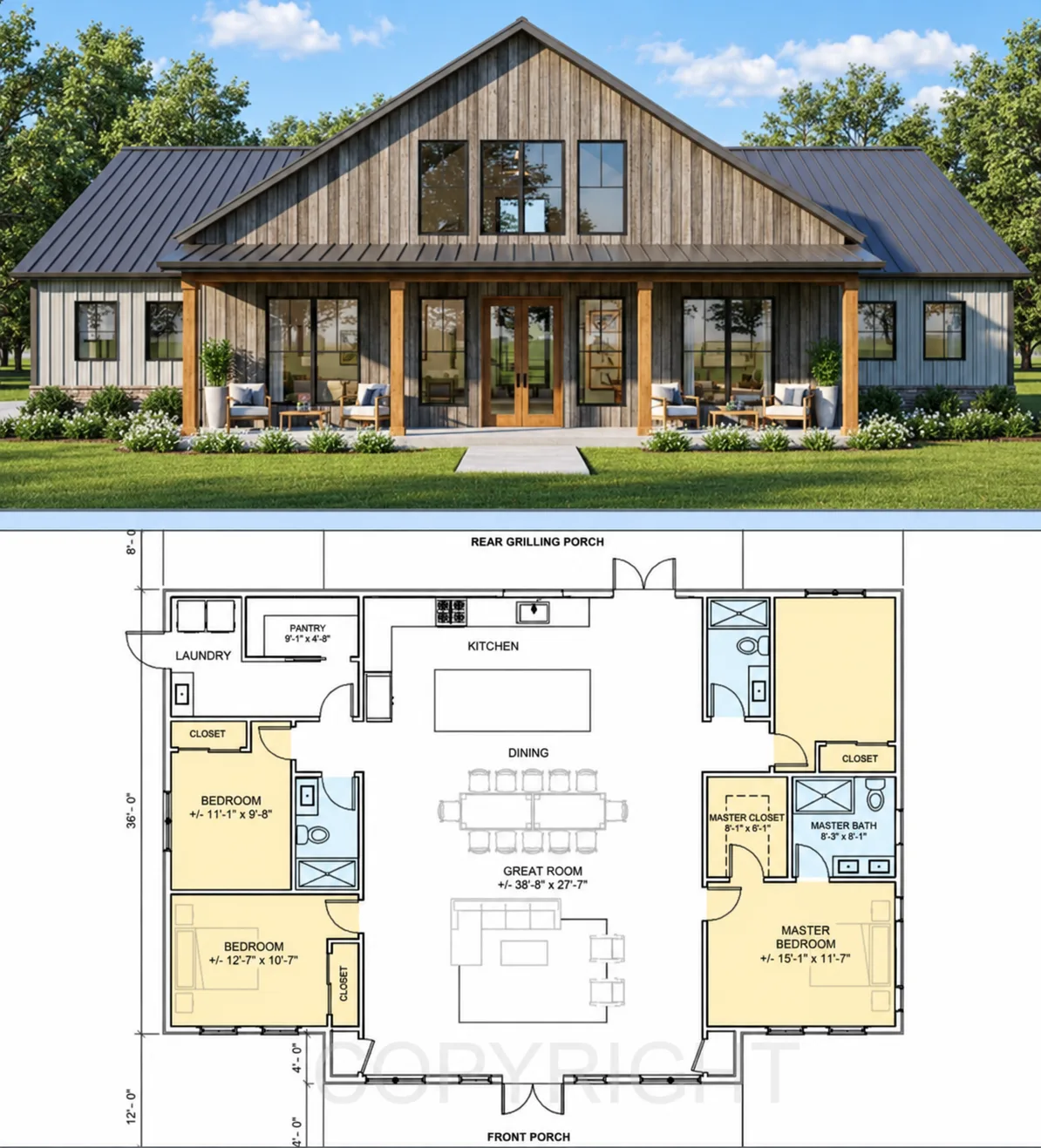

The ground floor is open across kitchen, dining and living, with the great room available flat or vaulted. Vaulting it opens the volume that makes a barndominium feel like one rather than a rectangular house with metal siding, and both versions are drawn.

The kitchen has a walk-in pantry, which matters more in an open plan than in a closed one, because there is nowhere to hide small appliances otherwise. Laundry has its own room.

Outdoor space

A wraparound porch covers the front and one side. A separate rear grilling porch sits off the kitchen, so cooking traffic does not cross the porch people are sitting on.

Structure and foundation

Drawn for a slab foundation with footing details in the set. Slab and clear-span framing are what keep the cost per square foot on a barndominium below a conventional build of the same size.

What you get

A complete construction set, supplied as a PDF:

• Dimensioned floor plans for each level, drawn to scale
• Exterior elevations on all four sides
• Building sections and construction details
• Foundation plan with floor, wall and roof framing layouts
• Electrical layout
• Window and door schedules
• Roof plan with pitch and overhang dimensions

Before you build

Permit requirements depend on your location, site and proposed construction. Your building department determines which drawings, calculations and professional approvals are required, and local review may identify changes needed to the plans. Some departments ask for an engineer’s stamp or a foundation designed around your own soil report; arrange these with a local engineer. Print as many copies as your builder and your permit application require.

Other plans to compare

If these 60x40 barndominium plans are not quite the right size, browse every design in Barndominium, or compare this one with Mill Farm Rustic Barn Farmhouse and North Star Modern Ranch Barn.

Common questions

Can I modify these 60x40 barndominium plans?

Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.

How do I get the files?

Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.

Can my builder have a copy?

Yes. Print as many sets as your contractor, your trades and your building department require.
