About this plan

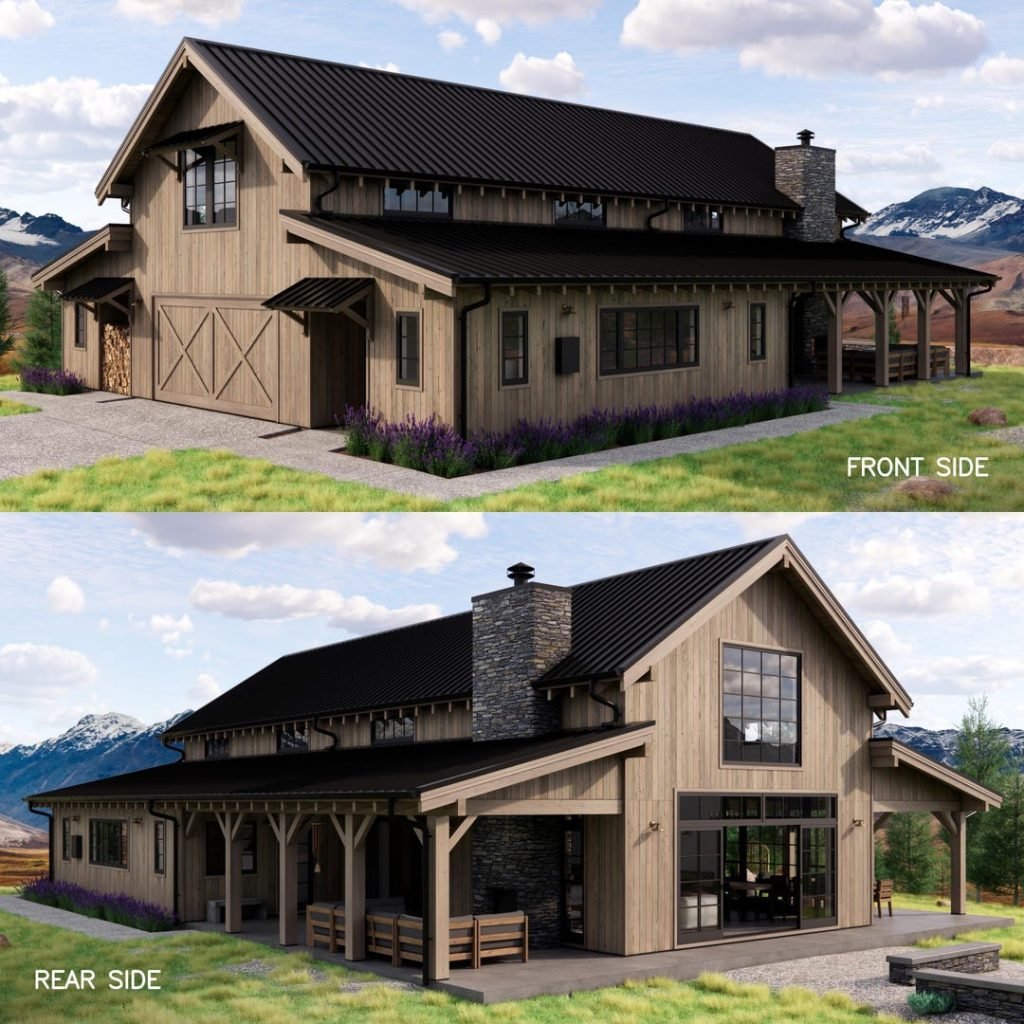

Lindenbarn is a two-storey American barn of 2,392 square feet on a 50 by 64 foot footprint, four bedrooms and two and a half bathrooms, with trusses vaulting to 23 feet. These american barn house plans are delivered as a PDF plan set.

Light from above

Clerestory windows sit high in the gable, above eye level. They throw daylight deep into the middle of the plan, where windows in the walls cannot reach, and they do it without any loss of privacy because nobody can see in through them. In a building 50 feet wide that is the difference between a bright centre and a dark one.

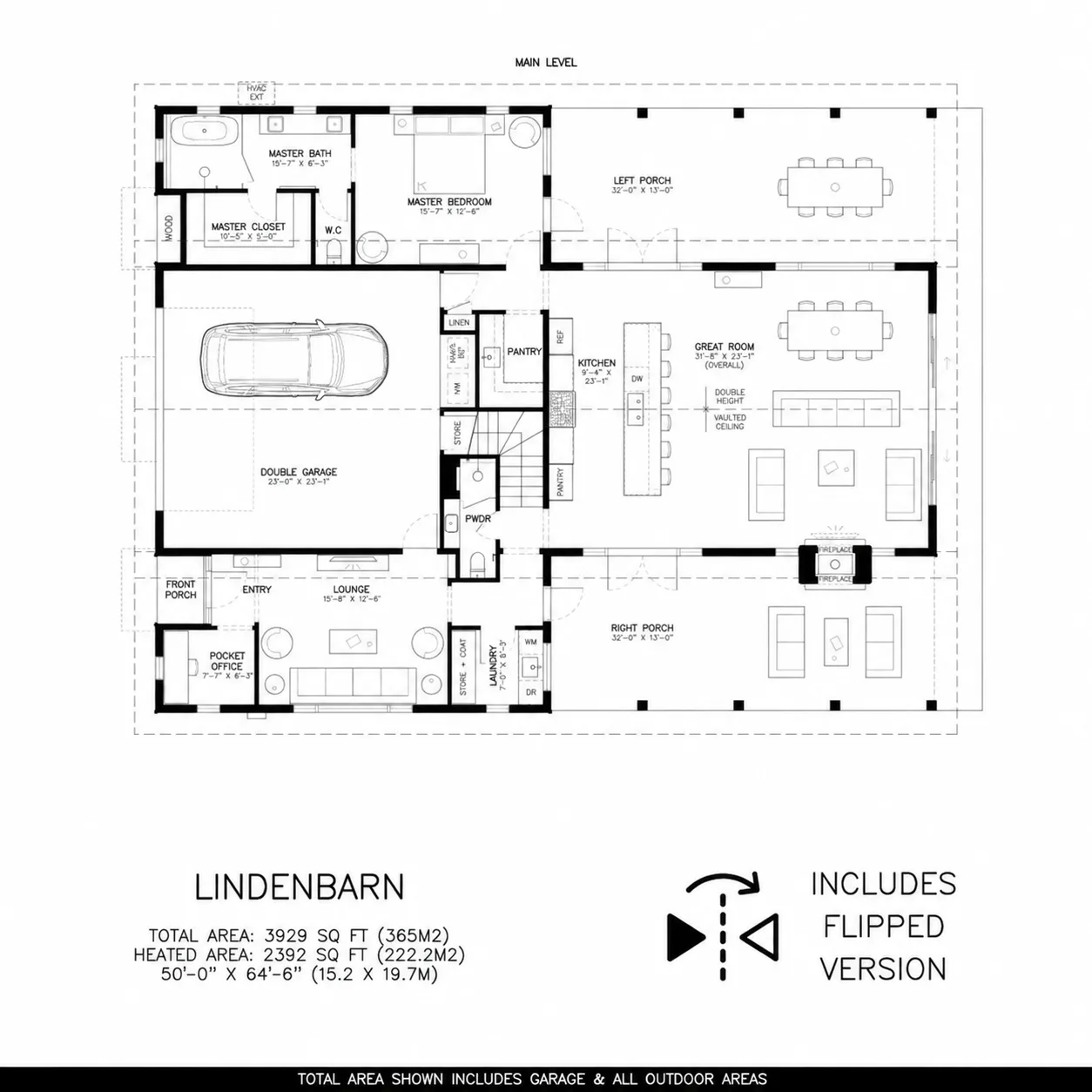

How the plan works

The primary bedroom is on the ground floor. Keeping it there means the stairs become optional for daily life and the upper level can belong entirely to children or guests. The primary bathroom has a freestanding tub.

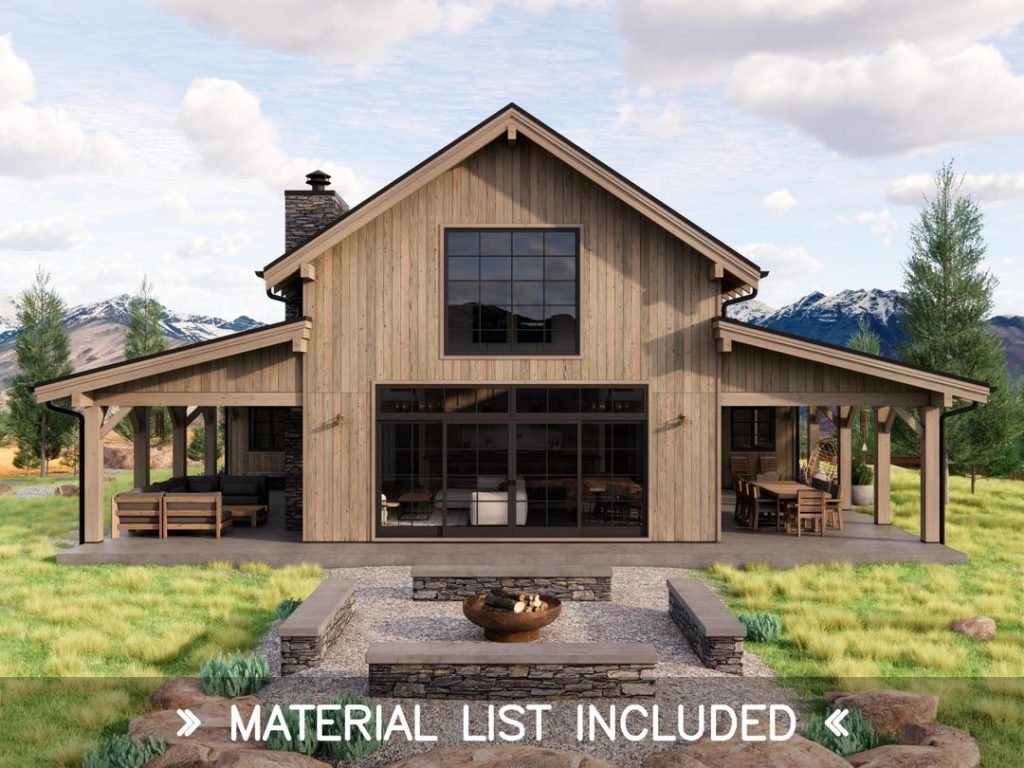

The kitchen has a walk-in pantry. The porch fireplace is double-sided, so it heats the covered outdoor area and is visible from inside, which extends the season you can use the porch by a couple of months at either end.

There is a two-car garage.

Structure and foundation

Drawn for a slab foundation with footing details included.

What you get

A complete construction set, supplied as a PDF:

• Dimensioned floor plans for each level, drawn to scale
• Exterior elevations on all four sides
• Building sections and construction details
• Foundation plan with floor, wall and roof framing layouts
• Electrical layout
• Window and door schedules
• Roof plan with pitch and overhang dimensions

Before you build

Permit requirements depend on your location, site and proposed construction. Your building department determines which drawings, calculations and professional approvals are required, and local review may identify changes needed to the plans. Some departments ask for an engineer’s stamp or a foundation designed around your own soil report; arrange these with a local engineer. Print as many copies as your builder and your permit application require.

Other plans to compare

If these american barn house plans are not quite the right size, browse every design in Barndominium, or compare this one with 40×60 Barndominium Permit Set, 3 Bed 3 Bath and Cypress Barndominium.

Common questions

Can I modify these american barn house plans?

Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.

How do I receive the drawings?

Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.

How many copies can I print?

As many as the build needs, for your contractor, your subcontractors and your permit application.
