About this plan

A 16 by 28 foot barn house, 594 square feet over two levels with one bedroom, one bathroom and a sleeping loft. Ceilings reach 16 feet under a 12 in 12 roof. These tiny barn house plans are delivered as a PDF plan set.

A true 12 in 12

A 12 in 12 pitch is a 45 degree roof, which is the classic barn angle and the steepest pitch that can still be framed and sheathed without special measures. It gives the loft full standing headroom at the centre and carries snow off rather than holding it.

The ridge is 16 feet 8 inches high. Height limits for accessory structures vary, so check with your local planning or zoning office.

Sixteen feet inside a sixteen foot width

The ceiling height matches the building width, which gives the interior a square section and is why 594 square feet does not feel like a shed. The sleeping loft takes part of that height, leaving the rest open.

Practicalities

Washer and dryer space is drawn in, which on a building this size is a real allocation of floor area and the difference between a cabin you visit and one you can live in.

A front deck runs off the ground floor. Rated for 115 mile per hour winds, on a concrete slab.

What you get

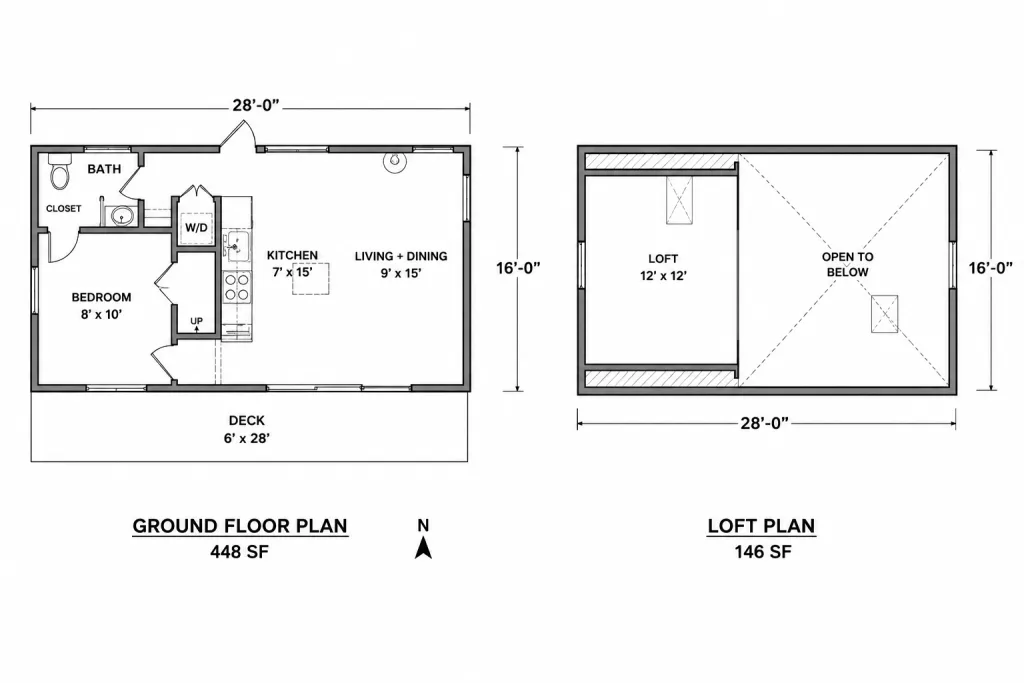

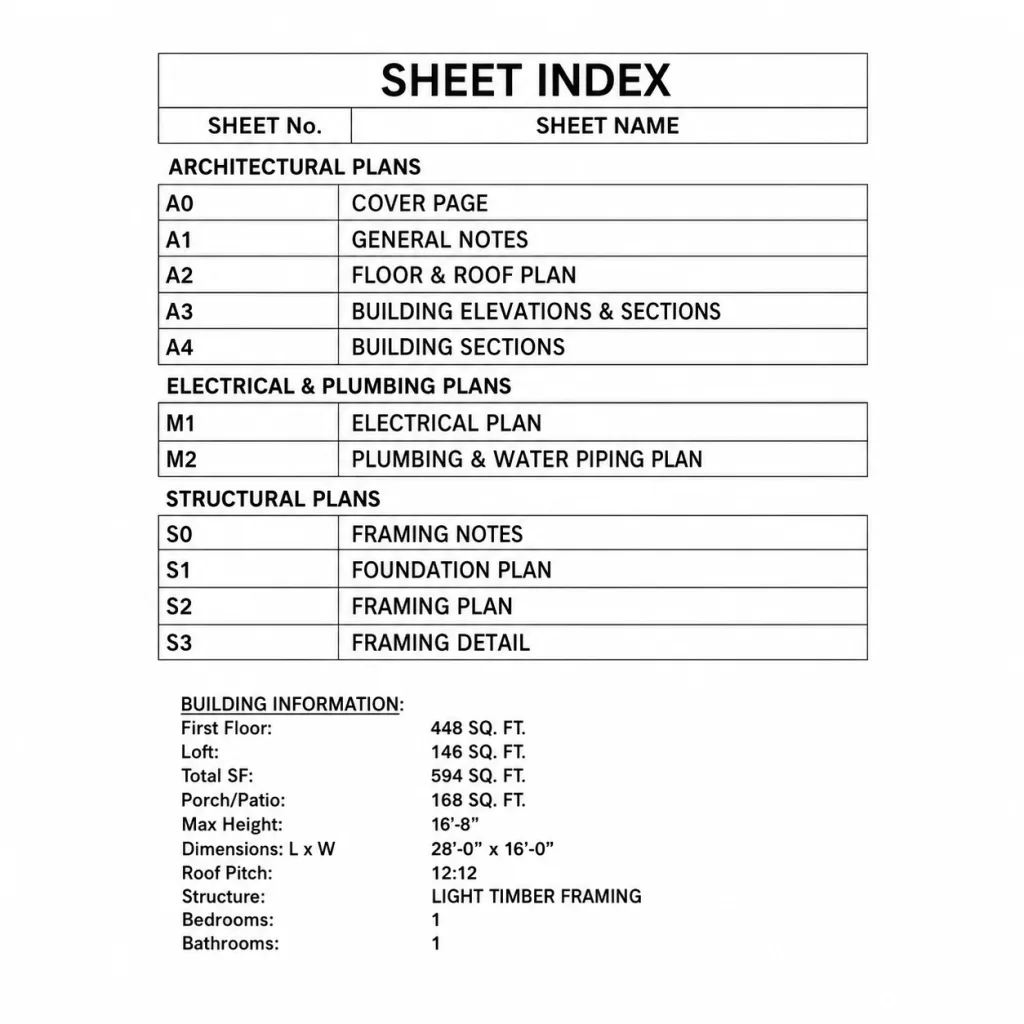

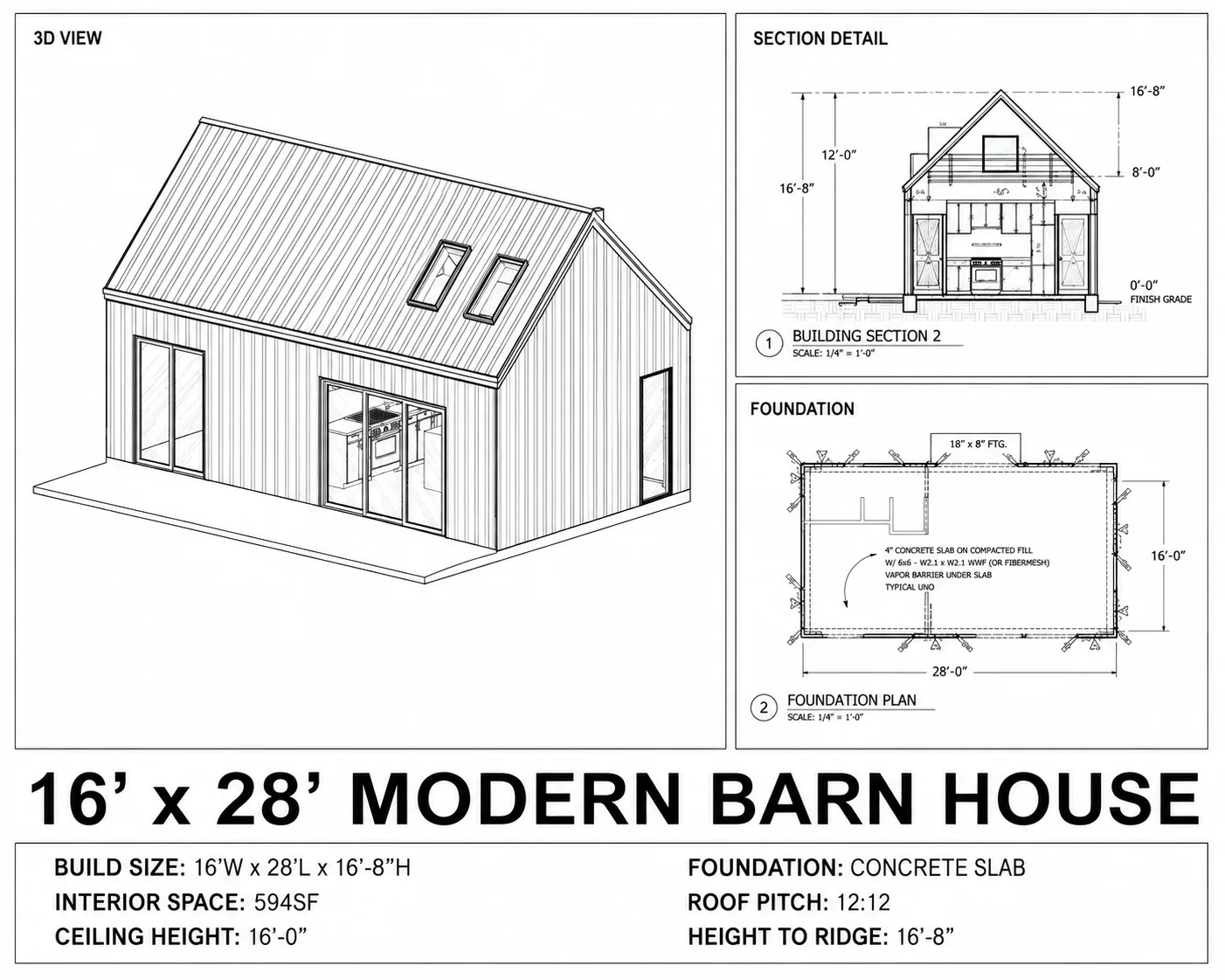

The download is a full construction set: dimensioned floor plans for each level, exterior elevations on all four sides, building sections and construction details, a foundation plan with floor, wall and roof framing layouts, an electrical layout, window and door schedules, and a roof plan with pitch and overhang dimensions. It arrives as a PDF once payment is confirmed.

Before you build

Permit requirements depend on your location, site and proposed construction. Your building department determines which drawings, calculations and professional approvals are required, and local review may identify changes needed to the plans. Some departments ask for an engineer’s stamp or a foundation designed around your own soil report; arrange these with a local engineer.

Other plans to compare

If these tiny barn house plans are not quite the right size, browse every design in Barndominium, or compare this one with 40×30 Barndominium Permit Set, 2 Bed 2 Bath and 40x60 Barndominium Permit Set, 3 Bed 3 Bath. You may also want to look at Small Loft Cabin, 12x20.

Common questions

Can I modify these tiny barn house plans?

Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.

How do I get the files?

Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.

Can my builder have a copy?

Yes. Print as many sets as your contractor, your trades and your building department require.
