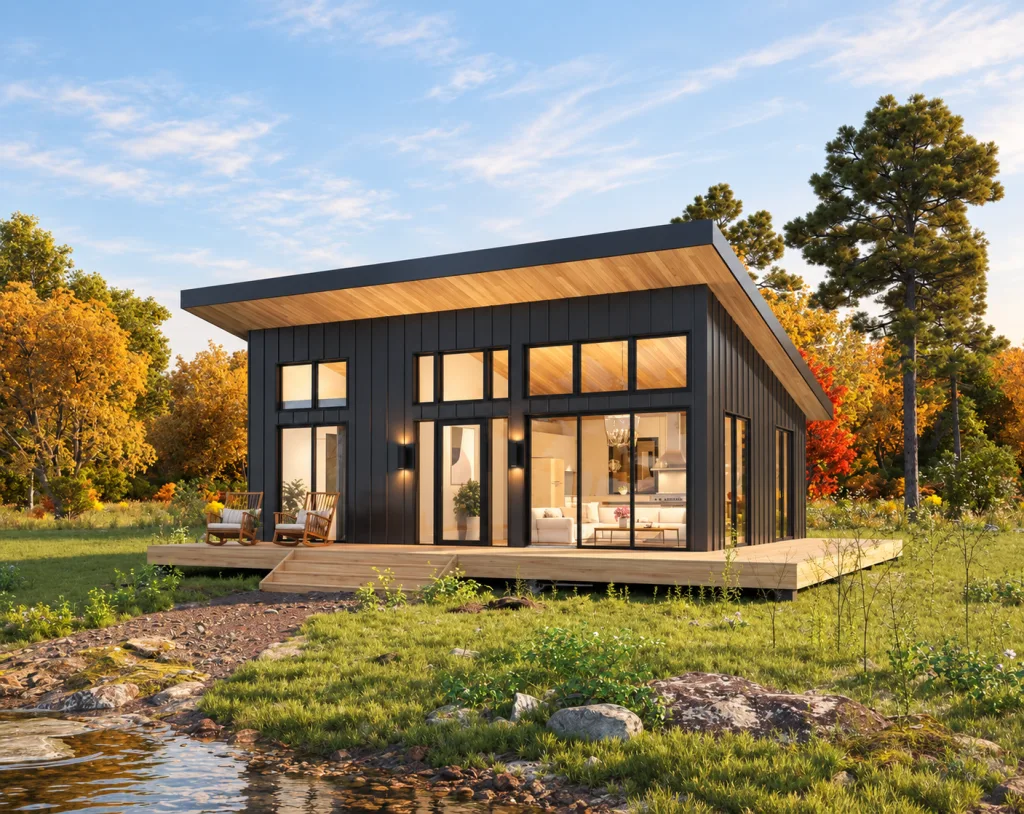

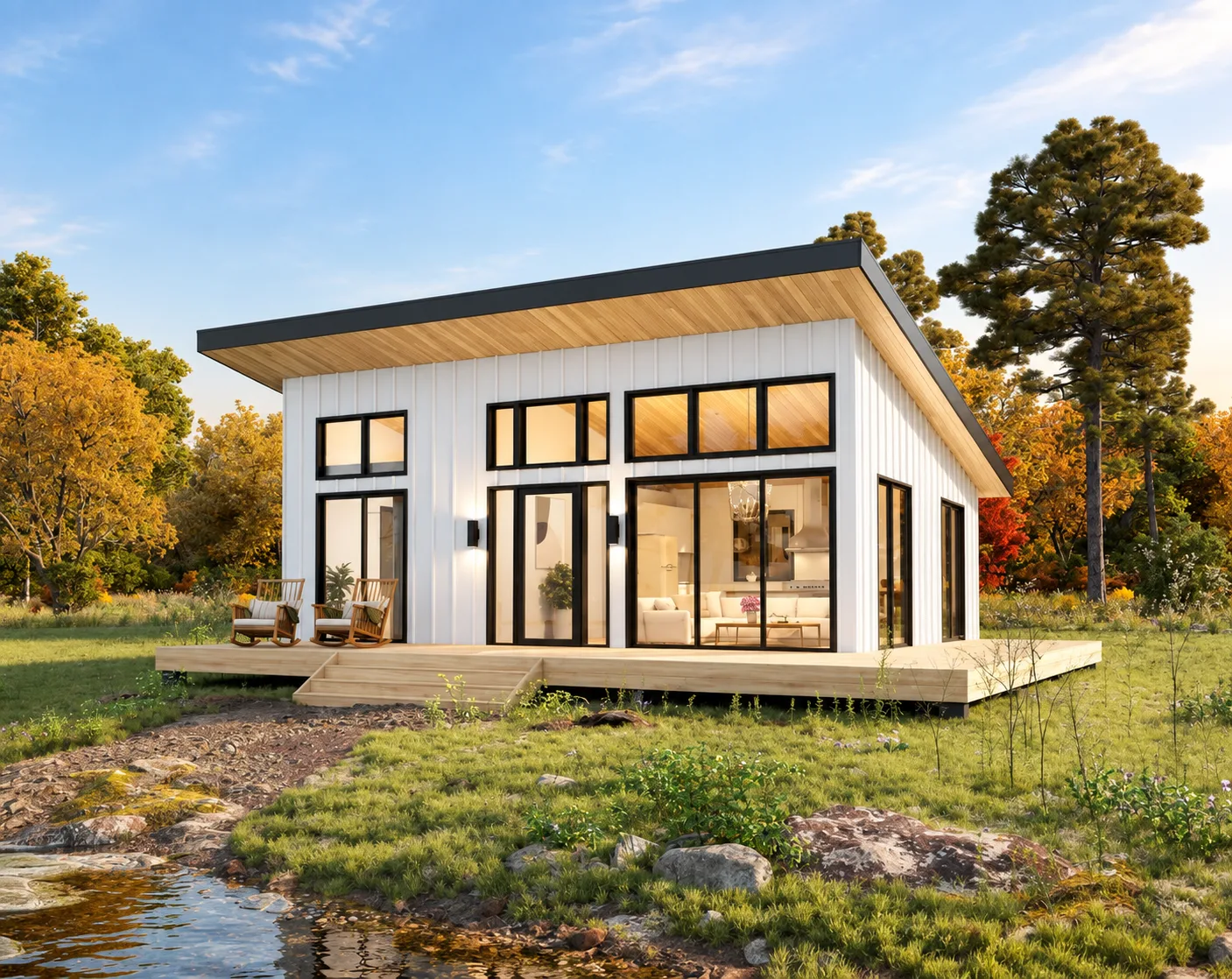

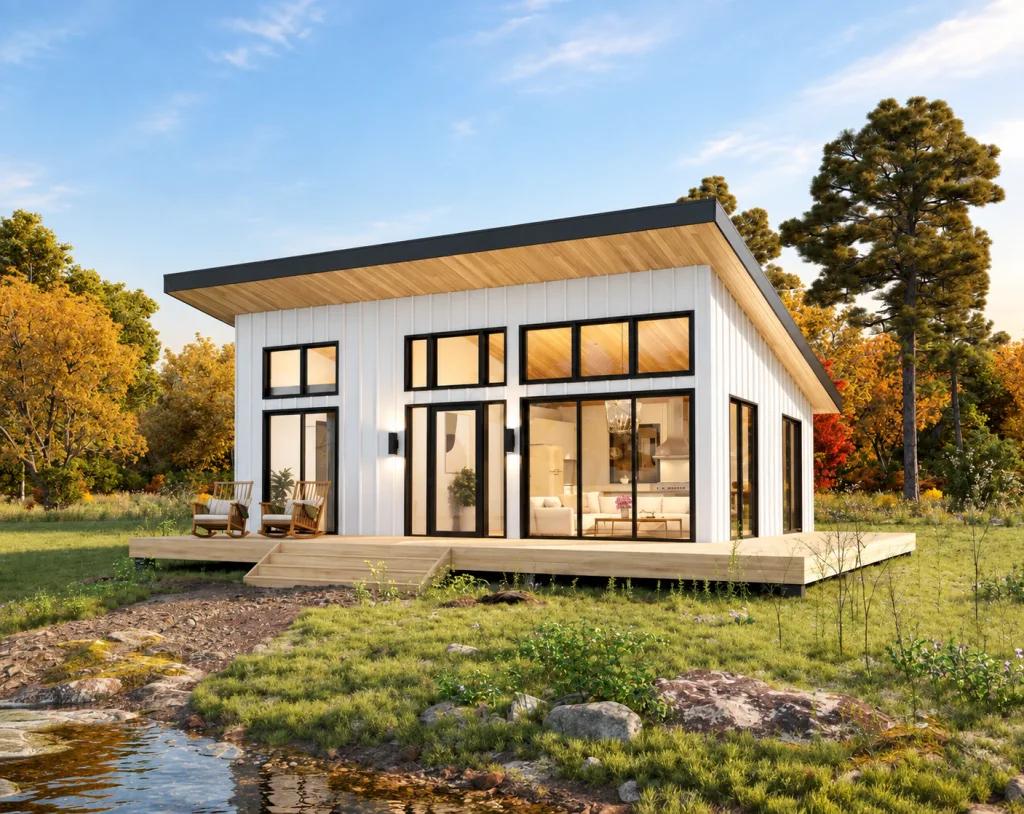

Exterior and interior renderings are illustrative. Furniture, landscaping and finishes are not part of the plan set unless listed.
Plan specifications
616Sq. ft
1Bedroom
1Bathroom
2Stories
22' 0"Width
28' 0"Depth
Slab, Pier or Crawl SpaceFoundation shown
About this plan
A 22 by 28 foot cabin under a lean-to shed roof, 616 square feet with one bedroom, one bathroom and a ten foot square sleeping loft above. The 22x28 cabin plans arrive as a PDF plan set.

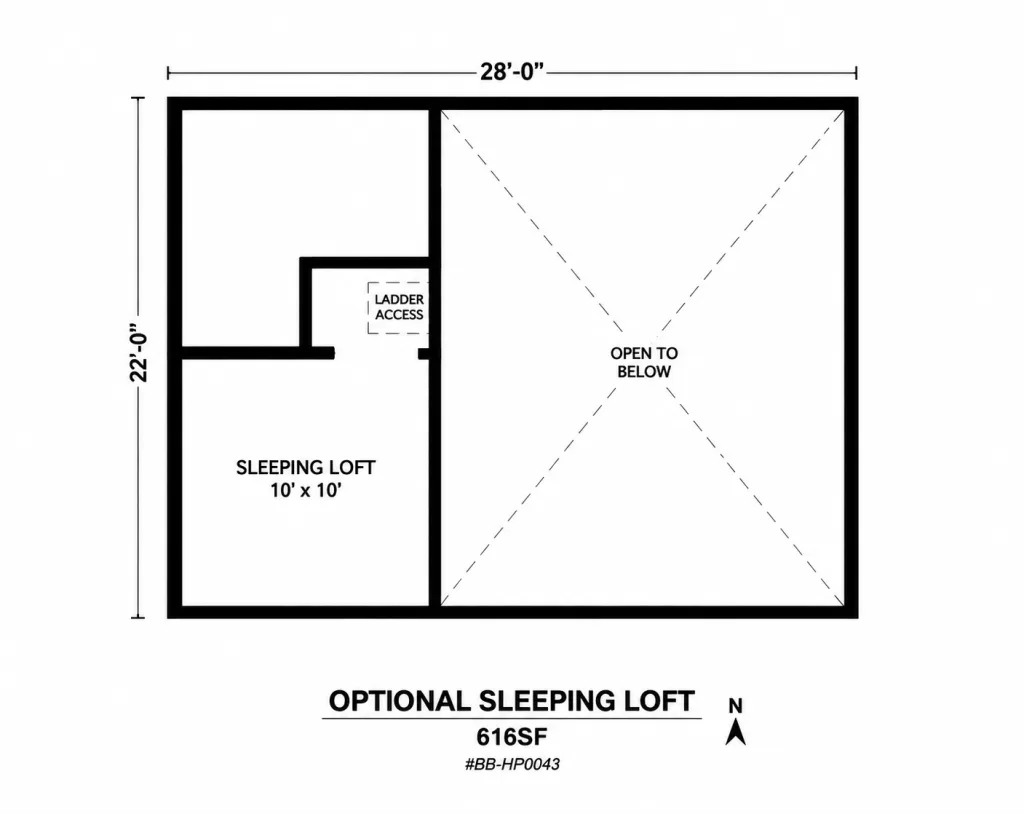

The 10 by 10 loft
A hundred square feet is enough for a double bed with room to stand beside it, which is the practical minimum for a loft you will use regularly rather than occasionally. Undersized lofts are the most common fault in small cabin plans, and this one is drawn past it.
With the bedroom below and the loft above, the cabin sleeps two parties without either walking through the other.

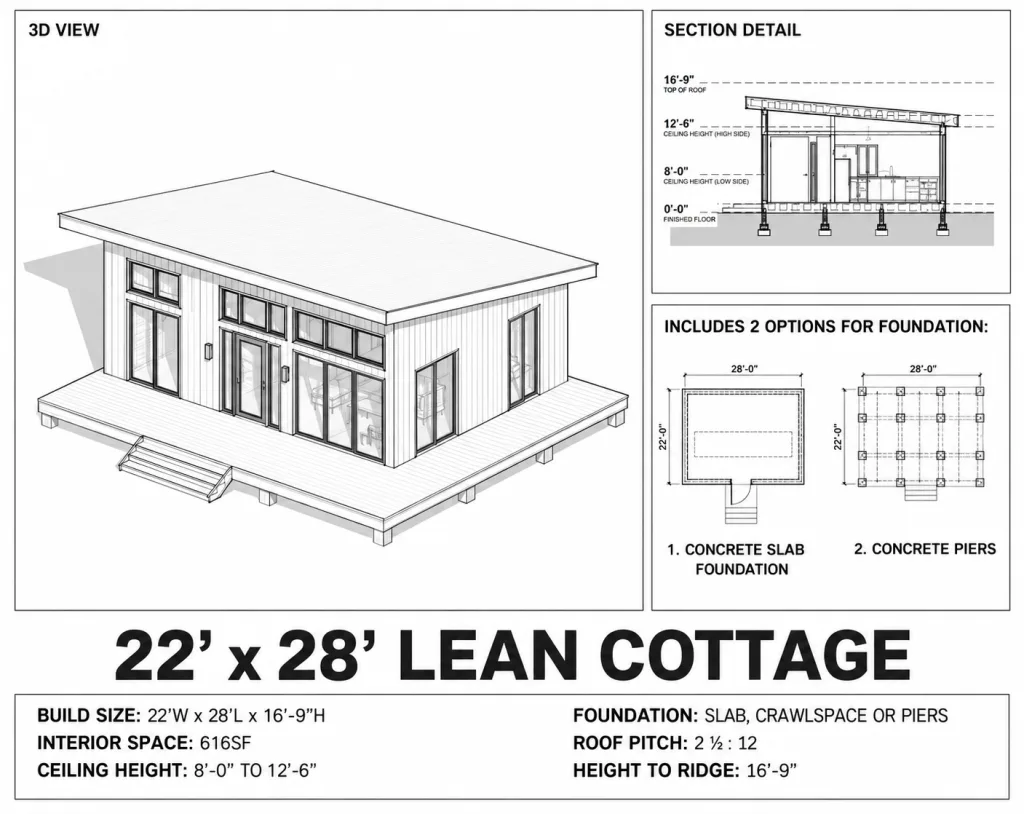

The shed roof
A single slope carries the ceiling from eight feet at the low wall to twelve feet six at the high one. That height goes over the living space and the loft, where it is useful, while the bedroom and bathroom stay at a normal, easily heated height.
It is also the cheapest roof to frame, with no ridge, no valleys and every rafter cut the same.
Practicalities
Washer and dryer space is drawn in. A front deck is available as an option. The roof is rated to 95 pounds per square foot of snow load, and slab, pier and crawl space foundations are all included.
What you get
A complete construction set, supplied as a PDF:
- Dimensioned floor plans for each level, drawn to scale
- Exterior elevations on all four sides
- Building sections and construction details
- Foundation plan with floor, wall and roof framing layouts
- Electrical layout
- Window and door schedules
- Roof plan with pitch and overhang dimensions
Before you build
Permit requirements depend on your location, site and proposed construction. Your building department determines which drawings, calculations and professional approvals are required, and local review may identify changes needed to the plans. Some departments ask for an engineer’s stamp or a foundation designed around your own soil report; arrange these with a local engineer.
Other plans to compare
If these 22x28 cabin plans are not quite the right size, browse every design in Cabin, or compare this one with Lean Cabin, 24×36 and Spruce Cabin, 34×36. You may also want to look at Farmhouse Cabin, 20×26.
Common questions
Can I modify these 22x28 cabin plans?
Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.
How do I receive the drawings?
Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.
How many copies can I print?
As many as the build needs, for your contractor, your subcontractors and your permit application.
Rough build-cost guide
$92,400 - $123,200

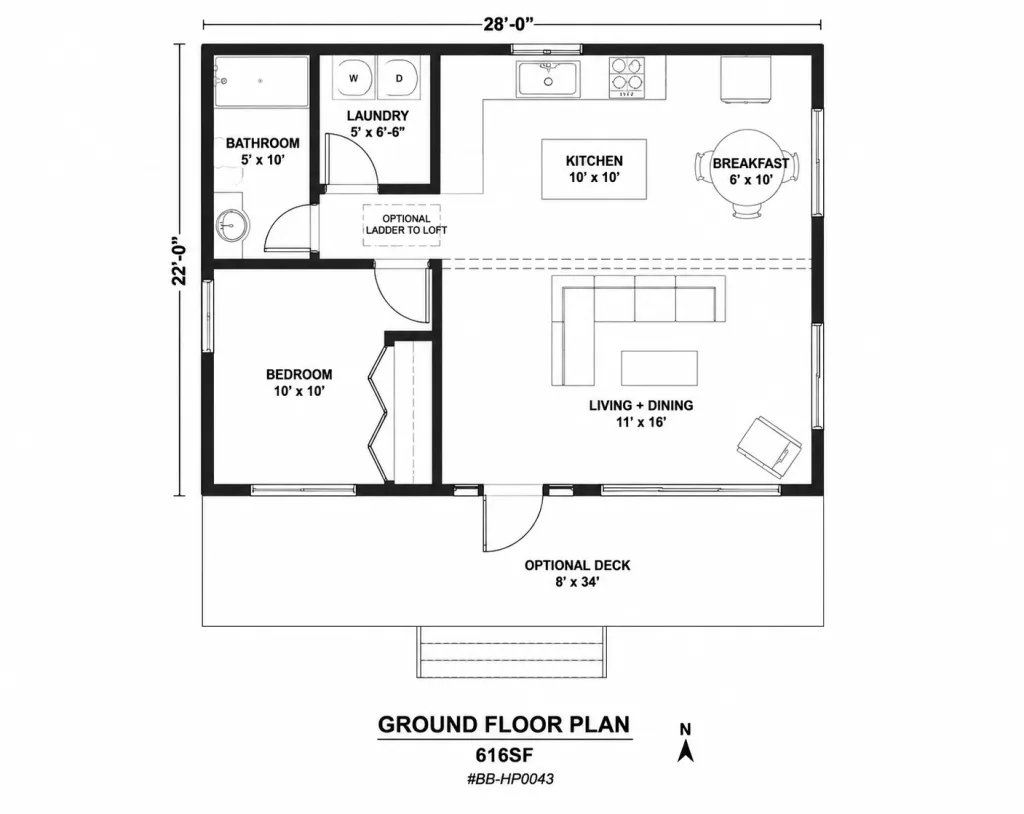

A simple $150-$200 per sq ft × 616 sq ft. Real costs depend on your location, site and finishes. Read the cost guideFloor plans
100%
Preview image. Use + and − to zoom, then scroll to move around. The purchased PDF contains the full-size, dimensioned drawings.
What you get with this plan
- Heated area
- 616 sq ft
- Overall size
- 22' 0" wide × 28' 0" deep
- Units
- Imperial (feet and inches)
- Foundation shown
- Slab, Pier or Crawl Space (other foundation types are a modification)
- PDF Set
- Printable PDF construction drawings
- CAD Files package
- Editable DWG drawings of the same set (+$150)
- Paper size
- Not yet listed for this plan
- Licence
- Single build. Licence terms
- Delivery
- Digital PDF plan set. Delivery policy
Sheet list
The sheet list for this plan has not been published yet. Email support@planbarn.com and we will send it before you buy.
Not included
- Site plan, and mechanical (HVAC), plumbing or structural engineering calculations unless listed in the sheet list above
- Engineer or architect stamps. Many areas require local review or a stamp before a permit is issued
- Changes for your site, climate or local code. We quote modifications free of charge
Your building department decides what is needed for a permit. Check local requirements before you build.
Plan features
Lean-To Shed Roof
8 to 12 ft 6 in Ceilings
10x10 Sleeping Loft
Optional Front Deck
95 PSF Roof Rated
Washer & Dryer
Questions about this plan
What is included?
The specifications, file formats and licence are listed under “What you get with this plan”. Where the sheet list is not yet published, email us and we will send it before you buy.
Can I modify the plan?
Often, yes. Ask for a free quote and we will confirm whether the change can be made for this plan; the written quote gives the price and an estimated completion time before you commit. Plan modifications
How is the plan delivered?
As a digital PDF plan set. Our delivery policy explains how and when files are made available. Delivery policy
Will it meet my local building code?
Codes are set locally. Your building department, and in many areas a local engineer or architect, must review the plans; some areas require a stamp. Budget for this before you build.
Can I get a refund?
Digital files cannot be returned. Where cancellation rights apply you can normally cancel within 14 days, unless you agreed for supply to begin immediately. If a file is faulty, incomplete or does not match this page, we repair or replace it, and refund you where that is not possible. Returns and Refunds Policy
Can I build it more than once?
The standard licence covers one build. Email us for a multi-build licence. Plan licence
Do I need an account?
No. Guest checkout is available; your receipt and download link go to the email address you enter.
