About this plan

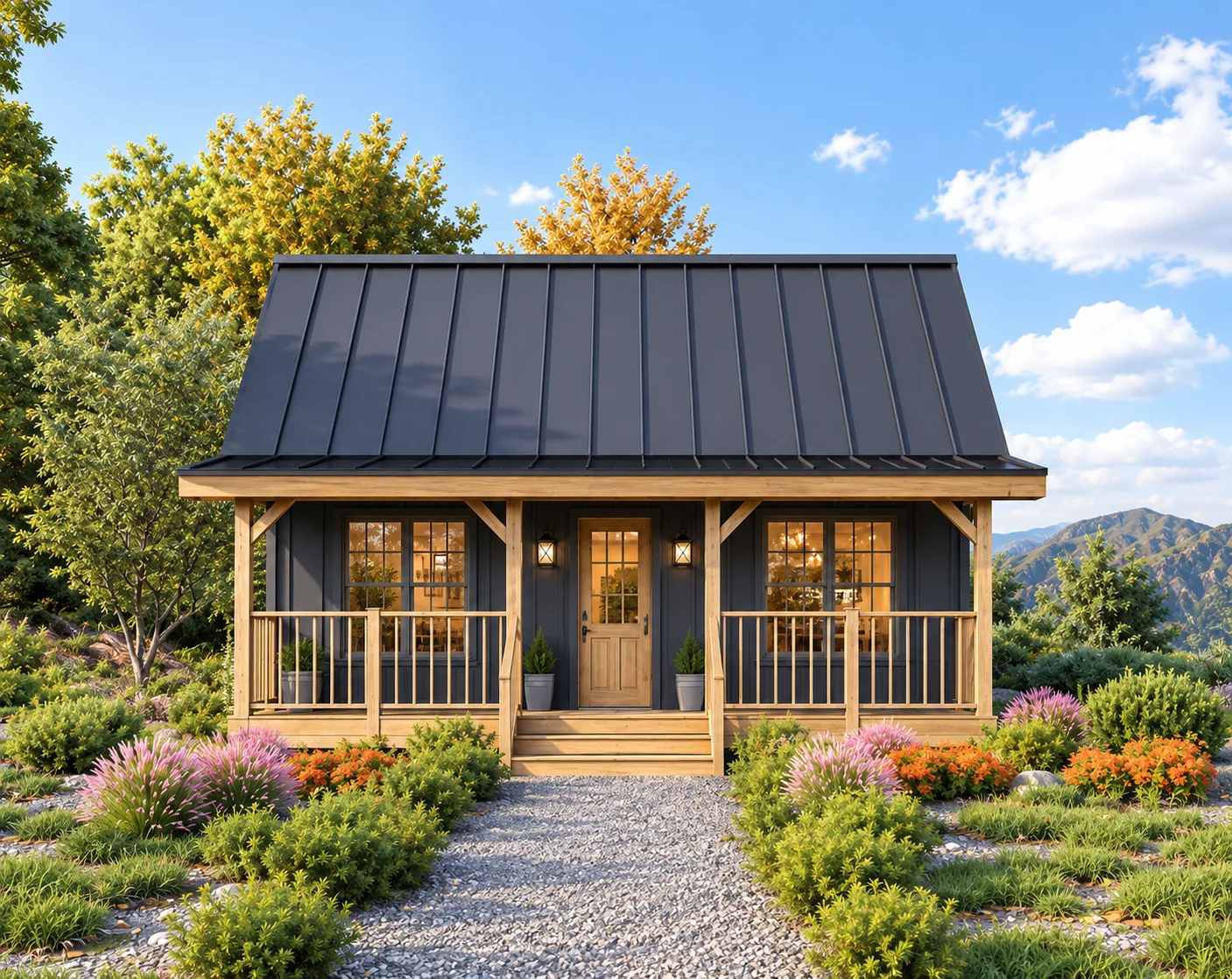

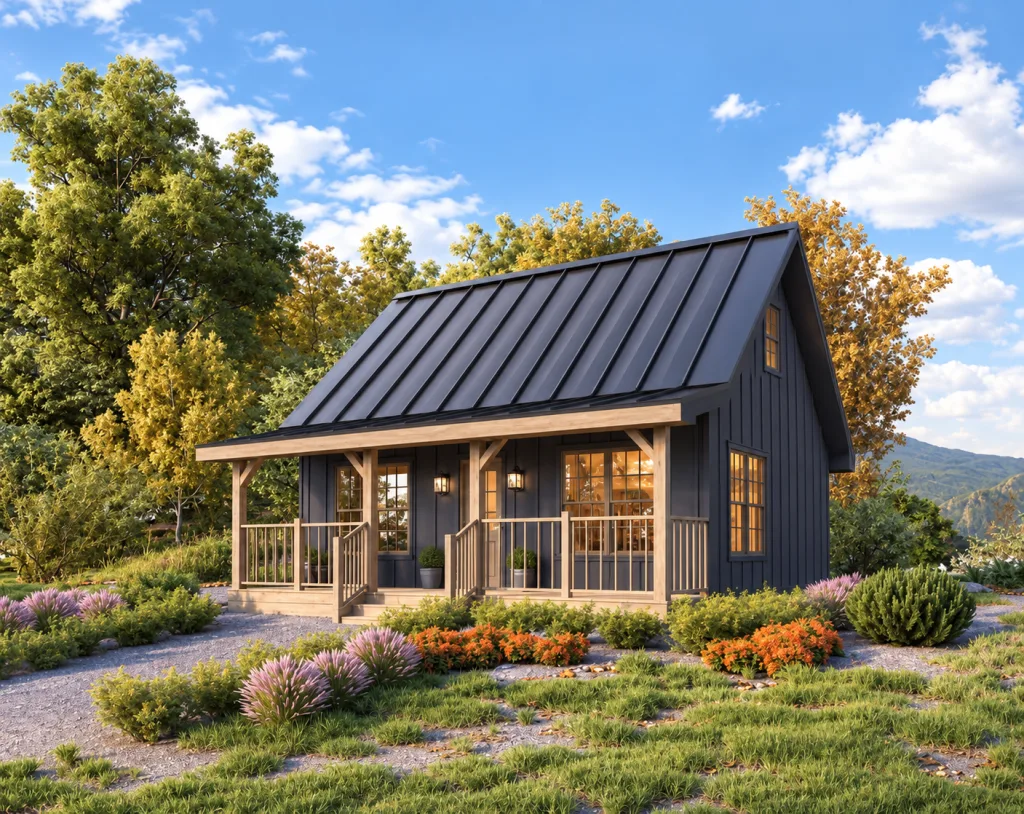

A 20 by 26 foot farmhouse cabin, 650 square feet on a single level with one bedroom and one bathroom. The ceiling vaults to 16 feet, and it does so over the entire plan rather than one room. The full set of 650 sq ft 20x26 cabin plans downloads straight after payment.

Vaulted throughout

Most small cabins vault the living room and leave the bedroom flat at eight feet. Carrying 16 feet across the whole 650 square feet means there is no low room to retreat into, and it is the single reason this plan lives larger than its floor area. On a single-storey building the roof volume is there whether you use it or not.

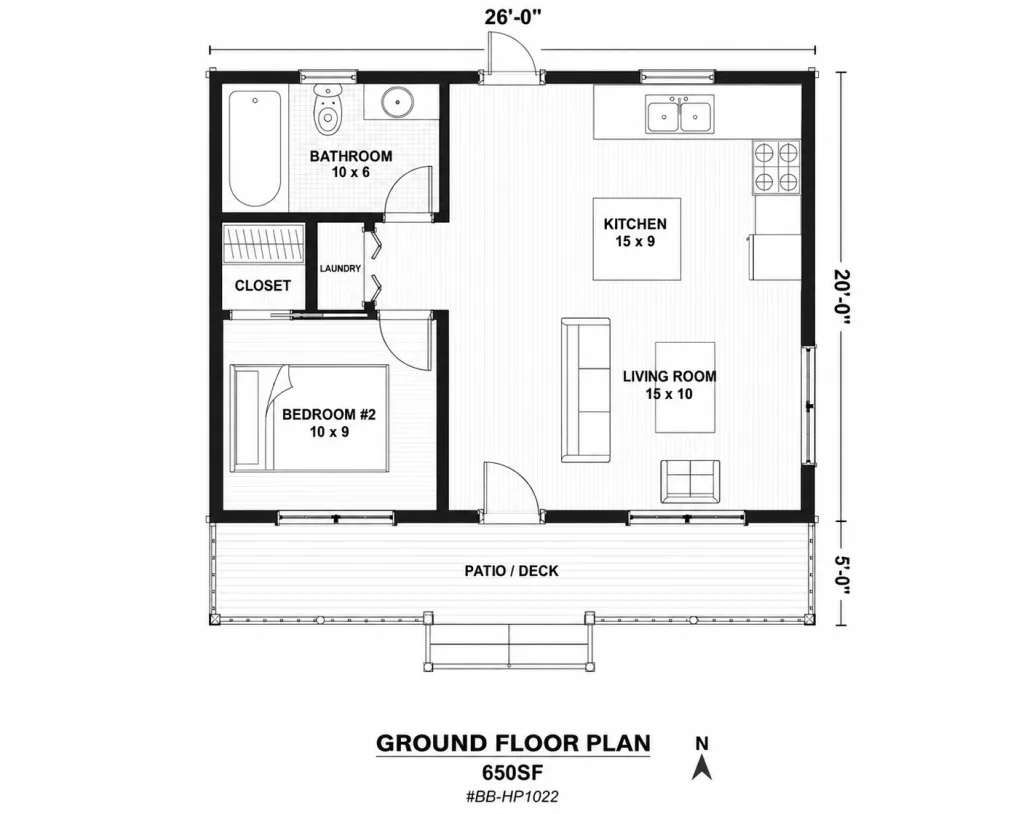

How it is arranged

Large windows throughout, with a large patio off the living space. There is a rear door beside the kitchen, which sounds minor until you are carrying firewood, groceries or rubbish and would otherwise be walking the length of the cabin to do it.

Foundation and basement

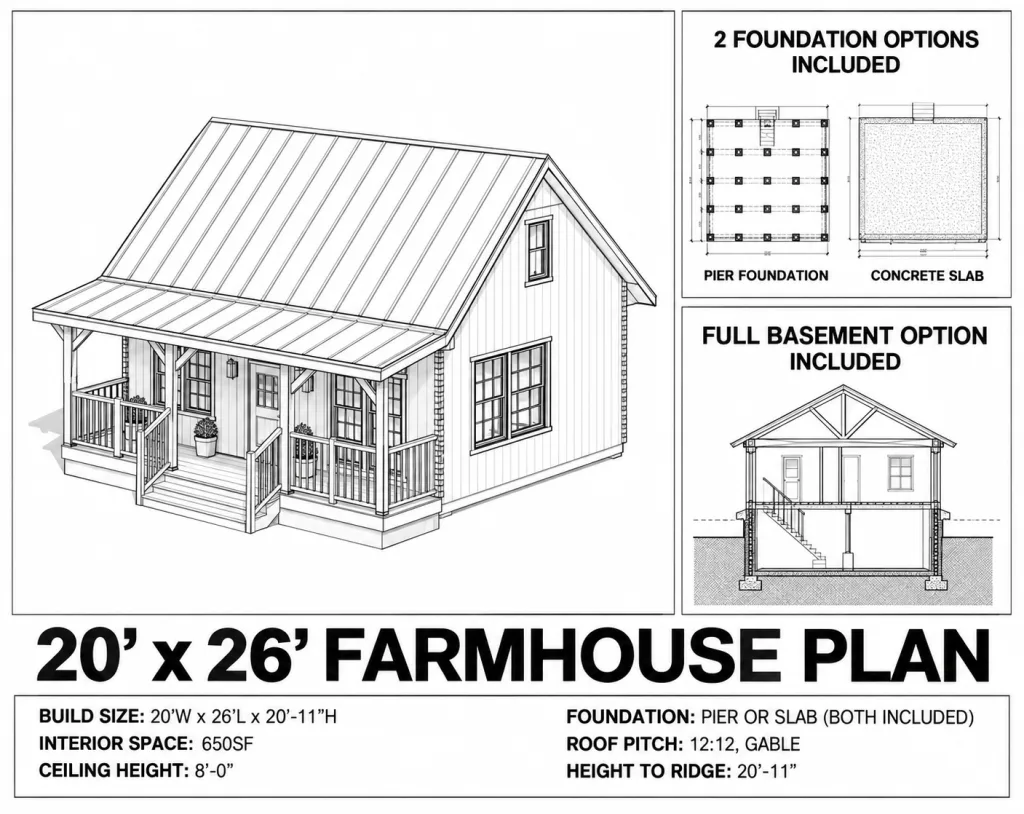

Drawn for pier or slab, with a full basement available as an option. On a 650 square foot footprint a basement doubles your usable area for the cost of excavation and walls, and it is where the mechanical plant, the storage and the workshop can go instead of eating into the living space.

The roof is rated to 95 pounds per square foot of snow load.

What you get

A complete construction set, supplied as a PDF:

• Dimensioned floor plans for each level, drawn to scale

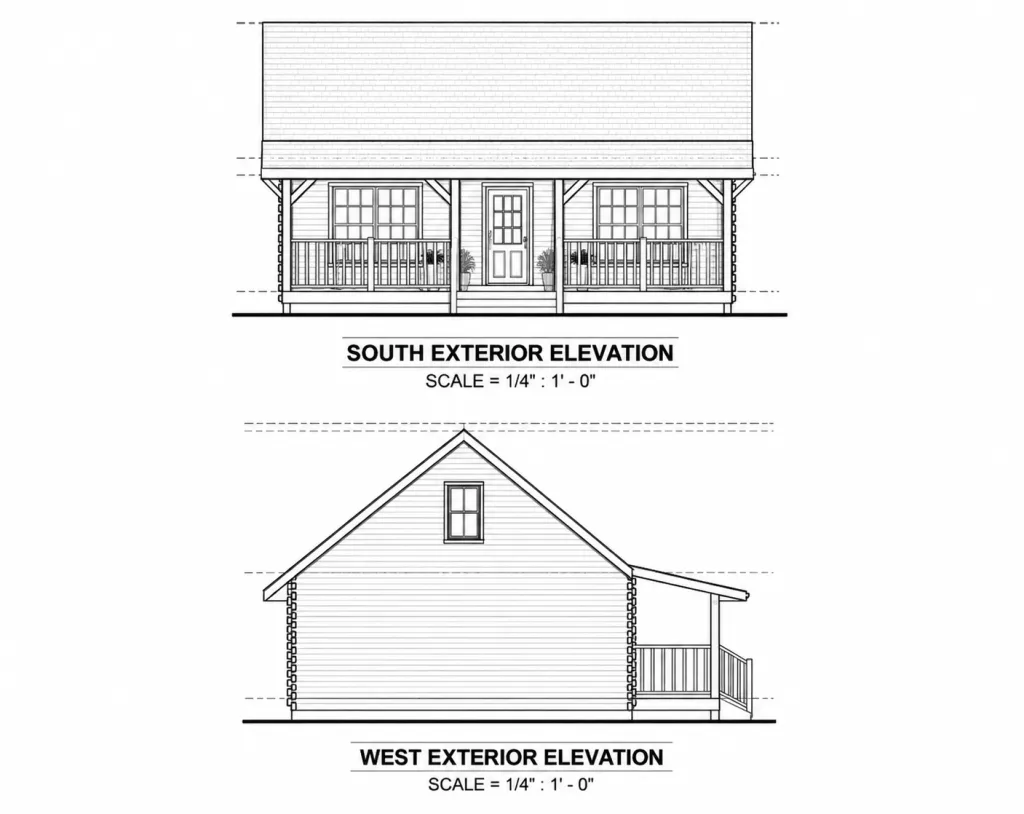

• Exterior elevations on all four sides
• Building sections and construction details
• Foundation plan with floor, wall and roof framing layouts
• Electrical layout
• Window and door schedules
• Roof plan with pitch and overhang dimensions

Before you build

Permit requirements depend on your location, site and proposed construction. Your building department determines which drawings, calculations and professional approvals are required, and local review may identify changes needed to the plans. Some departments ask for an engineer’s stamp or a foundation designed around your own soil report; arrange these with a local engineer.

Other plans to compare

If these 650 sq ft 20x26 cabin plans are not quite the right size, browse every design in Farmhouse, or compare this one with Chestnut Springs Mid-Century Farmhouse and Whitehaven Modern Farmhouse Ranch.

Common questions

Can I modify these 650 sq ft 20x26 cabin plans?

Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.

How do I receive the drawings?

Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.

How many copies can I print?

As many as the build needs, for your contractor, your subcontractors and your permit application.
