Plan specifications
500Sq. ft
2Bedrooms
1Bathroom
2Stories
18' 0"Width
24' 0"Depth
Slab or Footing WallFoundation shown
About this plan
An 18 by 24 foot A-frame, 500 square feet over two levels with two bedrooms and one bathroom: 375 square feet on the ground floor and 125 above. The master opens onto a balcony in the gable. You receive these 18x24 a-frame cabin plans as a PDF plan set.
A very steep A-frame
The pitch is 29 in 12, which is close to vertical, and the ridge reaches 22 feet 10 inches on a building only 18 feet wide. That steepness is what buys full eight foot ceilings on both levels, which is unusual in an A-frame this small and is normally where these plans compromise.
It also sheds snow almost as fast as it falls, and the roof carries a 95 pound per square foot snow rating on top of that.
The balcony
The master balcony sits in the glazed gable end, so the upper bedroom looks out through the tall glass rather than a dormer window. On a 500 square foot cabin it is the feature that makes the building feel like somewhere you chose rather than somewhere you settled for.
Foundation
Drawn for a slab or a footing wall, both detailed in the set.
What you get

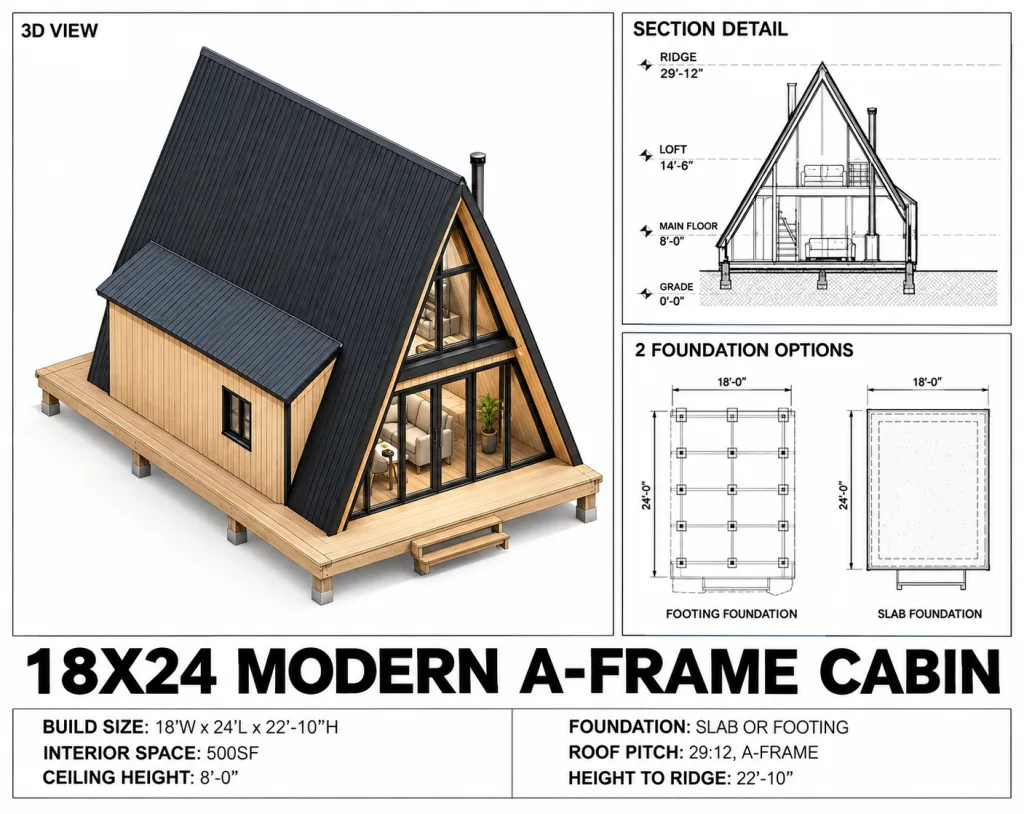

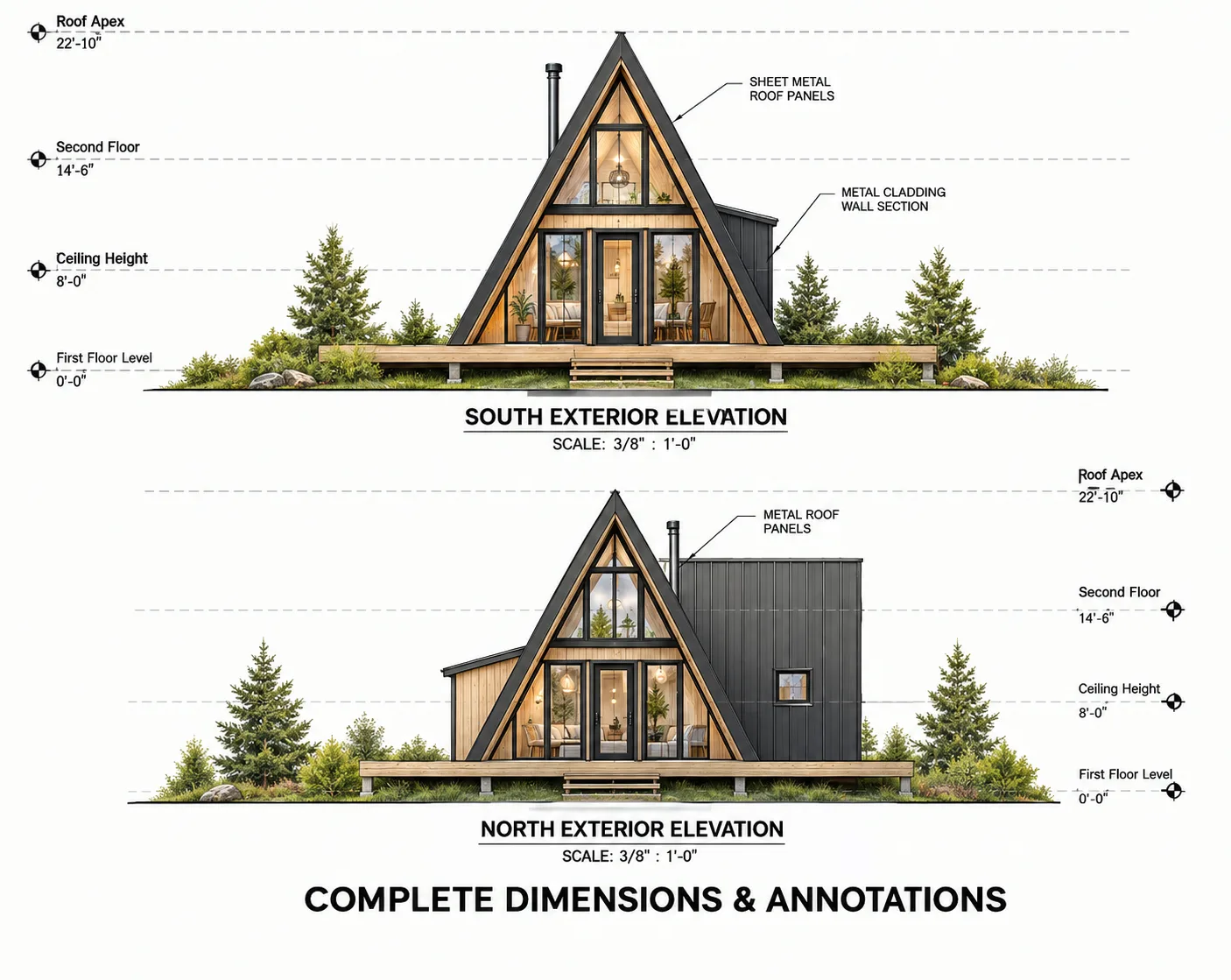

The download is a full construction set: dimensioned floor plans for each level, exterior elevations on all four sides, building sections and construction details, a foundation plan with floor, wall and roof framing layouts, an electrical layout, window and door schedules, and a roof plan with pitch and overhang dimensions. It arrives as a PDF once payment is confirmed.
Permits
Many jurisdictions exempt small structures below a certain floor area from a full permit, and many do not. The threshold varies by county, and in some places it changes the moment the building has plumbing in it. Check with your local building department before you start rather than after.
Other plans to compare
If these 18x24 a-frame cabin plans are not quite the right size, browse every design in A-Frame, or compare this one with Tiny A-Frame Cabin, 12×18 and Modern A-Frame Cabin, 18x24. You may also want to look at Traditional American Cabin, 20×26.
Common questions
Can I modify these 18x24 a-frame cabin plans?
Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.
How are the drawings supplied?
Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.
Are there limits on printing?
No. Print whatever your builder, your subcontractors and your permit submission need.
Rough build-cost guide
$75,000 - $100,000
A simple $150-$200 per sq ft × 500 sq ft. Real costs depend on your location, site and finishes. Read the cost guideFloor plans
100%

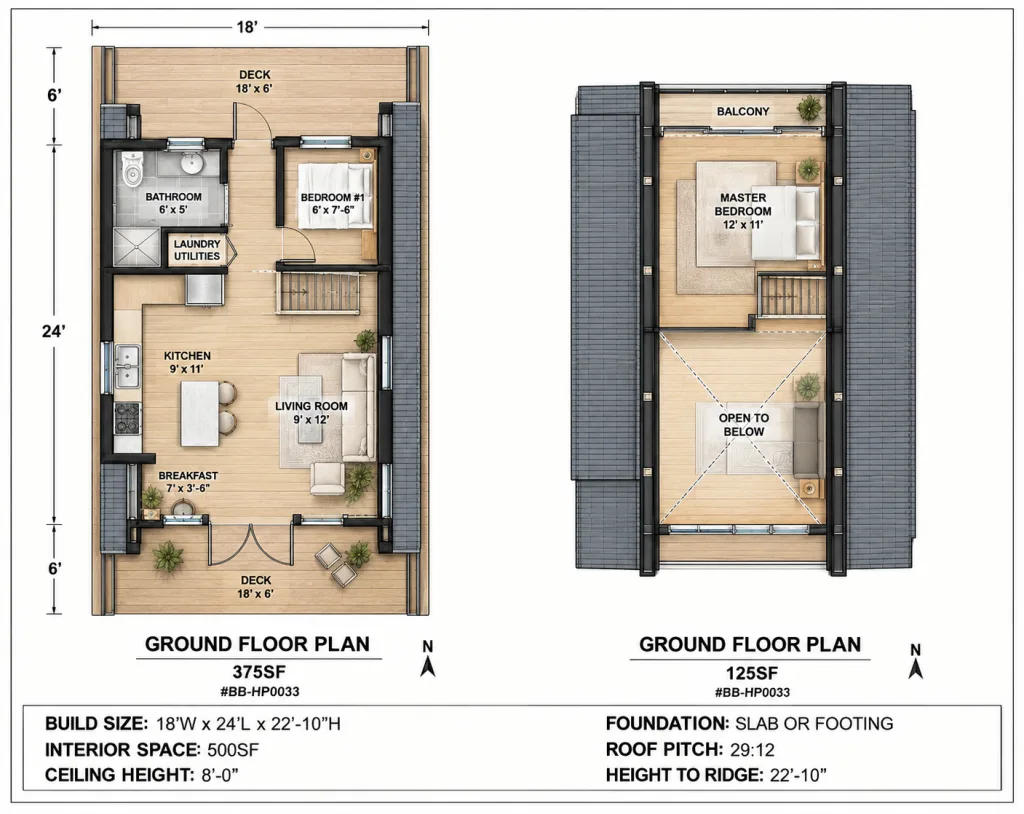

Preview image. Use + and − to zoom, then scroll to move around. The purchased PDF contains the full-size, dimensioned drawings.
