Cabin1 / 4
Exterior and interior renderings are illustrative. Furniture, landscaping and finishes are not part of the plan set unless listed.
Plan specifications
216Sq. ft
2Stories
12' 0"Width
18' 0"Depth
Skid or PostFoundation shown
About this plan

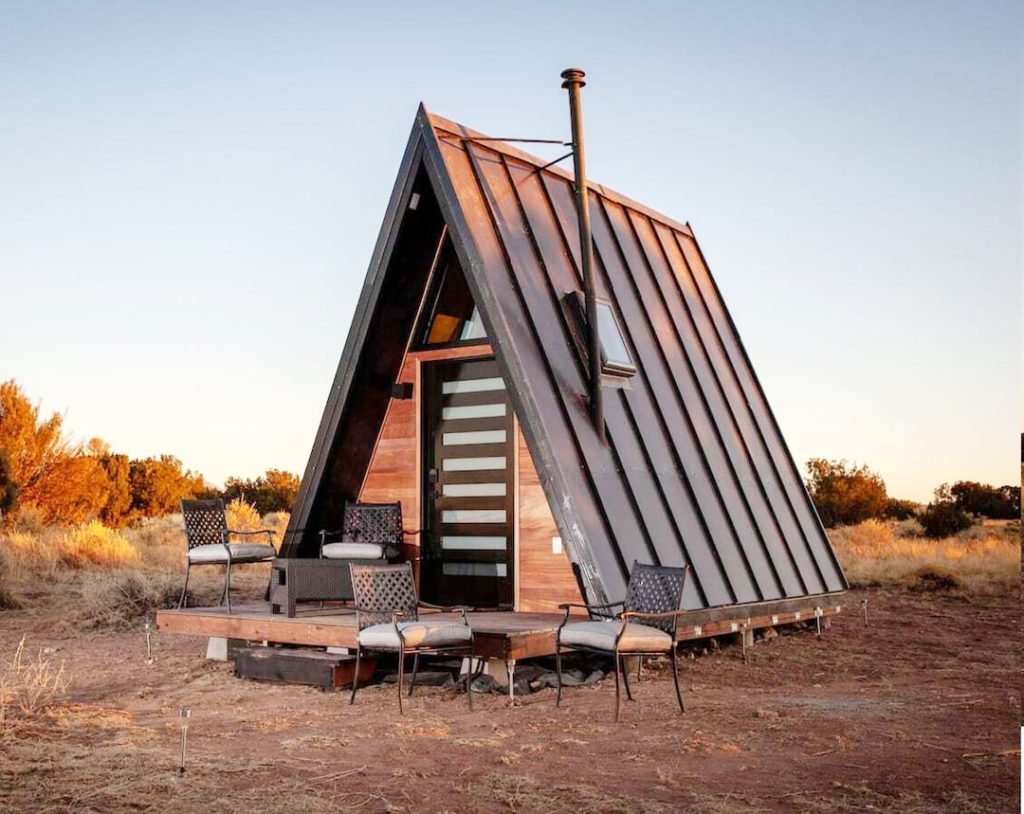

A 12 by 18 foot A-frame, 216 square feet, with a sleeping loft and a front porch. This is the smallest plan in the range and the one most likely to be built by the person who bought it. You receive these tiny a-frame cabin plans as a PDF plan set.
A very steep pitch

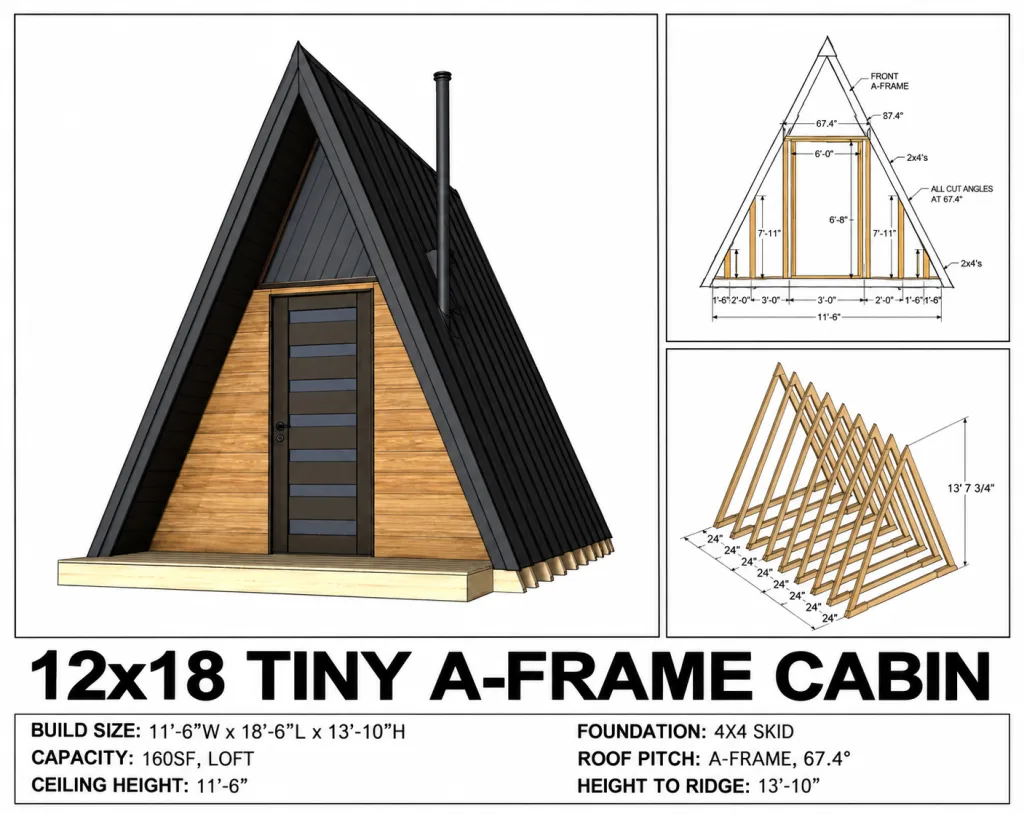

The A-frame angle is 67.4 degrees, which is steeper than most. That does two things: it sheds snow and rain almost immediately, and it buys standing headroom of 11 feet 6 inches inside a building only 12 feet wide, with the ridge kept to 13 feet 10 inches overall.
Steep also means the walls and the roof are the same surface, so there is simply less structure to build than a conventional cabin of the same floor area.
What is in it

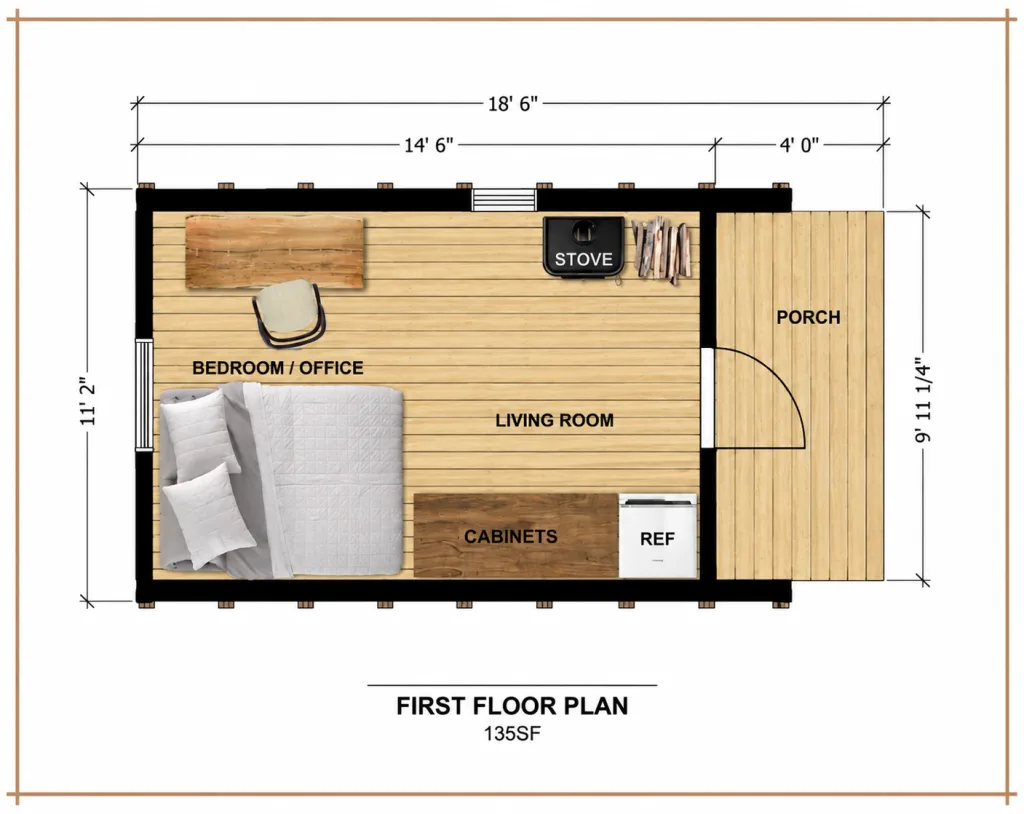

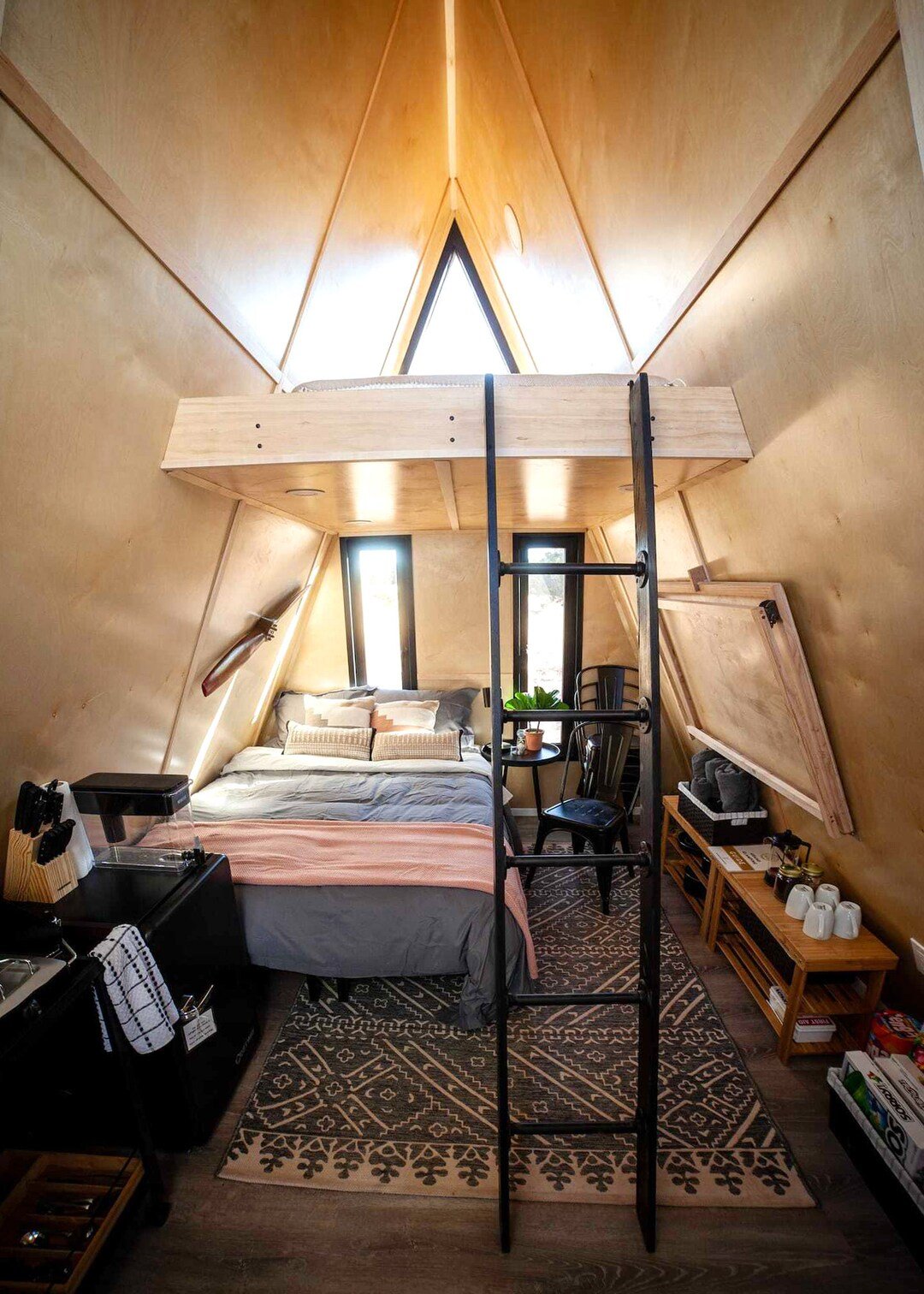

An open ground floor with a sleeping loft above, and a front porch under the gable overhang. There is no bathroom drawn in this plan, which is what keeps it in the simplest regulatory category in most places and the reason it can be built over a few weekends.
Foundation and cut details
Drawn for skids or posts, so there is no concrete to pour and no waiting for it to cure. Full cut details are included, meaning every piece of timber is listed at the length you need it.
What you get
A PDF plan set with dimensioned floor plans, exterior elevations, framing diagrams for floor, wall and roof, and full cut details.
Permits
Many jurisdictions exempt small structures below a certain floor area from a full permit, and many do not. The threshold varies by county, and in some places it changes the moment the building has plumbing in it. Check with your local building department before you start rather than after.
Other plans to compare
If these tiny a-frame cabin plans are not quite the right size, browse every design in A-Frame, or compare this one with Large Modern A-Frame Cabin, 36×58 and Modern A-Frame Cabin, 20x28. You may also want to look at Lazy Bear Cabin, 26×26.
Common questions
Can I modify these tiny a-frame cabin plans?
Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.
How do I receive the drawings?
Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.
How many copies can I print?
As many as the build needs, for your contractor, your subcontractors and your permit application.
Rough build-cost guide
$32,400 - $43,200
A simple $150-$200 per sq ft × 216 sq ft. Real costs depend on your location, site and finishes. Read the cost guideFloor plans
100%
Preview image. Use + and − to zoom, then scroll to move around. The purchased PDF contains the full-size, dimensioned drawings.
What you get with this plan
- Heated area
- 216 sq ft
- Overall size
- 12' 0" wide × 18' 0" deep
- Units
- Imperial (feet and inches)
- Foundation shown
- Skid or Post (other foundation types are a modification)
- PDF Set
- Printable PDF construction drawings
- CAD Files package
- Editable DWG drawings of the same set (+$150)
- Paper size
- Not yet listed for this plan
- Licence
- Single build. Licence terms
- Delivery
- Digital PDF plan set. Delivery policy
Sheet list
The sheet list for this plan has not been published yet. Email support@planbarn.com and we will send it before you buy.
Not included
- Site plan, and mechanical (HVAC), plumbing or structural engineering calculations unless listed in the sheet list above
- Engineer or architect stamps. Many areas require local review or a stamp before a permit is issued
- Changes for your site, climate or local code. We quote modifications free of charge
Your building department decides what is needed for a permit. Check local requirements before you build.
Plan features
67.4 Degree A-Frame Pitch
13 ft 10 in Ridge
Sleeping Loft
Front Porch
11 ft 6 in Ceiling
Full Cut Details
Questions about this plan
What is included?
The specifications, file formats and licence are listed under “What you get with this plan”. Where the sheet list is not yet published, email us and we will send it before you buy.
Can I modify the plan?
Often, yes. Ask for a free quote and we will confirm whether the change can be made for this plan; the written quote gives the price and an estimated completion time before you commit. Plan modifications
How is the plan delivered?
As a digital PDF plan set. Our delivery policy explains how and when files are made available. Delivery policy
Will it meet my local building code?
Codes are set locally. Your building department, and in many areas a local engineer or architect, must review the plans; some areas require a stamp. Budget for this before you build.
Can I get a refund?
Digital files cannot be returned. Where cancellation rights apply you can normally cancel within 14 days, unless you agreed for supply to begin immediately. If a file is faulty, incomplete or does not match this page, we repair or replace it, and refund you where that is not possible. Returns and Refunds Policy
Can I build it more than once?
The standard licence covers one build. Email us for a multi-build licence. Plan licence
Do I need an account?
No. Guest checkout is available; your receipt and download link go to the email address you enter.
