Cabin1 / 5
Exterior and interior renderings are illustrative. Furniture, landscaping and finishes are not part of the plan set unless listed.
Plan specifications
690Sq. ft
2Bedrooms
1Bathroom
2Stories
20' 0"Width
28' 0"Depth
Concrete SlabFoundation shown
About this plan
A 20 by 28 foot A-frame giving 690 square feet over two levels, with two bedrooms and one bathroom. The master takes the upper floor and opens onto a balcony in the gable. These 20x28 a-frame plans are delivered as a PDF plan set.

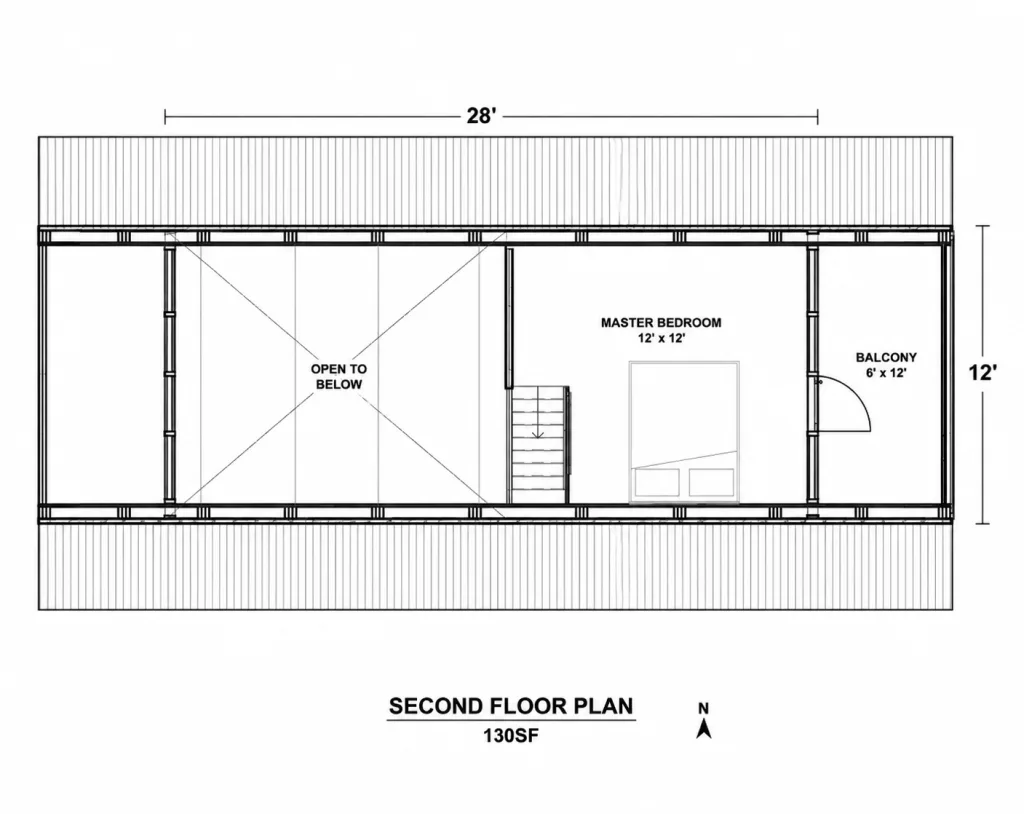

The upper master
Putting the master at the top of an A-frame is what the shape is for. The room gets the full height of the ridge, the balcony sits in the glazed gable, and the floor is open to the living space below, so the volume runs continuously from the ground floor up through the roof.
Open to below also means the fireplace downstairs heats both levels by convection, which on a cabin this size can be most of your heating.

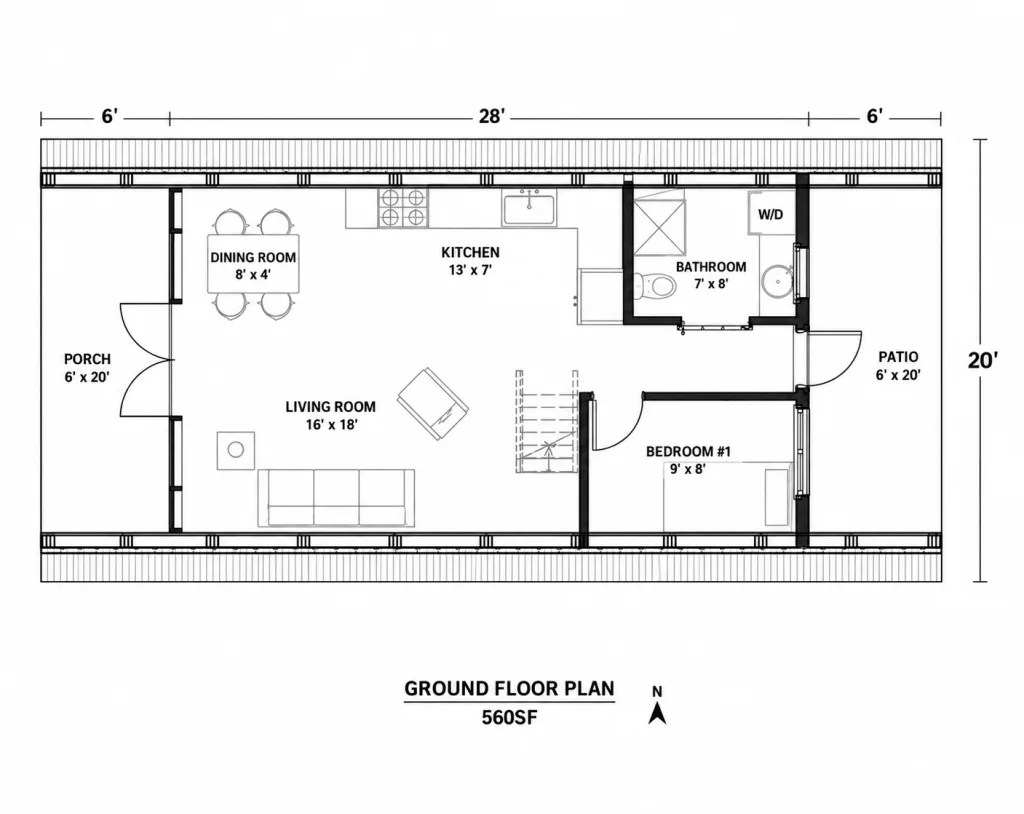

A separate dining room
An A-frame with a separate dining room is unusual. Most put a table at the end of the living space and leave it at that. Having a room for it means the main space is not permanently half-occupied by a table nobody is sitting at.
Ceilings and glazing
Eight foot ceilings are held on both levels, so neither floor is compromised by the roof pitch, and the windows are large throughout.
Foundation
Drawn for a concrete slab.
What you get
A complete construction set, supplied as a PDF:
- Dimensioned floor plans for each level, drawn to scale

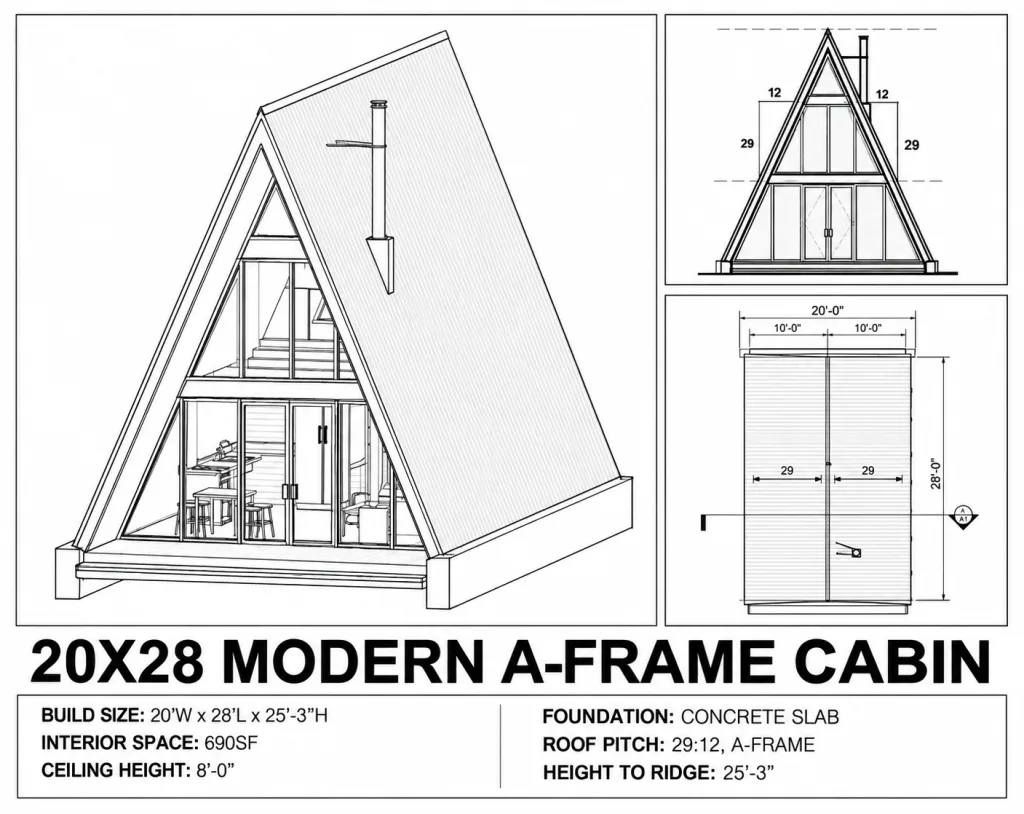

- Exterior elevations on all four sides

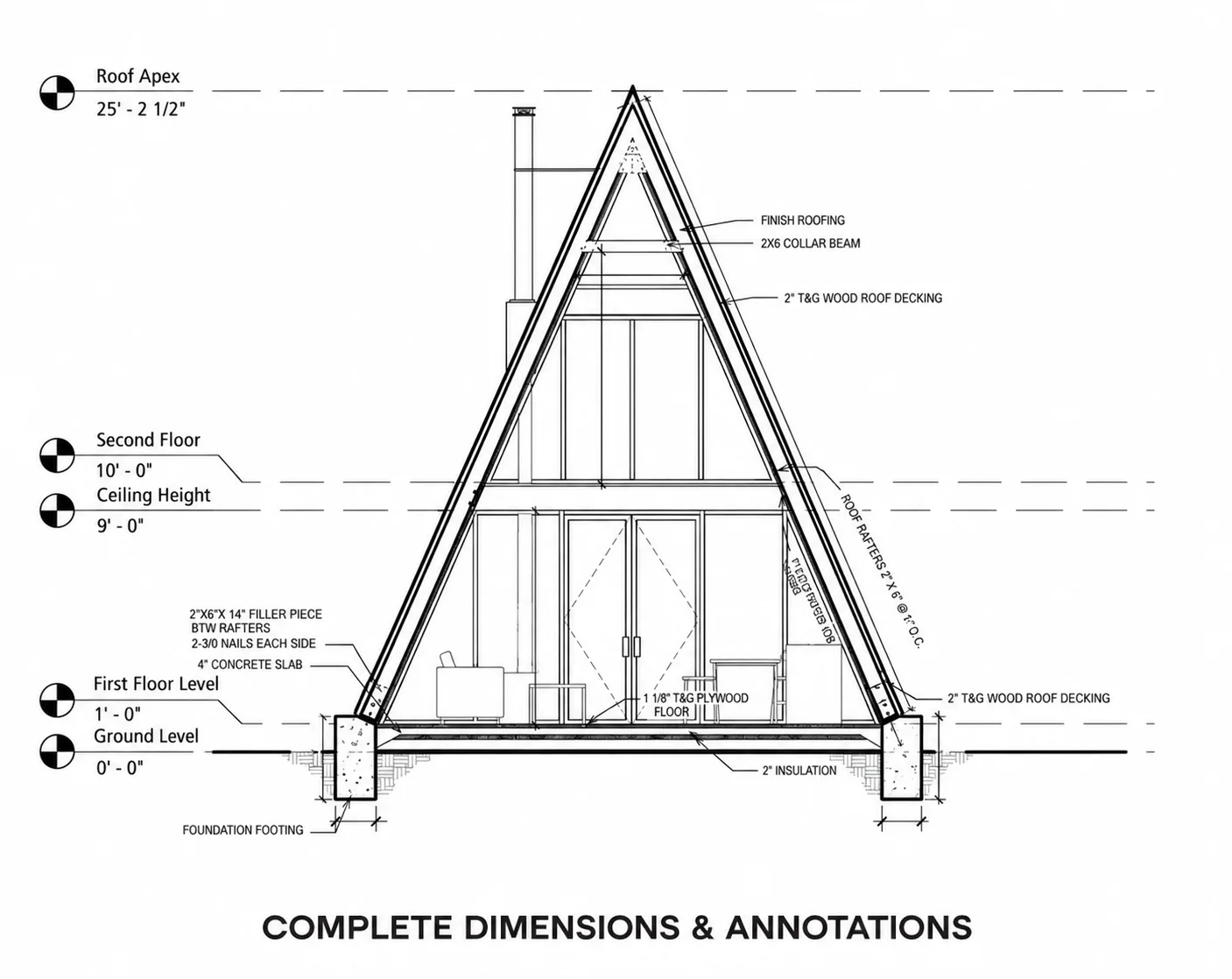

- Building sections and construction details
- Foundation plan with floor, wall and roof framing layouts
- Electrical layout
- Window and door schedules
- Roof plan with pitch and overhang dimensions
Before you build
Permit requirements depend on your location, site and proposed construction. Your building department determines which drawings, calculations and professional approvals are required, and local review may identify changes needed to the plans. Some departments ask for an engineer’s stamp or a foundation designed around your own soil report; arrange these with a local engineer.
Other plans to compare
If these 20x28 a-frame plans are not quite the right size, browse every design in A-Frame, or compare this one with Large Modern A-Frame Cabin, 36×58 and Modern A-Frame Cabin, 20x28.
Common questions
Can I modify these 20x28 a-frame plans?
Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.
How do I receive the drawings?
Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.
How many copies can I print?
As many as the build needs, for your contractor, your subcontractors and your permit application.
Rough build-cost guide
$103,500 - $138,000
A simple $150-$200 per sq ft × 690 sq ft. Real costs depend on your location, site and finishes. Read the cost guideFloor plans
100%
Preview image. Use + and − to zoom, then scroll to move around. The purchased PDF contains the full-size, dimensioned drawings.
What you get with this plan
- Heated area
- 690 sq ft
- Overall size
- 20' 0" wide × 28' 0" deep
- Units
- Imperial (feet and inches)
- Foundation shown
- Concrete Slab (other foundation types are a modification)
- PDF Set
- Printable PDF construction drawings
- CAD Files package
- Editable DWG drawings of the same set (+$150)
- Paper size
- Not yet listed for this plan
- Licence
- Single build. Licence terms
- Delivery
- Digital PDF plan set. Delivery policy
Sheet list
The sheet list for this plan has not been published yet. Email support@planbarn.com and we will send it before you buy.
Not included
- Site plan, and mechanical (HVAC), plumbing or structural engineering calculations unless listed in the sheet list above
- Engineer or architect stamps. Many areas require local review or a stamp before a permit is issued
- Changes for your site, climate or local code. We quote modifications free of charge
Your building department decides what is needed for a permit. Check local requirements before you build.
Plan features
Upper Master with Balcony
Open to Below
Fireplace
Separate Dining Room
8 ft Ceilings Both Levels
Large Windows
Questions about this plan
What is included?
The specifications, file formats and licence are listed under “What you get with this plan”. Where the sheet list is not yet published, email us and we will send it before you buy.
Can I modify the plan?
Often, yes. Ask for a free quote and we will confirm whether the change can be made for this plan; the written quote gives the price and an estimated completion time before you commit. Plan modifications
How is the plan delivered?
As a digital PDF plan set. Our delivery policy explains how and when files are made available. Delivery policy
Will it meet my local building code?
Codes are set locally. Your building department, and in many areas a local engineer or architect, must review the plans; some areas require a stamp. Budget for this before you build.
Can I get a refund?
Digital files cannot be returned. Where cancellation rights apply you can normally cancel within 14 days, unless you agreed for supply to begin immediately. If a file is faulty, incomplete or does not match this page, we repair or replace it, and refund you where that is not possible. Returns and Refunds Policy
Can I build it more than once?
The standard licence covers one build. Email us for a multi-build licence. Plan licence
Do I need an account?
No. Guest checkout is available; your receipt and download link go to the email address you enter.
