Plan specifications
528Sq. ft
2-carGarage
1Story
24' 0"Width
22' 0"Depth

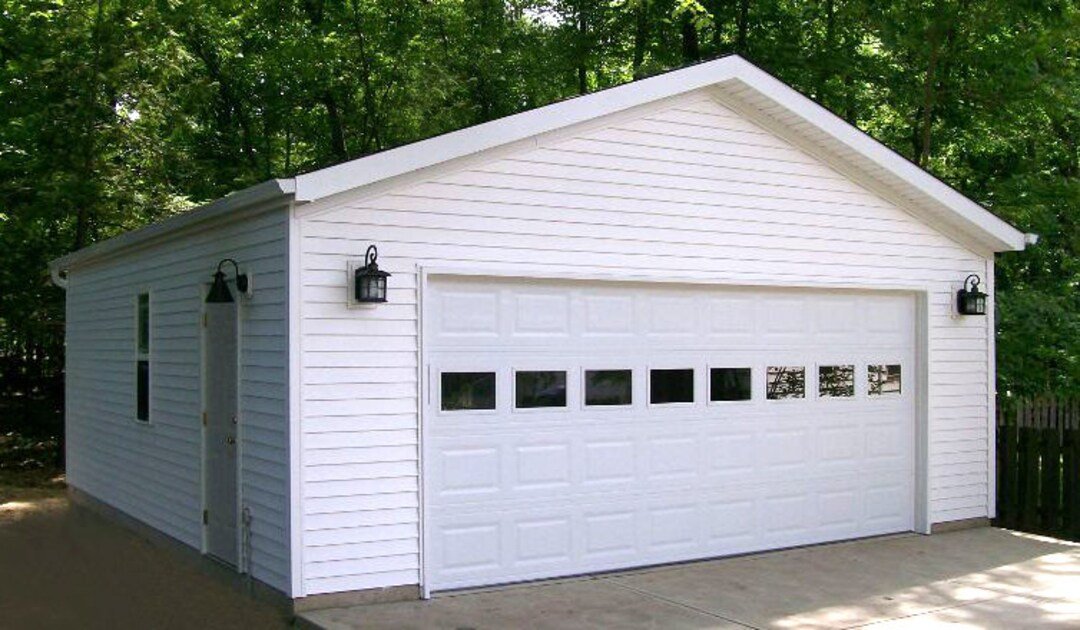

About this plan
A detached two-car garage, 24 by 22 feet, 528 square feet on a single level. No loft, no apartment, no complication. A place to put two vehicles and the things that go with them. You receive these detached garage plans as a PDF plan set.
The door opening
The opening is 16 feet 3 inches wide. That extra three inches over a nominal sixteen foot double door is not accidental: it is the margin that lets two vehicles sit side by side without the wing mirrors becoming a daily consideration, and it accommodates a standard 16 foot door with proper jamb clearance.
Why detached
A detached garage keeps exhaust fumes, cold air and engine noise out of the house entirely, which an attached garage never quite manages. It also sits wherever the lot suits rather than wherever the house wall allows, and in many jurisdictions it falls under simpler setback rules than an extension would.
Drawn to build from
Every dimension is on the drawings and the structure is drawn to standard code requirements. This is a straightforward building, and the plan is priced to match, but it is a proper construction set rather than a sketch.
What you get

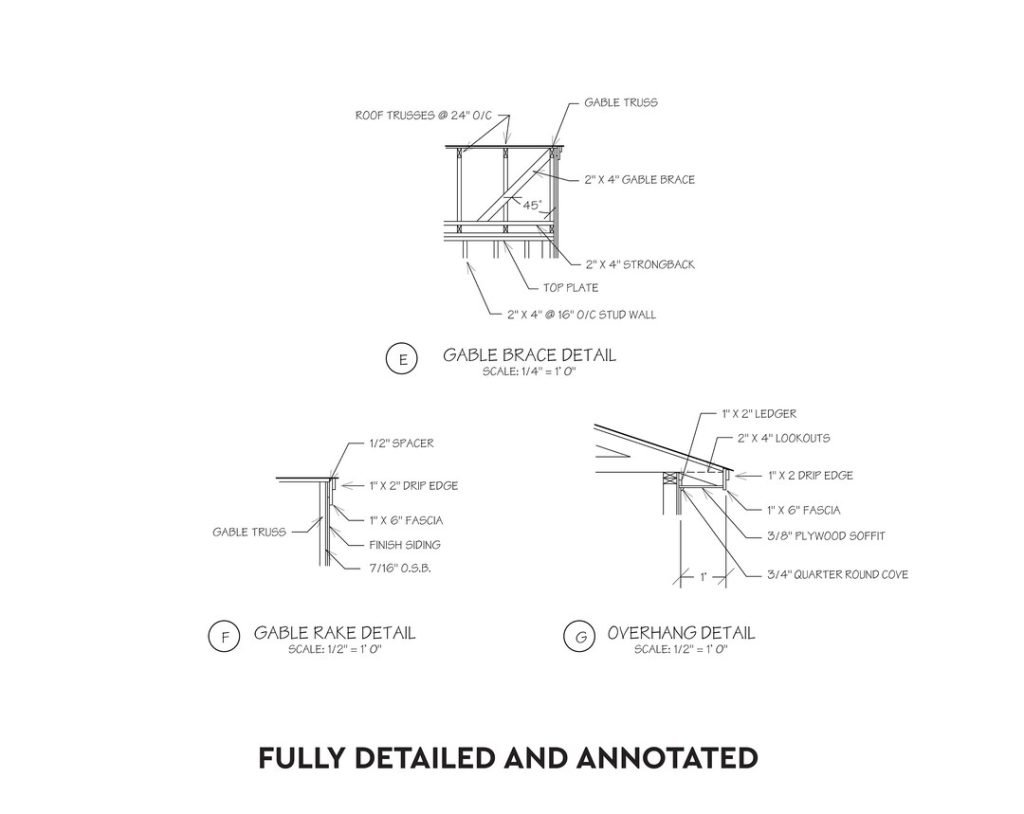

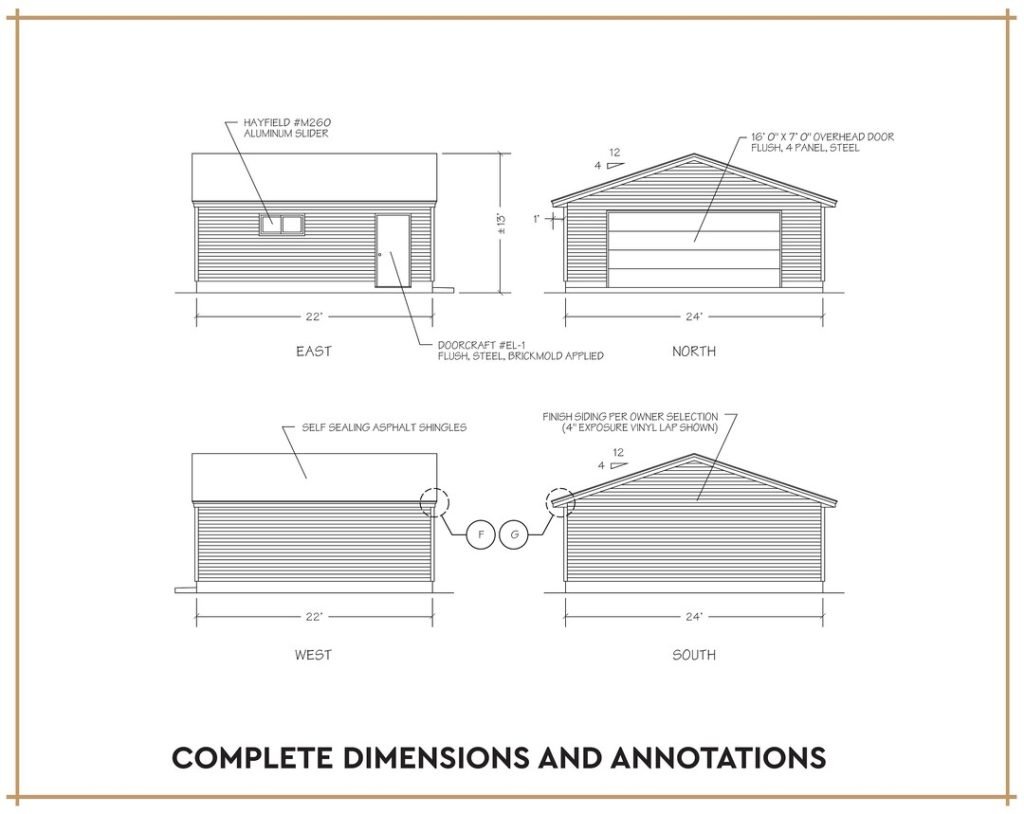

A PDF construction set: dimensioned floor plans, exterior elevations on all four sides, building sections and construction details, the foundation plan, and framing layouts for floor, wall and roof.
Before you build
Permit requirements depend on your location, site and proposed construction. Your building department determines which drawings, calculations and professional approvals are required, and local review may identify changes needed to the plans. Some departments ask for an engineer’s stamp or a foundation designed around your own soil report; arrange these with a local engineer.
Other plans to compare
If these detached garage plans are not quite the right size, browse every design in Garage & ADU, or compare this one with ADU Garage Loft, 22×24 and Two-Car ADU Garage Loft, 28×28.
Common questions
Can I modify these detached garage plans?
Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.
How do I receive the drawings?
Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.
How many copies can I print?
As many as the build needs, for your contractor, your subcontractors and your permit application.
Rough build-cost guide
$79,200 - $105,600
A simple $150-$200 per sq ft × 528 sq ft. Real costs depend on your location, site and finishes. Read the cost guideFloor plans
100%
Preview image. Use + and − to zoom, then scroll to move around. The purchased PDF contains the full-size, dimensioned drawings.
What you get with this plan
- Heated area
- 528 sq ft
- Overall size
- 24' 0" wide × 22' 0" deep
- Units
- Imperial (feet and inches)
- PDF Set
- Printable PDF construction drawings
- CAD Files package
- Editable DWG drawings of the same set (+$150)
- Paper size
- Not yet listed for this plan
- Licence
- Single build. Licence terms
- Delivery
- Digital PDF plan set. Delivery policy
Sheet list
The sheet list for this plan has not been published yet. Email support@planbarn.com and we will send it before you buy.
Not included
- Site plan, and mechanical (HVAC), plumbing or structural engineering calculations unless listed in the sheet list above
- Engineer or architect stamps. Many areas require local review or a stamp before a permit is issued
- Changes for your site, climate or local code. We quote modifications free of charge
Your building department decides what is needed for a permit. Check local requirements before you build.
