About this plan

A 22 by 24 foot garage with a one-bedroom apartment above, 528 square feet upstairs, drawn on a concrete slab with a 6 in 12 roof pitch. These adu garage plans come as a complete PDF set.

Built to stay under a height limit

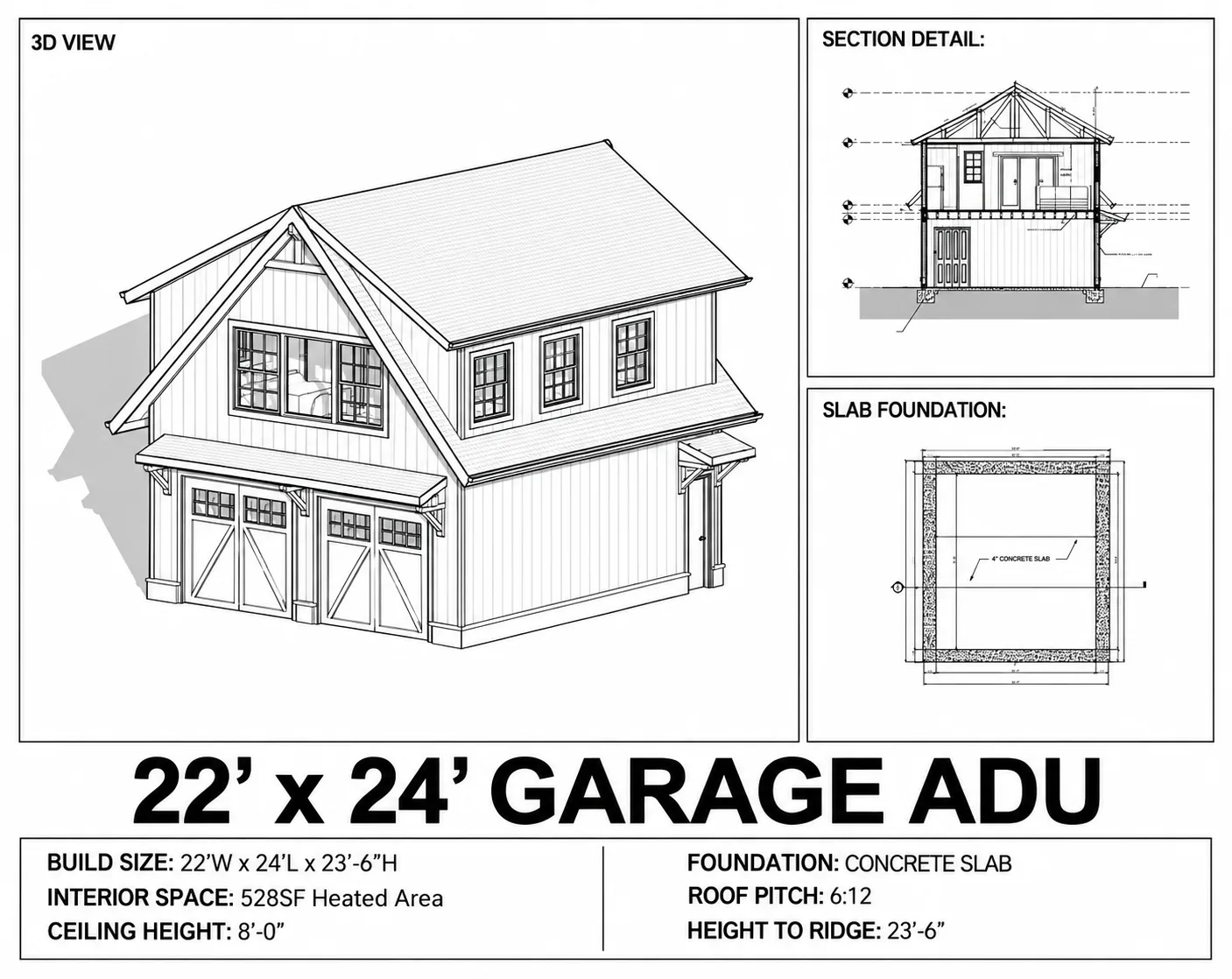

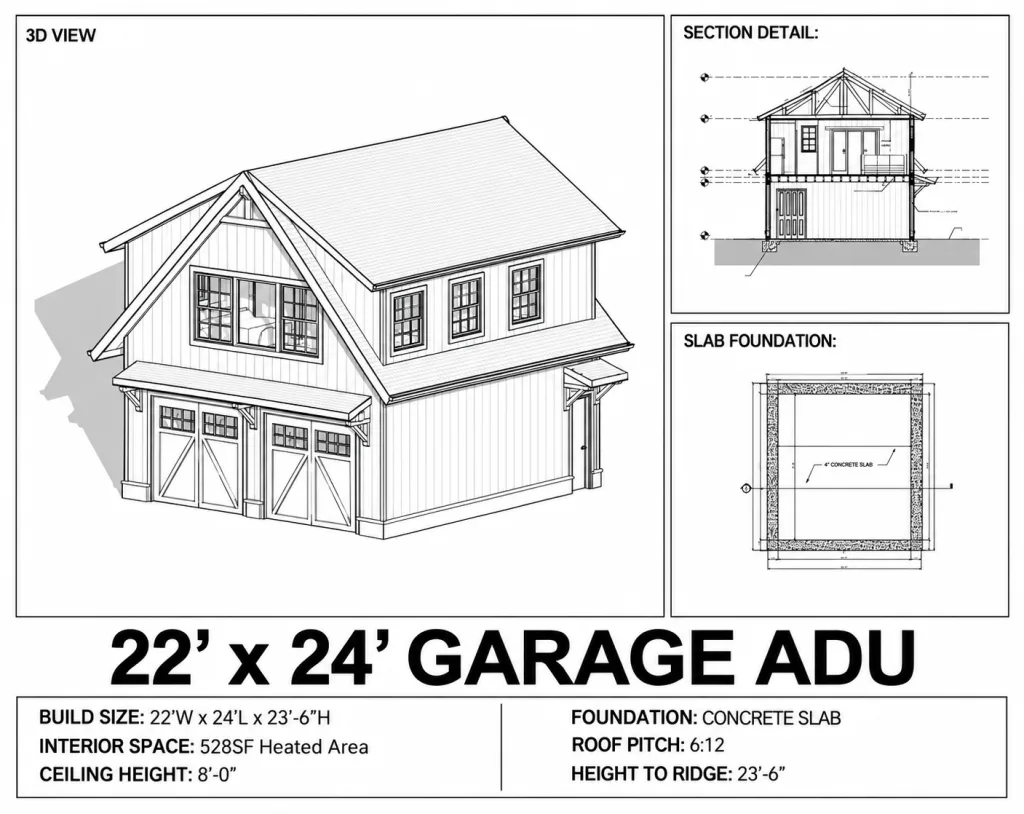

The 6 in 12 pitch is the defining choice. It is shallower than the other garage apartments in the range, which keeps the ridge at 23 feet 6 inches while still giving eight foot ceilings upstairs. If your lot has a height restriction that rules out a steeper accessory building, this is the plan that fits under it.

The utility closet

There is a utility closet on the ground floor. Putting the water heater, the panel and the mechanical plant downstairs means none of the 528 square feet upstairs is given over to equipment, and servicing it never involves going through the apartment. Small detail, disproportionate effect on how the unit lives.

Upstairs and down

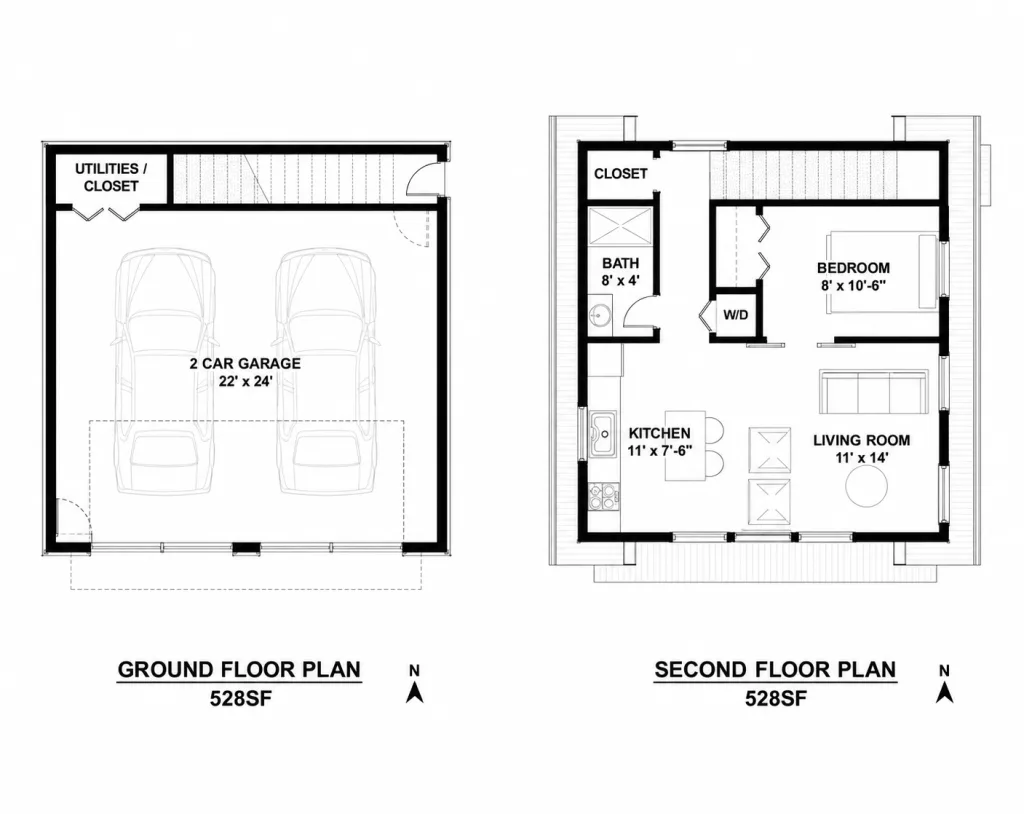

The apartment holds a bedroom, a bathroom, and kitchen and living space. Below, two seven by eight foot doors take two vehicles.

What you get

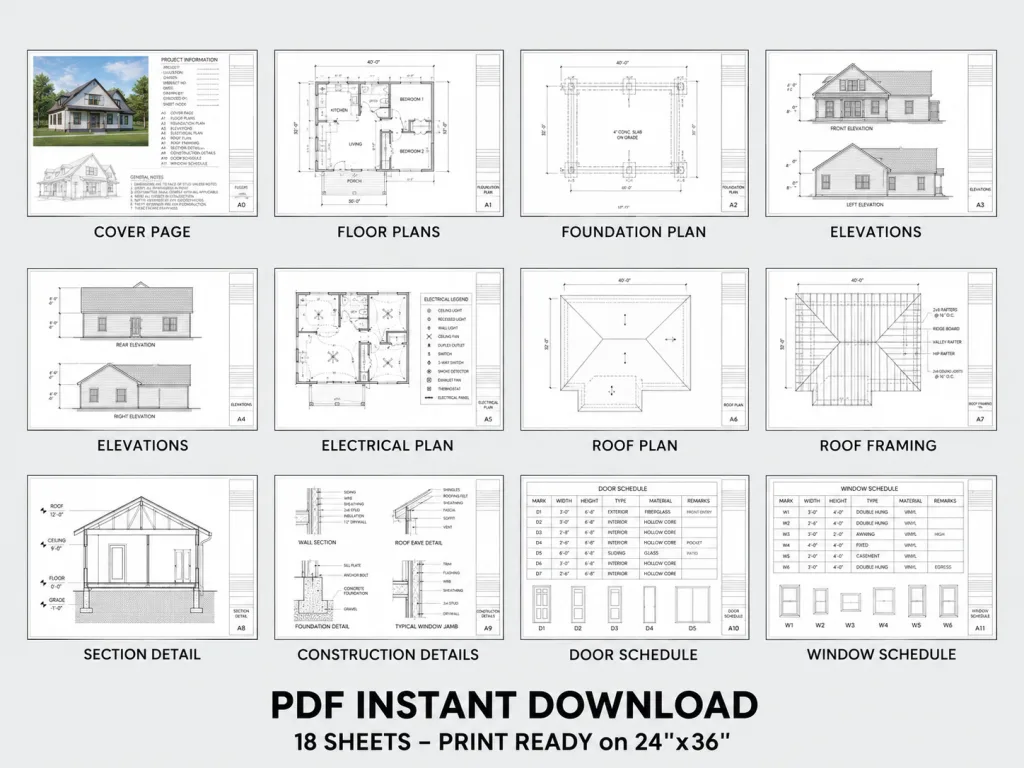

A complete construction set, supplied as a PDF:

• Dimensioned floor plans for each level, drawn to scale
• Exterior elevations on all four sides

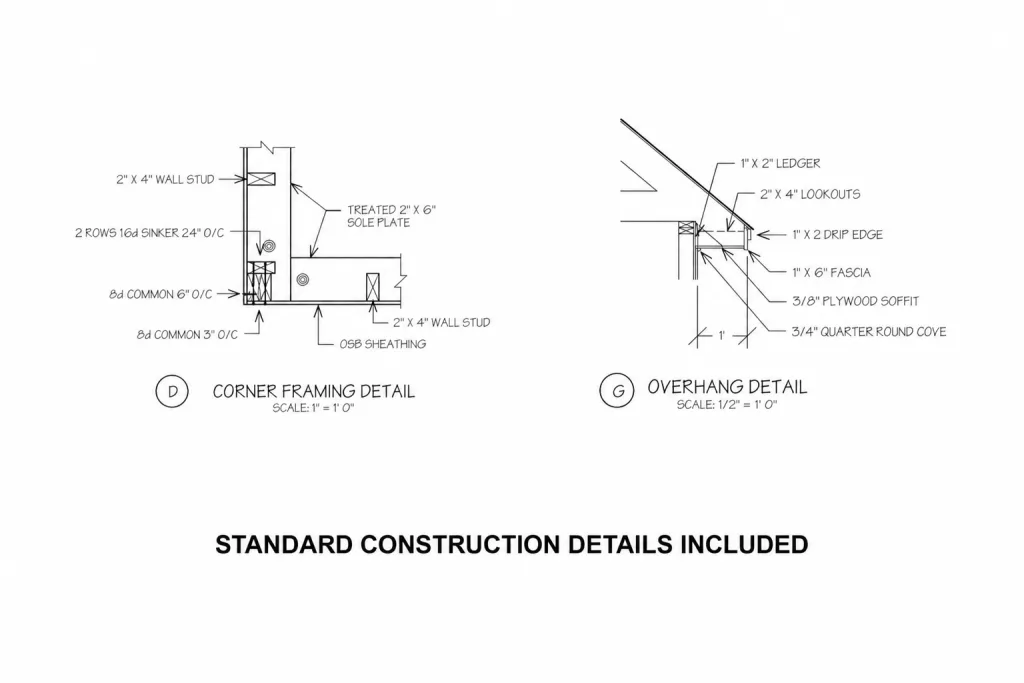

• Building sections and construction details
• Foundation plan with floor, wall and roof framing layouts
• Electrical layout
• Window and door schedules
• Roof plan with pitch and overhang dimensions
