About this plan

A 24 by 24 foot two-car garage with a one-bedroom apartment above, 576 square feet, drawn with a single wide door opening rather than two. The 24x24 garage apartment plans arrive as a PDF plan set.

One door, sixteen feet wide

The opening is 16 feet wide by 7 feet high, taking one wide door instead of a pair. That is worth choosing deliberately. A single wide door has no centre post, so you can reverse a trailer, a boat or a wide vehicle in at an angle without lining it up first. It also costs less than two doors and leaves one opener to maintain instead of two.

The trade is that if the door fails, both bays are out of action. On a domestic garage that rarely matters.

Upstairs

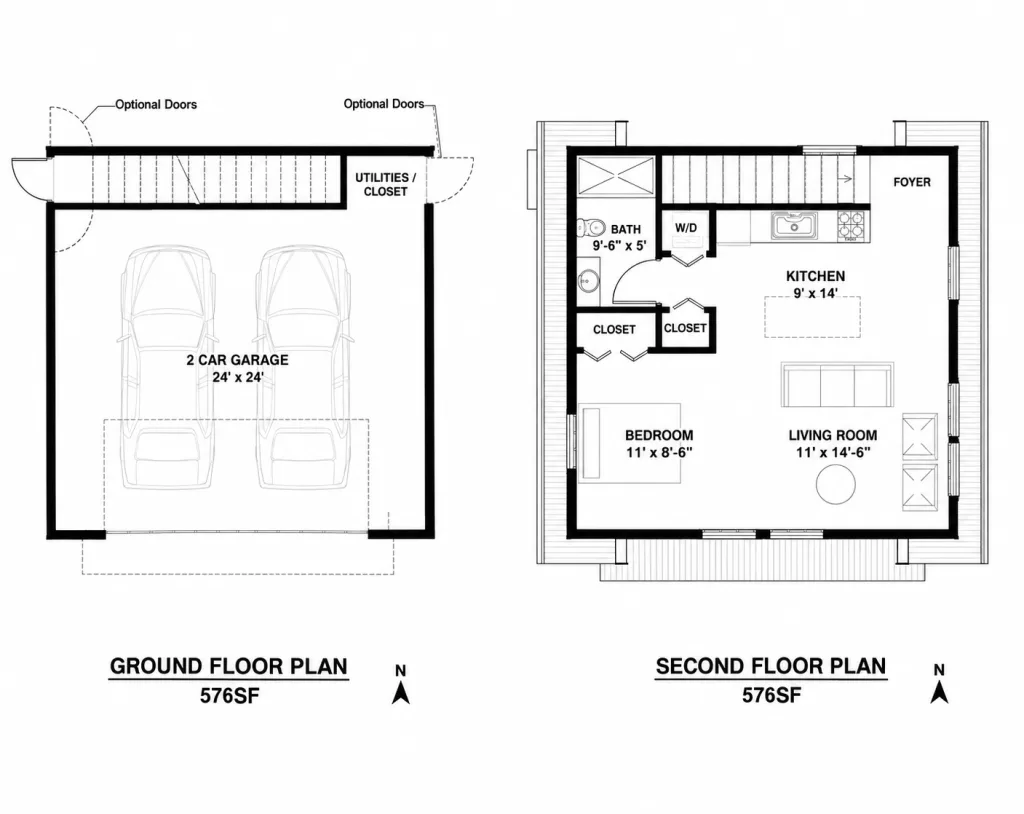

576 square feet holds a one-bedroom apartment. At 24 feet square the floor plate is generous enough for a proper living area alongside the bedroom and bathroom, rather than the kitchen being pushed against a wall of the living room.

Modifying it

Editable CAD files are available separately. If you plan to change the layout, buying the CAD at the outset is cheaper than paying someone to retrace the PDF later.

What you get

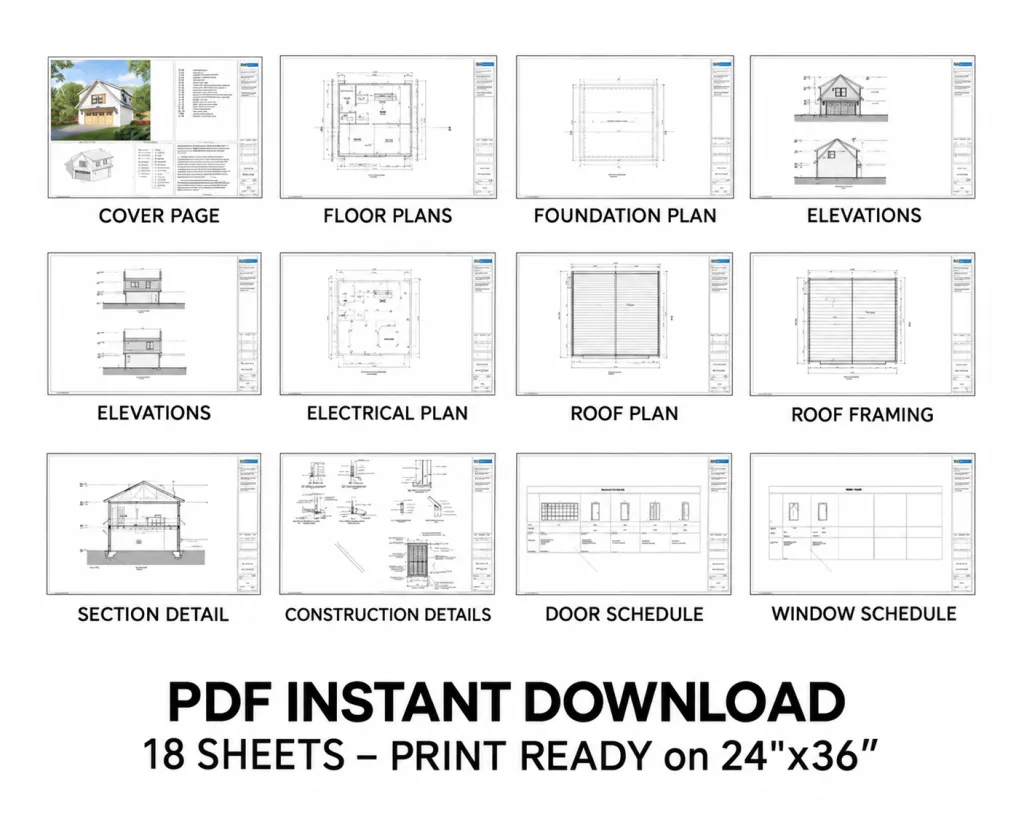

A complete construction set, supplied as a PDF:

• Dimensioned floor plans for each level, drawn to scale
• Exterior elevations on all four sides

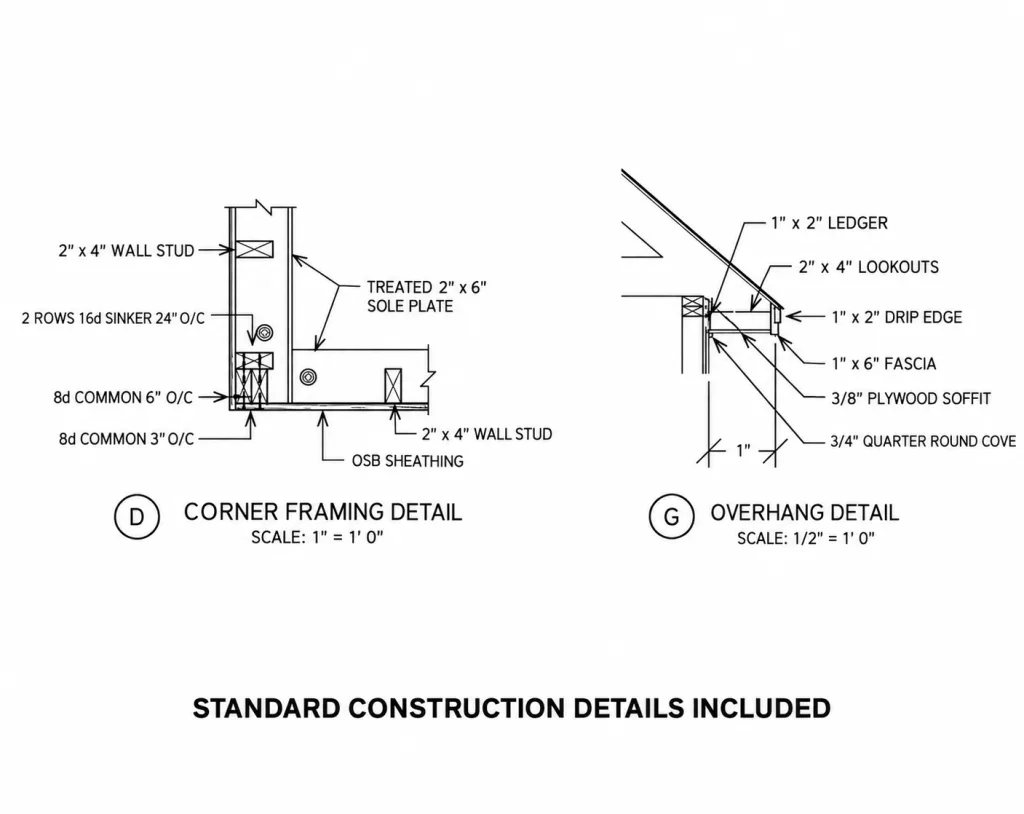

• Building sections and construction details
• Foundation plan with floor, wall and roof framing layouts
• Electrical layout
• Window and door schedules
• Roof plan with pitch and overhang dimensions

Before you build

Accessory dwelling rules vary more than almost any other part of the residential code. Some jurisdictions permit them outright, some cap the floor area, some require a separate utility connection or an extra parking space. Check what your county allows before you order materials. The rules have been loosening across much of the country, so if you were told no a few years ago it is worth asking again.

Code requirements are set locally. The International Code Council publishes the model codes most United States jurisdictions adopt.

Other plans to compare

If these 24x24 garage apartment plans are not quite the right size, browse every design in Garage & ADU, or compare this one with ADU Garage Loft, 22×24 and Detached Two-Car Garage, 24×22.

Common questions

Can I modify these 24x24 garage apartment plans?

Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.

How do I get the files?

Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.

Can my builder have a copy?

Yes. Print as many sets as your contractor, your trades and your building department require.
