About this plan

These 67x53 barn house plans come as a complete PDF set. Blackwood is a barn house of 3,073 square feet on a 67 by 53 foot footprint, four bedrooms and five and a half bathrooms across two levels. The trusses vault to 26 and a half feet, which is the number that defines the whole interior.

The great room

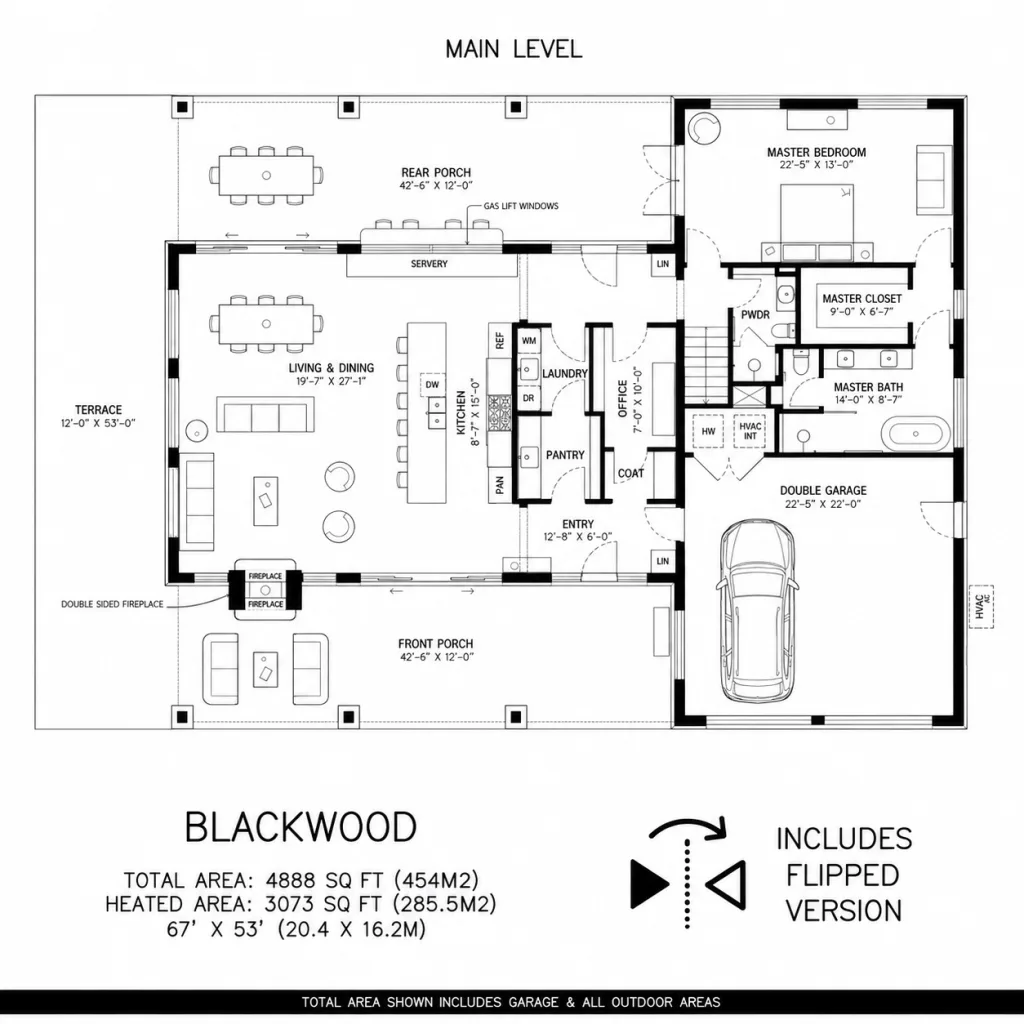

A 26 foot vault is not a decorative gesture. It changes the acoustics, the light and the way the upper level relates to the floor below, and it is why this plan puts the kitchen island at 15 feet long: a normal island looks lost under that volume.

A double-sided fireplace divides the living area without closing it off, so you get two distinct spaces out of one room and fire visible from both.

Sleeping and working

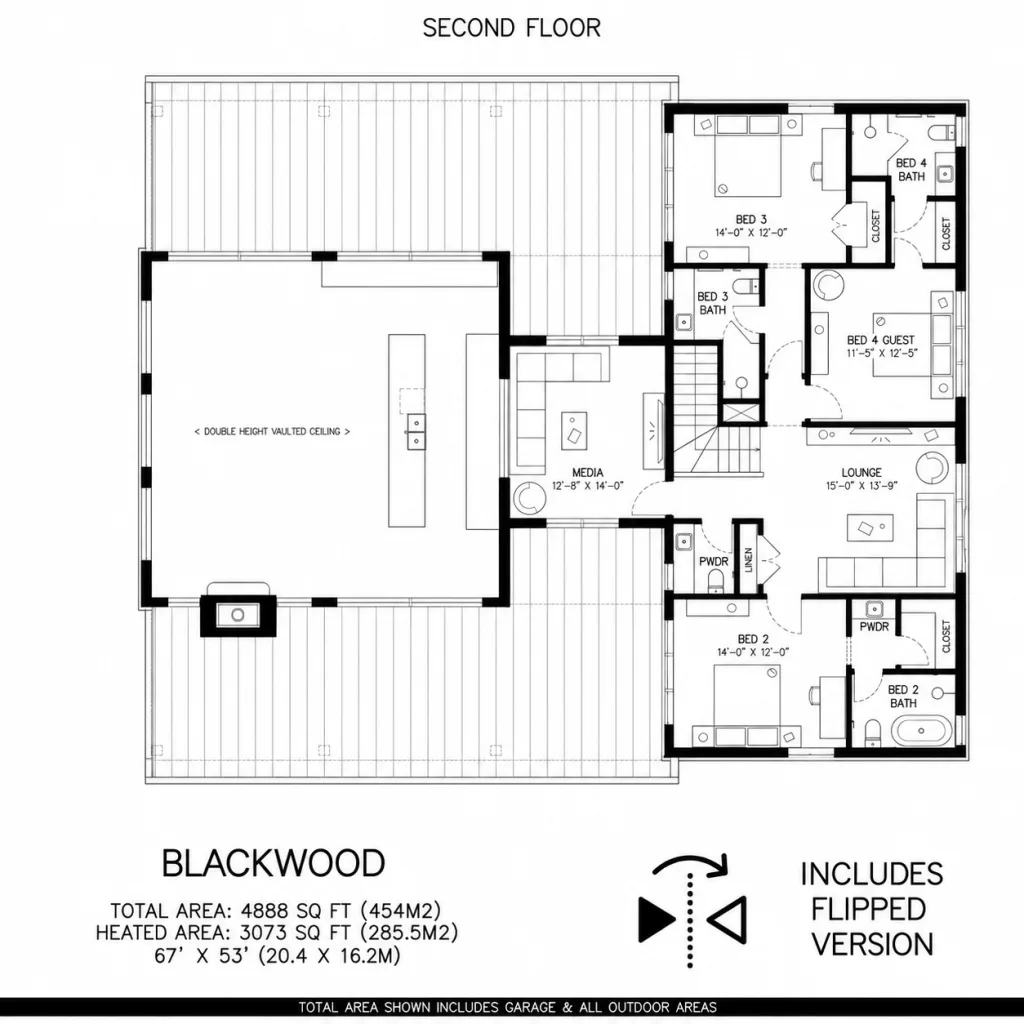

The primary bedroom is on the main level, so the everyday routine happens without stairs and the upper floor belongs to everyone else. Five and a half bathrooms across four bedrooms means every bedroom is effectively ensuite with a half bathroom left over for guests.

A separate home office is drawn in rather than carved out of a bedroom.

Outside and structure

Covered porches run front and rear, and there is a two-car garage. Drawn for a slab foundation with footing details in the set.

What you get

A complete construction set, supplied as a PDF:

• Dimensioned floor plans for each level, drawn to scale
• Exterior elevations on all four sides
• Building sections and construction details
• Foundation plan with floor, wall and roof framing layouts
• Electrical layout
• Window and door schedules
• Roof plan with pitch and overhang dimensions

Before you build

Permit requirements depend on your location, site and proposed construction. Your building department determines which drawings, calculations and professional approvals are required, and local review may identify changes needed to the plans. Some departments ask for an engineer’s stamp or a foundation designed around your own soil report; arrange these with a local engineer. Print as many copies as your builder and your permit application require.

Other plans to compare

If these 67x53 barn house plans are not quite the right size, browse every design in Barndominium, or compare this one with Cypress Barndominium and Modern Barn House, 20×32.

Common questions

Can I modify these 67x53 barn house plans?

Often, yes. Common requests include moving a wall, mirroring the layout or adapting the foundation to your site, but what is possible depends on the plan, so ask for a free quote before you buy. Editable CAD files are not available for every plan; email us to confirm availability for this one.

How do I receive the drawings?

Plans are supplied digitally as PDF files. Our Shipping and Delivery Policy explains how and when files are made available.

How many copies can I print?

As many as the build needs, for your contractor, your subcontractors and your permit application.
