Windsor Estate
Plan Specifications
Floor Plans

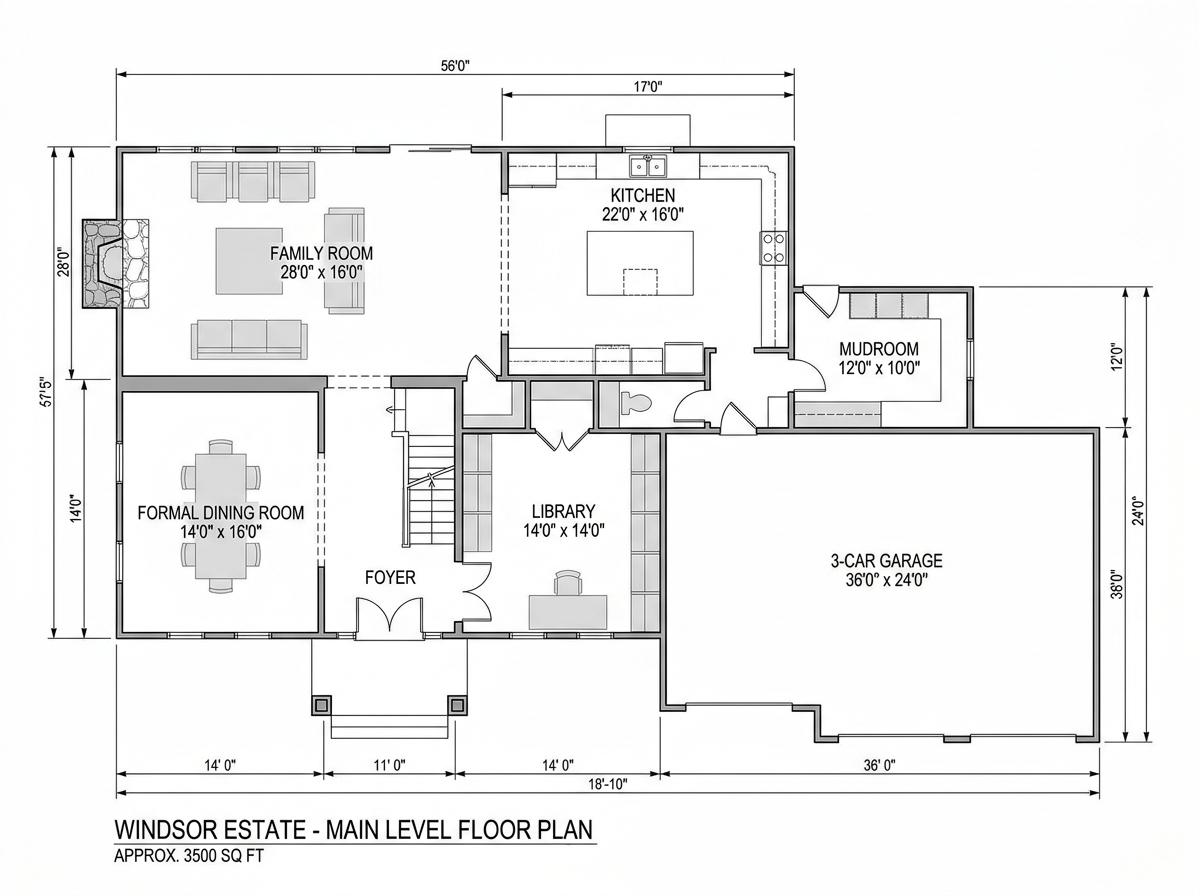

Click the drawing to open it full size. Fully dimensioned PDFs are included in your plan set download.
What's Included in Your Plan Set
Every plan purchase includes everything you need to build your dream home
Construction Drawings
Complete set of detailed architectural plans including floor plans, elevations, sections, and details.
- Foundation plan
- Floor plans for all levels
- Exterior elevations (all sides)
- Building sections
- Construction details
Structural Plans
Engineering specifications for framing, load-bearing walls, and structural support.
- Roof framing plan
- Floor framing plan
- Beam specifications
- Column schedules
- Load calculations
Electrical Layout
Complete electrical plan showing outlets, switches, fixtures, and panel locations.
- Outlet locations
- Switch layouts
- Lighting fixtures
- Panel box location
- Dedicated circuits
Foundation Options
Multiple foundation types included to suit your building site requirements.
- Slab foundation
- Crawl space option
- Basement option
- Pier foundation
- Site-specific adaptations
Plan Features
Frequently Asked Questions
Everything you need to know about our house plans
What's included in the house plan package?
Every set includes the cover sheet, foundation plan, dimensioned floor plans, exterior elevations, building sections, roof plan, and electrical layouts as PDF. Package upgrades add printed sets or editable CAD files.
Can I modify the house plans?
Yes. Modification quotes are free and most changes such as mirroring, resizing rooms, or adding a garage bay are quoted within 2 business days.
How long does delivery take?
Digital plans are delivered instantly at checkout. Printed sets ship within 24-48 hours.
Are these plans suitable for my local building codes?
Plans are drawn to the International Residential Code. Some jurisdictions require local engineering review or stamps; your building department can confirm what applies.
What is your return policy?
Every plan carries a 90-day money-back guarantee. If the plan is not right for your project, contact us for a full refund.
Do you provide construction cost estimates?
A cost-to-build report can be ordered for any plan and reflects your local material and labor costs.
Can I build the same plan multiple times?
A purchase licenses one build. Contact us for multi-build pricing.
Do you offer mirror-reverse plans?
Yes, mirrored plan sets are available at no additional cost. Just mention it when ordering or in the modification request.
From Plan to Home in 5 Steps
Why Homeowners & Builders Trust Planbarn
We work with you until you are completely satisfied with your plan purchase.
Professional email support for your floor plan after purchase.
Need changes? Our design team can customize the plan to fit your needs.
Designed to help contractors and builders build with confidence.
Editable and printable professional plan files.
Created using U.S.-style construction standards and layouts.
Used by homeowners and builders across the United States.
Download your plan files digitally and start building faster.
